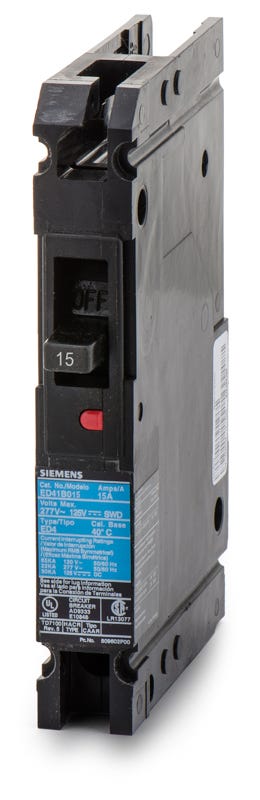

Siemens ED41B015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Siemens
ED41B015
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED41B015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED41B015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED41B015 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B015 |
| Series | ED4 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED41B015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B015-R |
| Series | ED4 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
Description
Delivering high-performance circuit protection, the Siemens ED41B015 is a 1-pole, 15A molded case circuit breaker. Belonging to the Sentron ED4 frame series, it provides dependable thermal-magnetic trip functions for commercial and industrial facilities. This breaker mounts into Siemens Sentron P1, P2, and P3 panelboards. While it has been succeeded by the 3VA5 series, it remains a critical replacement component. It boasts a 65kAIC rating at 120VAC and 22kAIC at 277VAC.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED41B015 |
| Series | ED4 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhich panelboards accept the ED41B015 circuit breaker?
This bolt-on breaker is designed for installation in Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
Can the Siemens ED41B015 replace legacy I-T-E breakers?
Yes, Siemens acquired I-T-E, and the current ED41B015 is a direct replacement for the older I-T-E branded ED41B015 molded case circuit breaker.
Is the ED41B015 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration circuits that require a 15A overcurrent device.
Can I terminate aluminum conductors on the ED41B015?
Yes, the standard factory lugs are dual-rated for copper and aluminum. They accept 14 to 10 AWG copper or 12 to 10 AWG aluminum wire.
What is the maximum DC voltage rating for this breaker?
The ED41B015 is rated for up to 125VDC, delivering a 30kAIC interrupting rating for direct current applications.
Does the ED41B015 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker with fixed long-time and instantaneous trip functions. It does not provide GFCI or AFCI protection.
