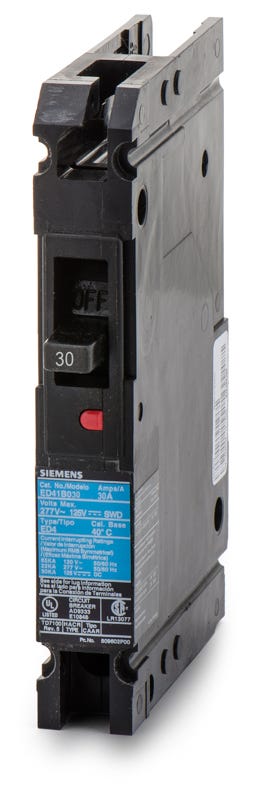

Siemens ED41B030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Siemens
ED41B030
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED41B030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED41B030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED41B030 - 30A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B030 |
| Series | ED4 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Sold out
Quantity
Siemens ED41B030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B030-R |
| Series | ED4 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Similar Items
25A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 30A single-pole component provides robust overcurrent protection. The unit features fixed thermal and magnetic trip elements within a compact footprint. Designed specifically for bolt-on mounting, it integrates seamlessly into Siemens P1, P2, and P3 panelboards. The device includes load side lugs and supports reverse feed configurations. With an interrupting capacity of 65kA at 120VAC, it handles demanding fault conditions easily.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED41B030 |
| Series | ED4 |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed |
Product FAQs
5 answersDoes the ED41B030 circuit breaker include both line and load side lugs?
No. By default, Siemens ED frame Sentron circuit breakers are factory supplied with load side lugs only. When mounted in a compatible panelboard, the breaker bolts directly to the bus, making line side lugs unnecessary. If your application requires line side wiring, you must purchase line lugs separately or order a custom breaker with an L-suffix.
Are additional hardware kits needed to install this breaker in a Siemens panelboard?
While the ED41B030 bolts directly to the bus in Siemens P1, P2, and P3 panelboards, you will typically need specific deadfront filler plates (such as catalog number DFFP1 or DFFPED01) depending on whether the unit is installed as a main or branch breaker. This ensures a proper seal and prevents access to live busbars.
What is the operating temperature calibration for this molded case circuit breaker?
Siemens ED frame circuit breakers, including the ED41B030, are factory calibrated for a 40 degrees C (104 degrees F) maximum ambient temperature environment. Standard molded case circuit breakers are not rated for higher ambient temperatures unless specifically derated.
What is the difference between the Siemens ED41B030 and similar models like the ED21B030 or ED61B030?
The primary difference is their short-circuit interrupting capacity, or AIC rating. The ED4 series offers a medium interrupting rating, whereas the ED2 series provides standard ratings and the ED6 series features high interrupting capacities. The physical dimensions, mounting style, and trip characteristics remain identical across these versions.
Can the ED41B030 breaker be reverse connected in the field?
Yes. All Siemens ED frame thermal magnetic circuit breakers are suitable for reverse connection. Because this breaker is not marked with specific line and load side restrictions on the trip unit, it can safely be back-fed in applicable field installations.
