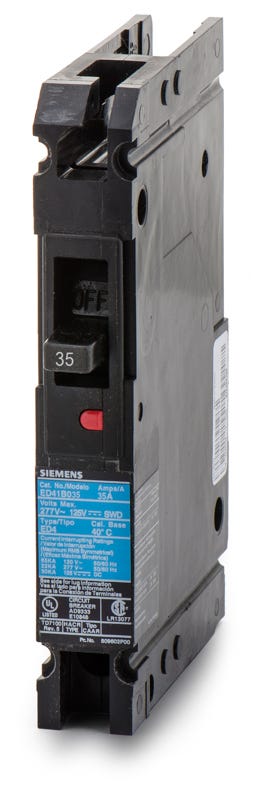

Siemens ED41B035 Molded Case Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Siemens
ED41B035
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED41B035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED41B035 - 35A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
50A 1 Pole Molded Case Circuit Breaker
Description
Operating within the Sentron family, this 35-amp single-pole breaker delivers dependable long-time and instantaneous fault defense. Its non-interchangeable trip unit ensures consistent performance across commercial environments. The bolt-on mechanism fastens securely into compatible Siemens Sentron panelboards and switchboards. Factory-installed load side lugs accommodate 10-4 AWG copper or aluminum wiring for flexible installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED41B035 |
| Series | ED4 |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhich Siemens panelboards accept the ED41B035 circuit breaker?
This bolt-on breaker is designed for Siemens Sentron series distribution equipment. It is compatible with S1, S2, S3, S4, S5, and SE panelboards, as well as SB1, SB2, and SB3 switchboards.
Can the ED41B035 be used in direct current (DC) applications?
Yes, this breaker is rated for 125VDC applications with an interrupting capacity of 30kAIC, making it suitable for control circuits and battery backup systems.
What is the difference between Siemens ED4 and ED6 frame circuit breakers?
The primary difference is their maximum voltage rating. ED4 breakers are rated up to 277VAC for single-pole units, while ED6 breakers are rated for up to 600VAC applications. Both share the same physical footprint and mount in the same Sentron panelboards.
Are load side lugs included with the ED41B035?
Yes, this breaker comes with factory-installed load side lugs designed to accept 10 to 4 AWG copper or aluminum conductors.
Does the ED41B035 provide ground fault or arc fault protection?
No, this is a standard thermal magnetic breaker with fixed long-time and instantaneous (LI) trip functions. It does not include GFCI or AFCI protection circuitry.
How does the interrupting rating change between 120V and 277V systems?
The ED41B035 provides a 65kAIC rating when installed in 120VAC systems. When applied at its maximum rated 277VAC, the interrupting capacity is 22kAIC.
