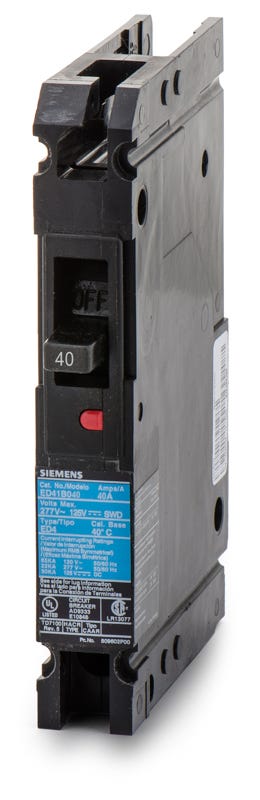

Siemens ED41B040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Siemens
ED41B040
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED41B040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED41B040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED41B040 - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B040 |
| Series | ED4 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LD1E060) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED41B040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B040-R |
| Series | ED4 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LD1E060) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
50A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
Description
Serving as a critical safety component, this 40A single-pole unit protects commercial electrical distribution systems. The ED4 frame construction houses a fixed thermal-magnetic trip element for reliable LI protection. Installation requires bolting the device into Siemens P1, P2, or P3 panelboards and switchboards. While this specific model is a legacy Sentron design, it has been officially superseded by the 3VA5140-4ED16-0AA0.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED41B040 |
| Series | ED4 |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LD1E060) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the ED41B040 circuit breaker?
This ED frame breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards. It requires a bolt-on connection to the bus.
What wire sizes are accepted by the terminals on this breaker?
The factory lugs accept 10 AWG to 4 AWG wire. Both copper and aluminum conductors are supported.
Is the ED41B040 suitable for direct current applications?
Yes, alongside its standard AC ratings, this breaker is certified for direct current applications. It can be safely applied in systems up to 125VDC, where it provides a 30kA interrupting capacity.
How does the trip unit function on this Sentron breaker?
It utilizes a non-interchangeable thermal magnetic trip unit. The fixed thermal element provides long-time overload protection, while the fixed magnetic element handles instantaneous short-circuit protection.
What frame size does the ED41B040 belong to?
It is part of the Siemens Sentron ED frame family. This is a standard 125A maximum frame size, though this specific unit is factory calibrated for a 40A continuous load.
Has the ED41B040 been replaced by a newer Siemens model?
Yes, while the ED41B040 is a legacy Sentron design, it has been officially superseded by the newer Siemens 3VA5 series, specifically part number 3VA5140-4ED16-0AA0.
