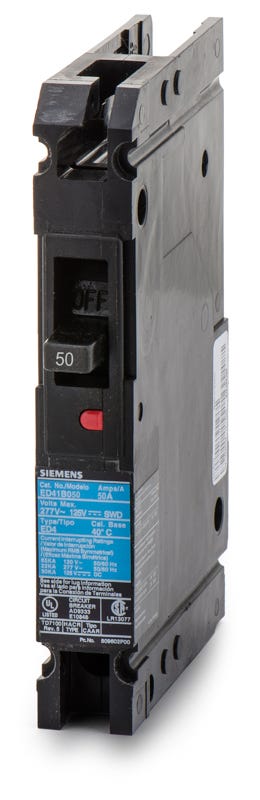

Siemens ED41B050 Molded Case Circuit Breaker
- 50A
- 1 Pole
- Bolt-On
Siemens
ED41B050
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED41B050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED41B050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED41B050 - 50A 1 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B050 |
| Series | ED4 |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LD1E060) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Sold out
Quantity
Siemens ED41B050 - 50A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED41B050-R |
| Series | ED4 |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LD1E060) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
40A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
30A 1 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty commercial and industrial environments, this 50A single-pole molded case circuit breaker delivers dependable thermal-magnetic trip functions. The bolt-on design ensures a rigid, secure connection when mounted into Siemens Sentron panelboards and switchboards. It includes load side lugs and supports reverse feed configurations for flexible installation options.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED41B050 |
| Series | ED4 |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 22kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs (LD1E060) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the Siemens ED41B050?
The ED41B050 is a bolt-on circuit breaker designed specifically for use in Siemens Sentron series panelboards and switchboards.
Can I use the Siemens ED41B050 to replace an older ITE ED41B050?
Yes. Siemens acquired ITE and continues to manufacture the ED4 frame under the same catalog numbers. The Siemens ED41B050 is a direct, exact replacement for the legacy ITE ED41B050.
Does the ED41B050 come with lugs, and what wire sizes do they accept?
Yes, this breaker includes factory-installed load-side lugs that accommodate 10 to 4 AWG copper or aluminum wiring.
Can the ED41B050 be used in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for 125VDC with a 30kA interrupting capacity, allowing it to be used in DC distribution and control applications.
Are the trip settings on the ED41B050 adjustable?
No, this breaker features a non-interchangeable, fixed thermal and fixed magnetic trip unit providing standard long-time and instantaneous (LI) protection.
