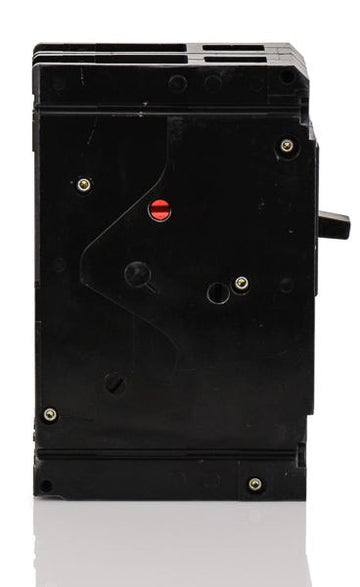

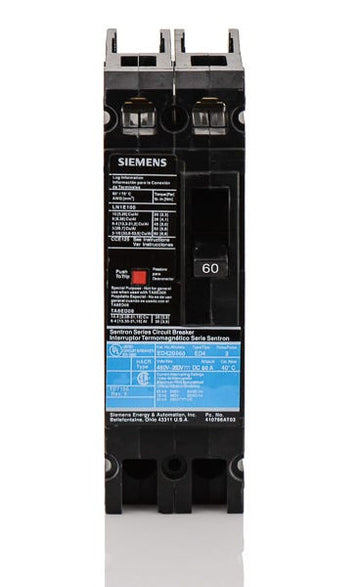

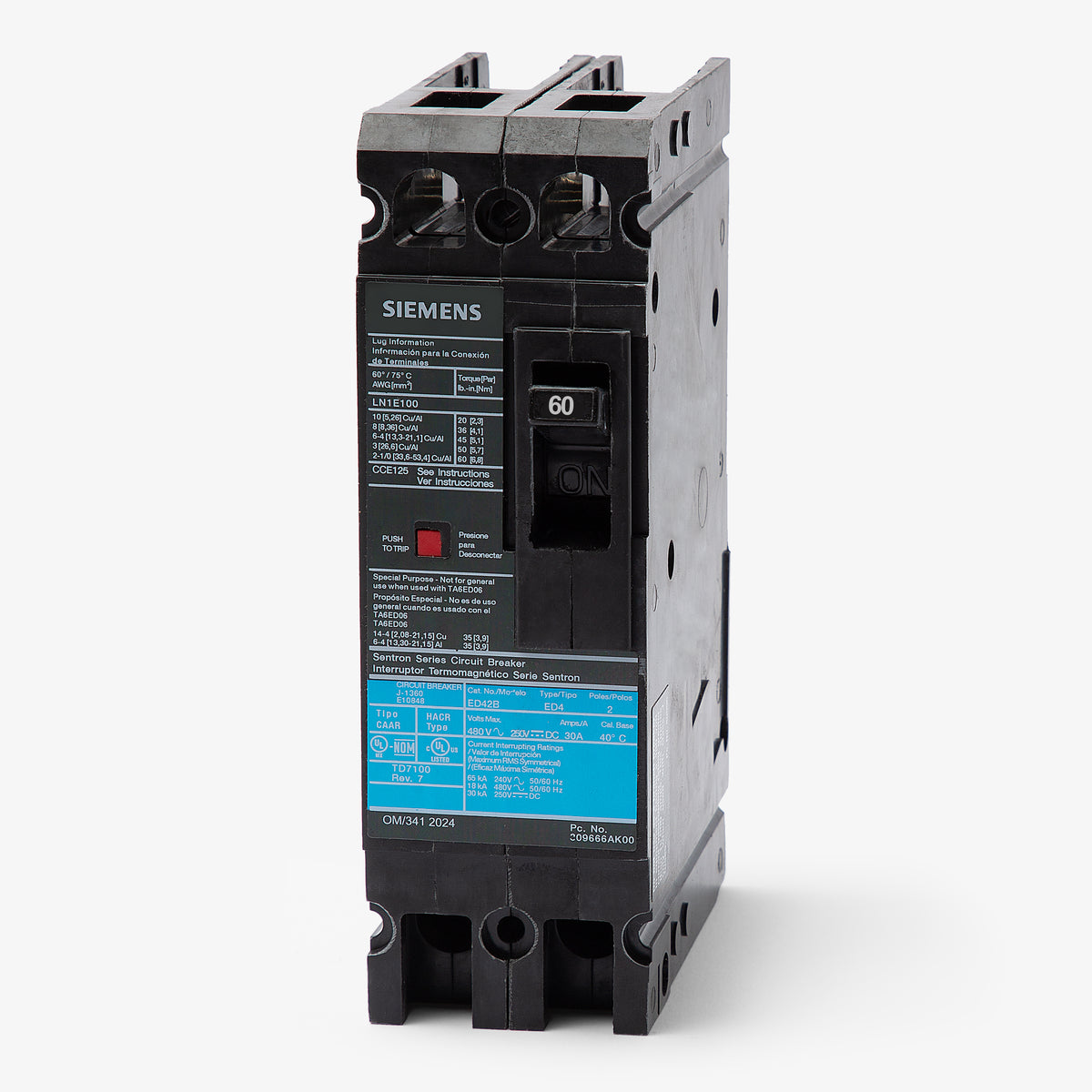

Siemens ED42B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
ED42B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B060 |
| Series | ED4 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Quantity
Siemens ED42B060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B060-R |
| Series | ED4 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
45A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial power distribution, the Siemens ED42B060 is a 2-pole, 60A molded case circuit breaker. It provides dependable thermal-magnetic protection with fixed long-time and instantaneous trip functions. This ED frame breaker features a bolt-on mounting style, making it perfectly suited for integration into Siemens Sentron panelboards and switchboards. Rated for 18kAIC at 480VAC and 65kAIC at 240VAC, it includes load lugs and is fully HACR rated for HVAC applications.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B060 |
| Series | ED4 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
5 answersCan the Siemens ED42B060 replace older ITE or Gould circuit breakers?
Yes, the Siemens ED42B060 is a direct replacement for legacy ITE and Gould breakers with the same ED42B060 catalog number. Siemens acquired ITE and continues to manufacture these ED frame breakers to the same physical and electrical specifications.
What types of enclosures or panels accept the ED42B060 breaker?
This ED frame breaker is designed for bolt-on installation in Siemens Sentron panelboards and SB series switchboards. It is not compatible with standard plug-on load centers.
What is the standard lug kit provided with this breaker?

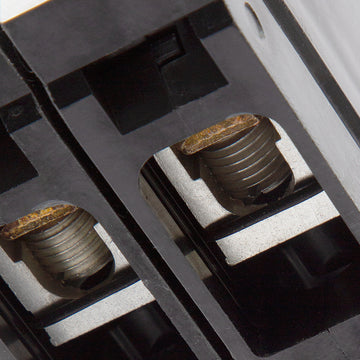

The ED42B060 typically comes with factory-installed LN1E100 load lugs, which accept 10 to 1/0 AWG copper or aluminum wire.
Is the ED42B060 suitable for use in HVAC equipment?
Yes, this breaker is HACR rated, meaning it is certified for use with heating, air conditioning, and refrigeration equipment that requires HACR type circuit protection.
Can the ED42B060 be reverse connected?
Yes, Siemens ED frame molded case circuit breakers, including the ED42B060, are suitable for reverse feed applications.
