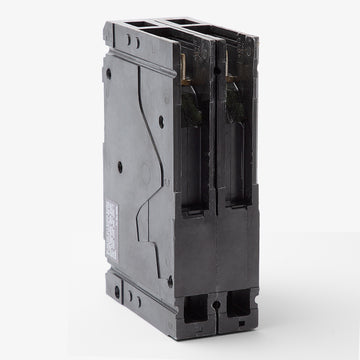

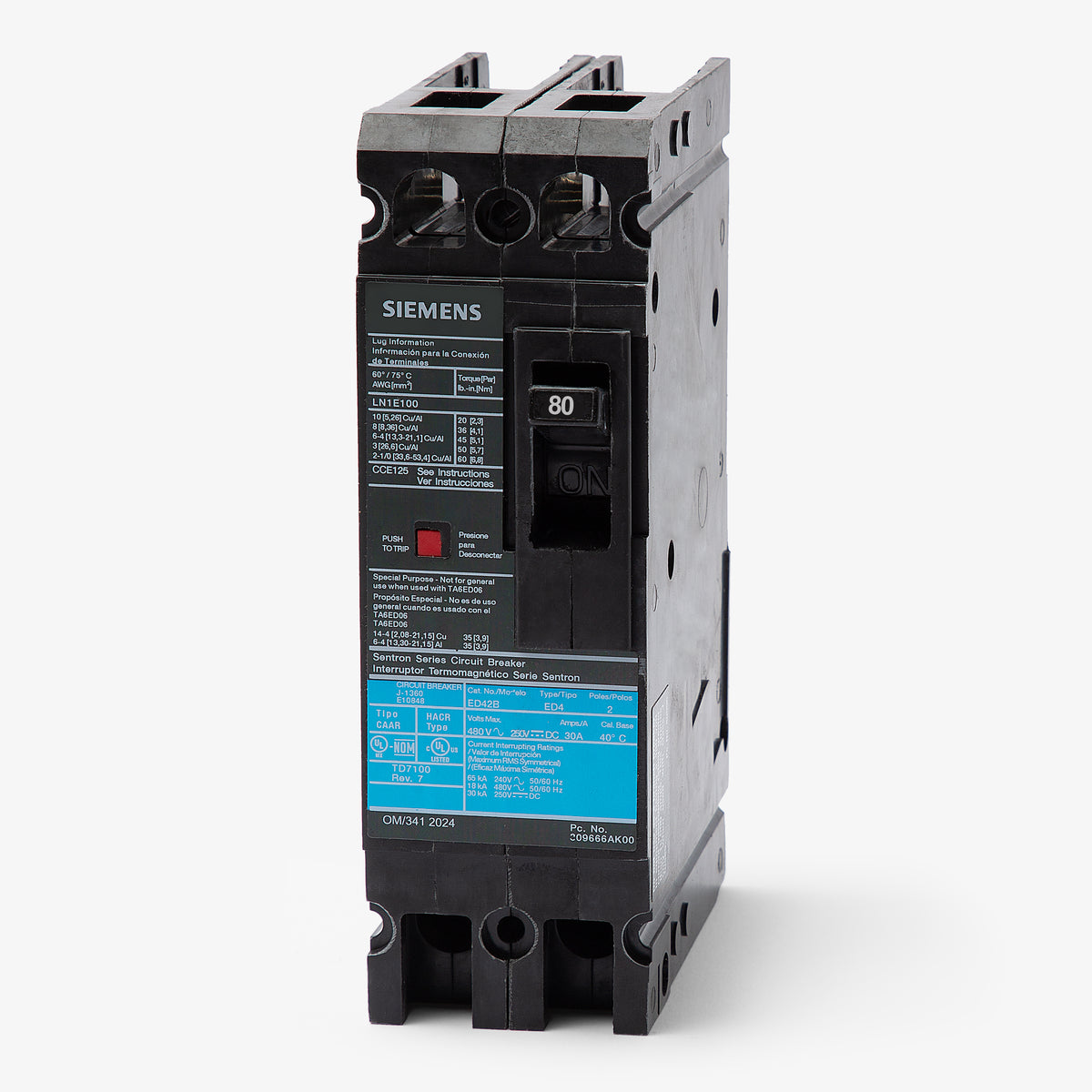

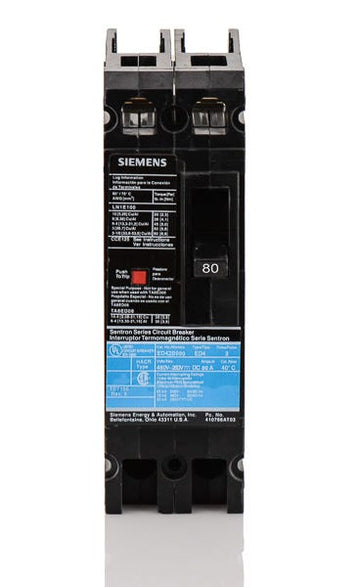

Siemens ED42B080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Siemens
ED42B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B080 |
| Series | ED4 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED42B080 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B080-R |
| Series | ED4 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
60A 2 Pole Molded Case Circuit Breaker
Description
Serving commercial and industrial facilities, this 80-amp Sentron series breaker delivers fixed thermal and magnetic protection. It installs seamlessly into Siemens P1, P2, and P3 panelboards via a sturdy bolt-on configuration. Facilities planning future upgrades should note this model is being succeeded by the 3VA5180-4EC21-0AA0, which requires a specific mounting strap kit. The component carries a robust 65kA interrupt capacity at 240V and includes load-side lugs for standard wire gauges.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B080 |
| Series | ED4 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards are compatible with the Siemens ED42B080 circuit breaker?
This bolt-on breaker is designed for Siemens Sentron P1, P2, and P3 panelboards, as well as compatible switchboards. It requires the appropriate panel-specific mounting strap kit to secure it to the bus.
Can the Siemens ED42B080 replace older ITE or Gould circuit breakers?
Yes. Siemens acquired the ITE and Gould circuit breaker lines. The Siemens ED42B080 is a direct drop-in replacement for older ITE or Gould breakers with the same ED42B080 catalog number, maintaining the exact physical dimensions and ED frame bolt-on mounting.
Is the ED42B080 rated for use in direct current (DC) applications?
Yes, this thermal-magnetic breaker is rated for DC systems up to 250VDC, where it provides a direct current interrupting capacity of 30kAIC.
Can the ED42B080 be reverse fed?
Yes. Like most Siemens ED frame circuit breakers, the ED42B080 features a non-interchangeable trip unit and is suitable for reverse feed applications.
Does this breaker provide ground fault or arc fault protection?
No. The ED42B080 is a standard thermal-magnetic circuit breaker providing fixed long-time and instantaneous (LI) trip functions for overload and short-circuit protection. It does not include GFCI or AFCI capabilities.

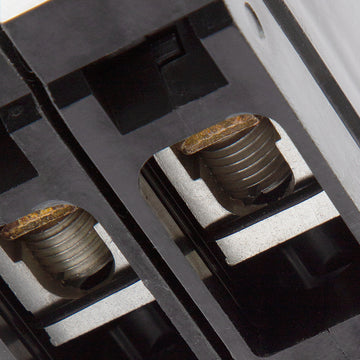

What wire sizes are accepted by the lugs on the ED42B080?
The standard load-side lugs accept copper or aluminum wire ranging from 10 AWG to 1/0 AWG. Ensure you follow local electrical codes and manufacturer torque specifications during installation.
Is this breaker HACR rated for HVAC applications?
Yes, the ED42B080 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection standard.
