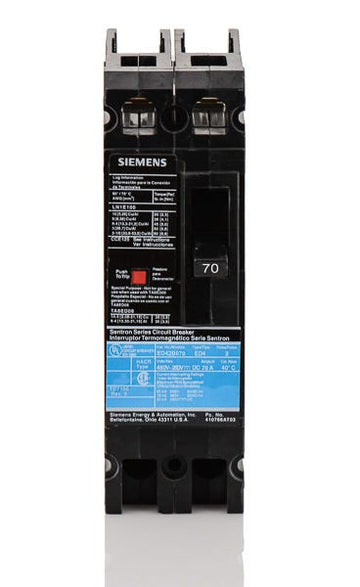

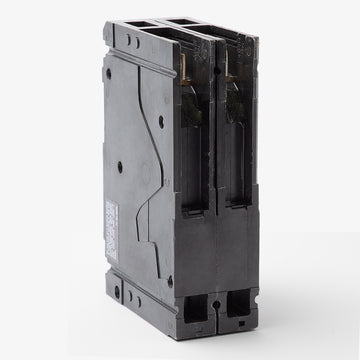

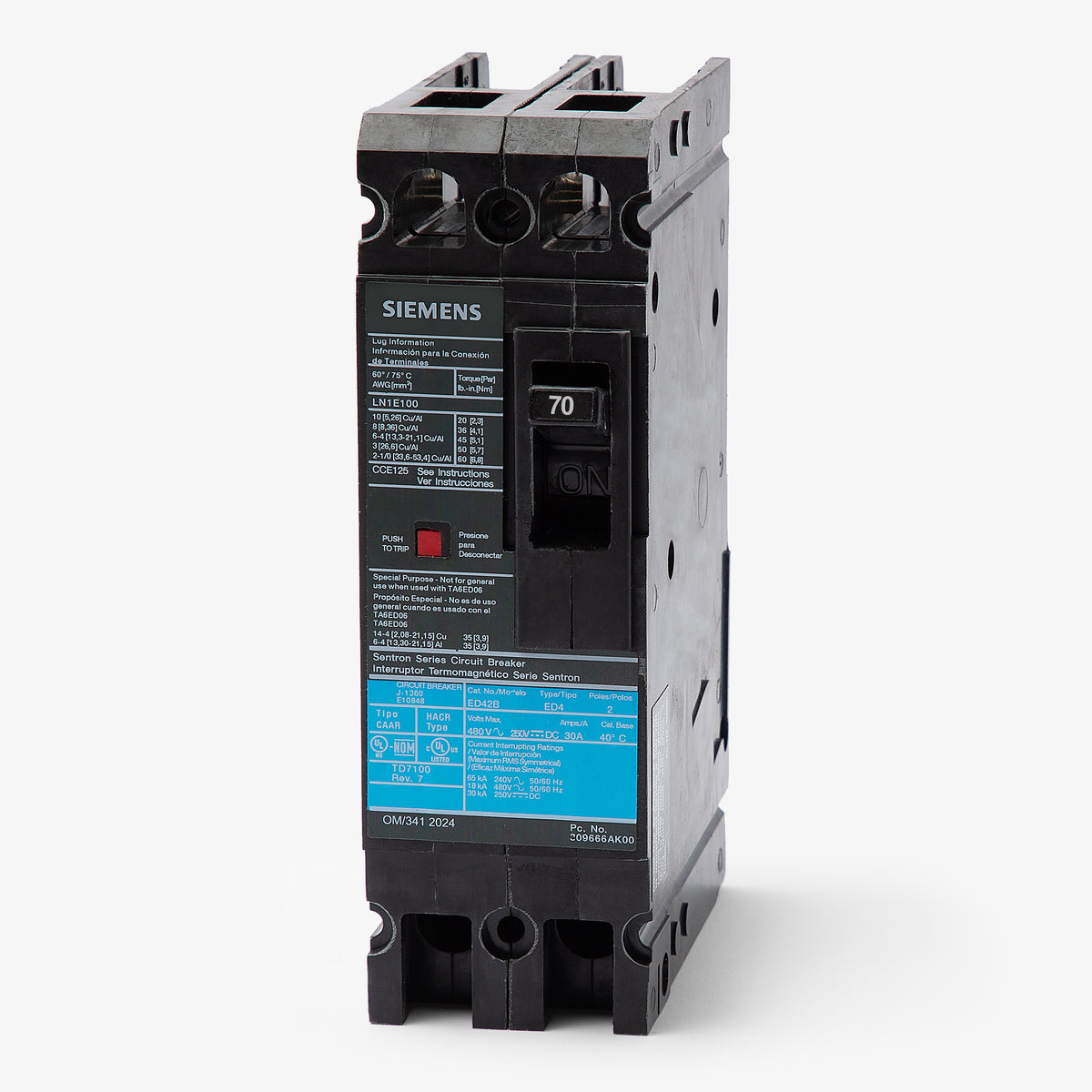

Siemens ED42B070 Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Siemens
ED42B070
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B070 - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B070 |
| Series | ED4 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Siemens ED42B070 - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B070-R |
| Series | ED4 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
60A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial distribution, the Siemens ED42B070 is a 2-pole, 70A molded case circuit breaker. It utilizes fixed thermal-magnetic trip elements to deliver reliable long-time and instantaneous (LI) protection. This bolt-on MCCB mounts into Siemens P1, P2, and P3 panelboards, as well as compatible switchboards. It features a load-side lug connection. The ED4 frame provides 65kAIC at 240VAC. It is replaced by the 3VA5170-4ED21-0AA0 for future panel upgrades.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B070 |
| Series | ED4 |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the ED42B070 circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, and P3 panelboards, as well as compatible switchboards and motor control centers. It requires the appropriate ED frame mounting kit for your specific panel generation.
Is there a newer replacement for the ED42B070?
Yes. For future panel upgrades or new installations, Siemens has replaced the ED42B070 with the 3VA5170-4ED21-0AA0. The replacement features the newer 3VA5 UL 125 frame and a TM210 thermal-magnetic trip unit.
Can the ED42B070 be used in DC electrical systems?
Yes, this breaker is rated for DC applications up to 250VDC, providing an interrupting capacity of 30kAIC at that voltage.

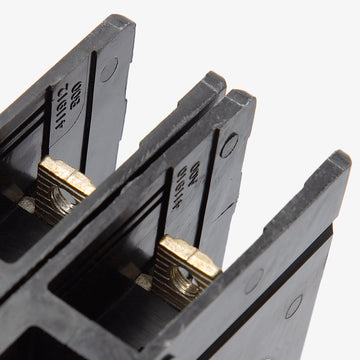

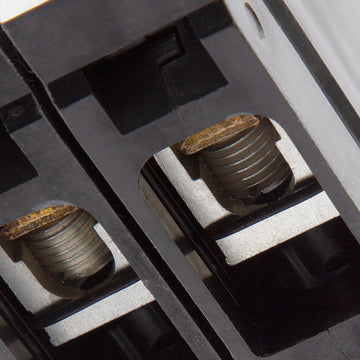

Does this breaker come with lugs, and what wire size do they accept?
Yes, the ED42B070 includes load-side lugs that accept 10 to 1/0 AWG copper or aluminum wire.
Will this breaker fit in a standard residential load center?
No, the ED42B070 is an ED frame bolt-on molded case circuit breaker designed for commercial and industrial panelboards, such as the Siemens P1, P2, and P3 series. It will not fit in standard residential plug-on load centers.
Are the trip settings on the ED42B070 adjustable?
No. It uses a fixed thermal-magnetic trip unit that provides long-time and instantaneous protection. Both the thermal and magnetic trip settings are fixed and cannot be adjusted in the field.
