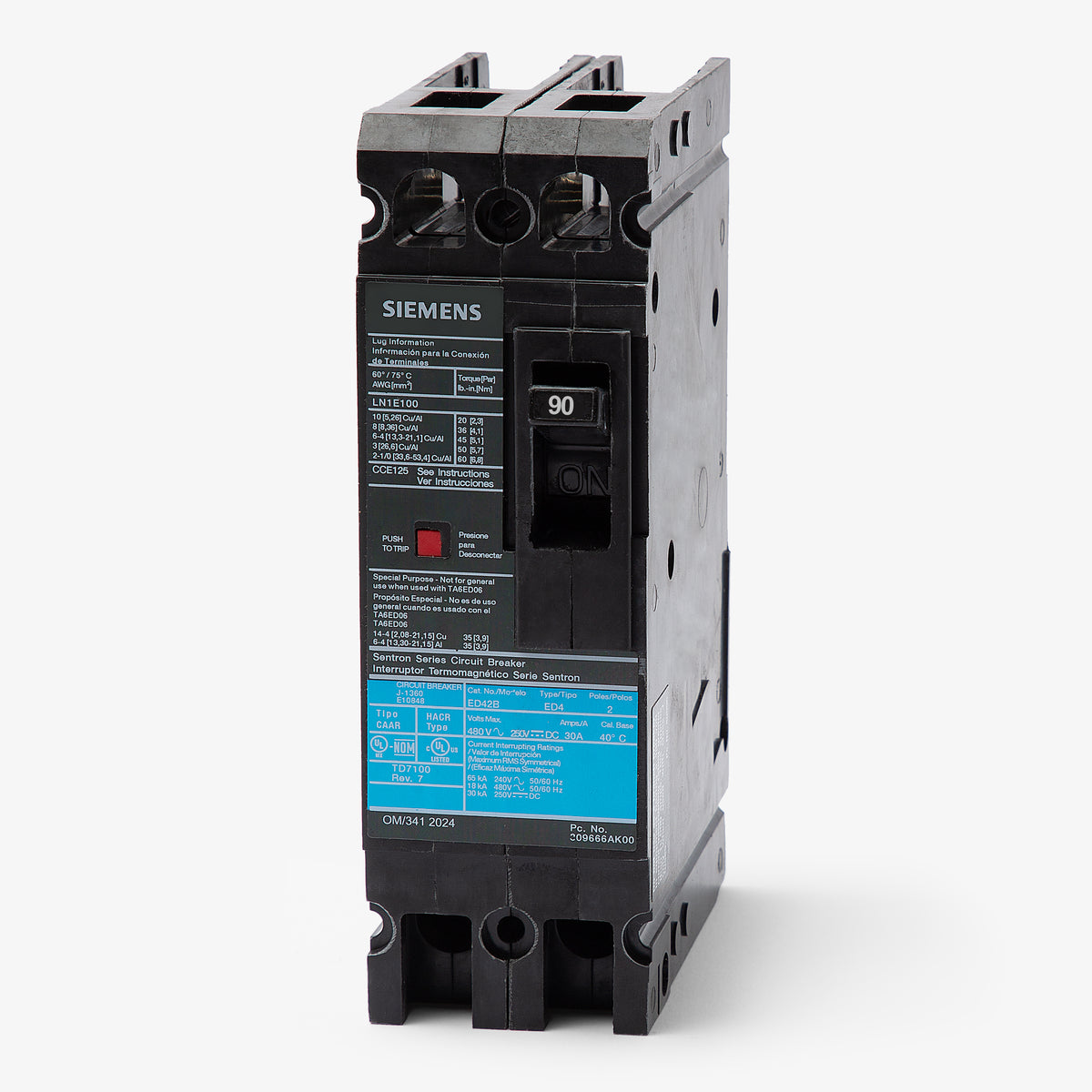

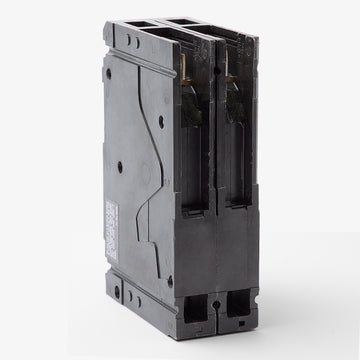

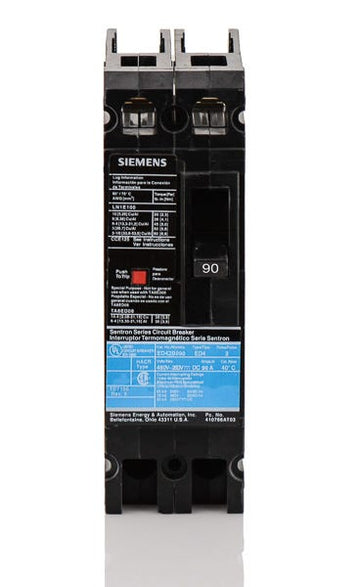

Siemens ED42B090 Molded Case Circuit Breaker
- 90A
- 2 Pole
- Bolt-On
Siemens
ED42B090
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B090 - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B090 |
| Series | ED4 |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Siemens ED42B090 - 90A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B090-R |
| Series | ED4 |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built for seamless integration into Siemens Sentron panelboards and switchboards, this 90A molded case circuit breaker provides essential commercial power distribution. The two-pole device utilizes proven thermal-magnetic technology to deliver precise long-time and instantaneous (LI) fault response. The bolt-on mounting configuration ensures a secure mechanical and electrical connection within compatible enclosures.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B090 |
| Series | ED4 |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the ED42B090 circuit breaker?
This breaker is designed for installation in Siemens Sentron panelboards and switchboards that accept bolt-on ED frame circuit breakers.
Can the ED42B090 be used in DC voltage applications?
Yes, this breaker is rated for up to 250VDC with an interrupting capacity of 30kA, making it suitable for compatible direct current systems.

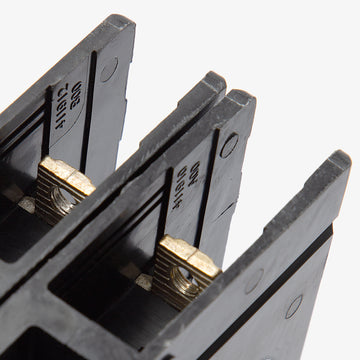

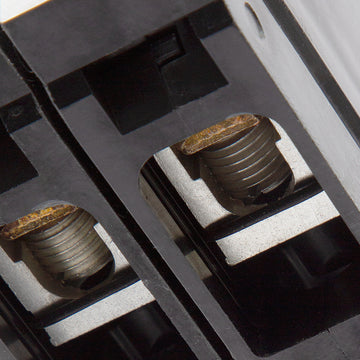

Are the lugs included with the ED42B090, and what wire do they accept?
Yes, this breaker comes equipped with load lugs that accommodate 10 AWG to 1/0 AWG copper or aluminum conductors.
What does the catalog number ED42B090 indicate?
In the Siemens catalog system, ED4 indicates the frame type, 2 stands for 2 poles, B denotes a bolt-on mounting style, and 090 specifies the 90-amp rating.
Does this breaker provide GFCI or AFCI protection?
No, the ED42B090 is a standard thermal magnetic circuit breaker providing long-time and instantaneous (LI) trip functions. It does not include ground fault or arc fault protection.
Is the trip unit on the ED42B090 adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. It provides standard protection without adjustable dials for field calibration.
