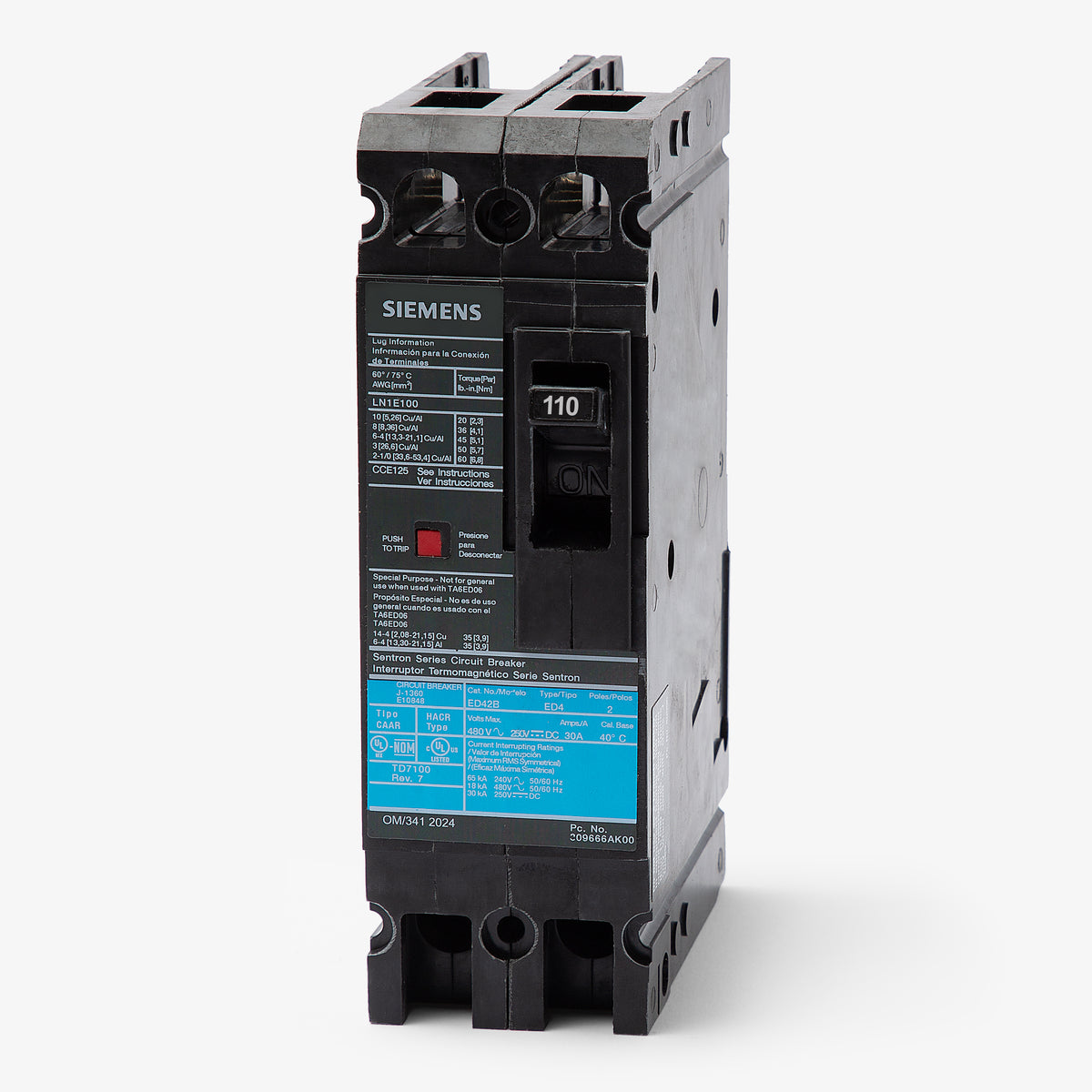

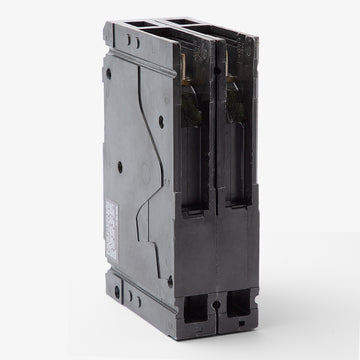

Siemens ED42B110 Molded Case Circuit Breaker
- 110A
- 2 Pole
- Bolt-On
Siemens
ED42B110
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B110 - 110A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Designed for commercial distribution, the Siemens ED42B110 is a 2-pole, 110A molded case circuit breaker. It delivers reliable long-time and instantaneous (LI) thermal magnetic protection. This bolt-on MCCB is engineered for Siemens Sentron P1, P2, and P3 panelboards. It includes factory-installed load side lugs and is superseded by the 3VA5111-4EC21-0AA0 frame, which requires a mounting strap kit. Rated for 18 kAIC at 480VAC, this ED4 frame breaker is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B110 |
| Series | ED4 |
| Amperage | 110A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, 40C Ambient Calibration |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the ED42B110 breaker?
This ED frame breaker is designed for use in Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards. It requires a bolt-on connection to the bus.
Does this breaker include line and load side lugs?

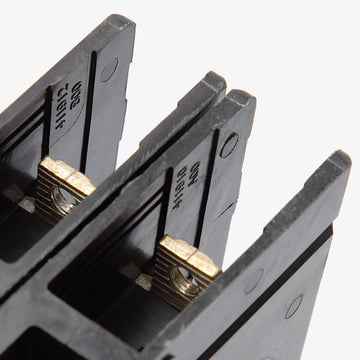

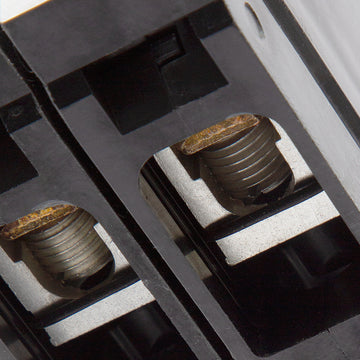

This model includes load side lugs for wire termination. The line side features a bolt-on connection for direct mounting to the panelboard bus.
What wire sizes are accepted by the load side lugs on this breaker?
The included lugs accept 3 AWG to 3/0 AWG copper wire, or 1 AWG to 2/0 AWG aluminum wire.
How does the interrupting rating change between 240V and 480V systems?
The breaker provides a maximum interrupting rating of 65kA at 240VAC. When installed in a 480VAC system, the interrupting rating is 18kA.
Can the ED42B110 be used in DC electrical systems?
Yes, this breaker is rated for DC applications up to 250VDC, providing an interrupting capacity of 30kA at that voltage.
Are the thermal and magnetic trip settings adjustable on this model?
No, the ED42B110 features a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection functions without adjustable dials.
