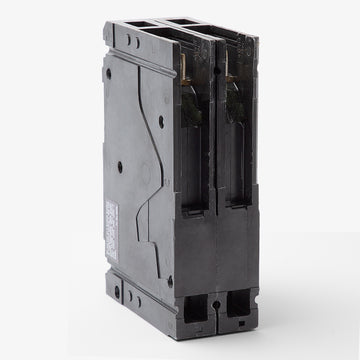

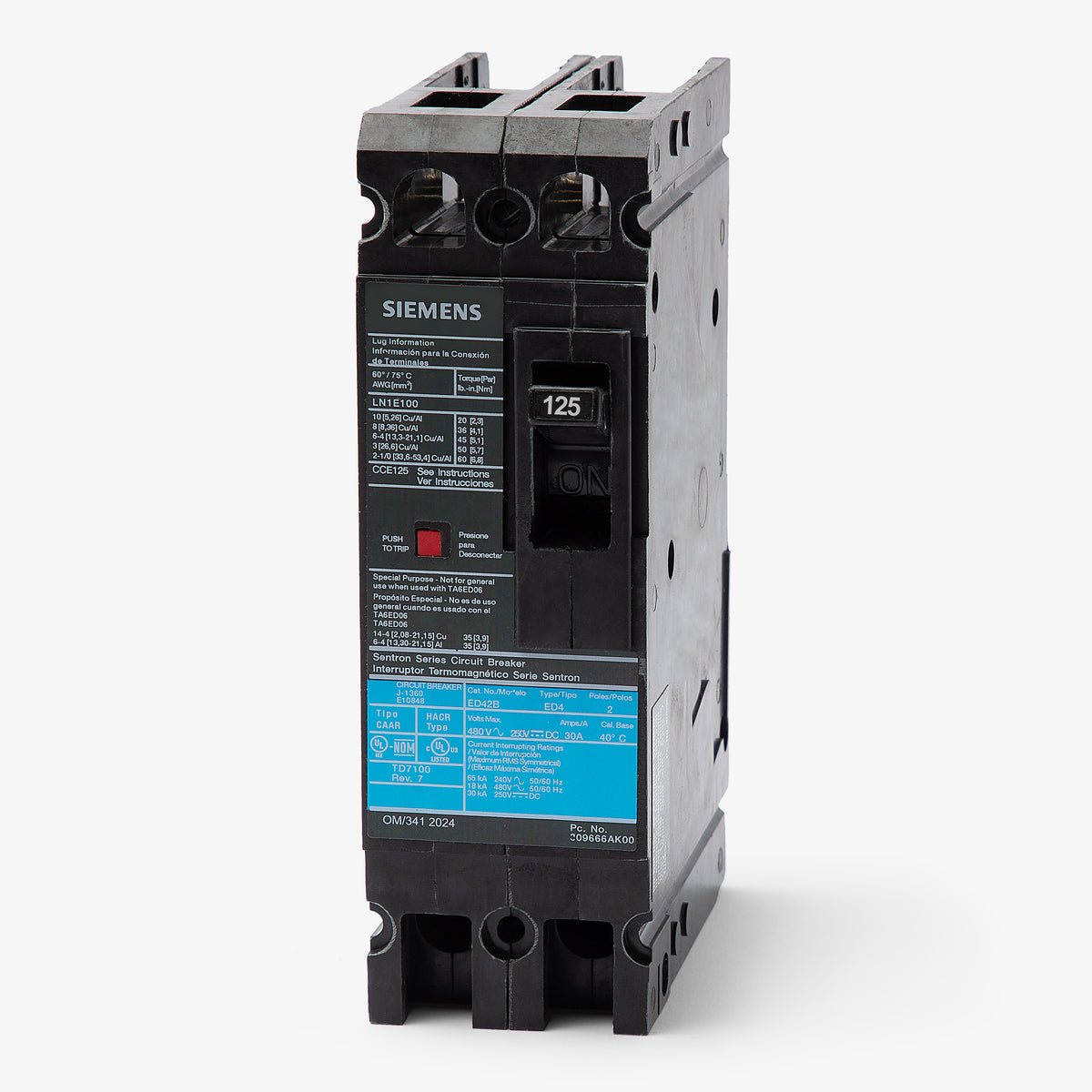

Siemens ED42B125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Bolt-On
Siemens
ED42B125
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED42B125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED42B125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens ED42B125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B125 |
| Series | ED4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Siemens ED42B125 - 125A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED42B125 |
| Series | ED4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
Description
Engineered for demanding applications, the Siemens ED42B125 is a 2-pole, 125A molded case circuit breaker providing dependable long-time and instantaneous (LI) thermal magnetic protection. This bolt-on MCCB fits Siemens Sentron P1, P2, and P3 panelboards, switchboards, and motor control centers. It features factory-installed load side lugs and is superseded by the 3VA5112-4ED21-0AA0. Featuring an 18 kAIC rating at 480VAC, this ED4 frame breaker is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED42B125 |
| Series | ED4 |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 18kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
9 answersWhat types of panels are compatible with the Siemens ED42B125?
This bolt-on circuit breaker is designed for use in Siemens Sentron P1, P2, and P3 panelboards, as well as compatible Siemens switchboards and motor control centers.
Can I use this breaker to replace older ITE or Gould models?
Yes. Siemens acquired ITE and Gould, and this ED4 frame breaker serves as a direct replacement for legacy ITE and Gould ED4 frame circuit breakers with matching specifications.
Is the ED42B125 suitable for reverse feeding?
Yes, this ED frame molded case circuit breaker is reverse feed capable, allowing it to be wired for back-feeding applications where permitted by local electrical codes.
Does this circuit breaker carry an HACR rating?
Yes, the ED42B125 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment group motor installations.
How does this breaker mount into the panel?

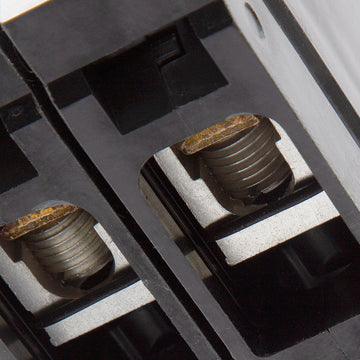

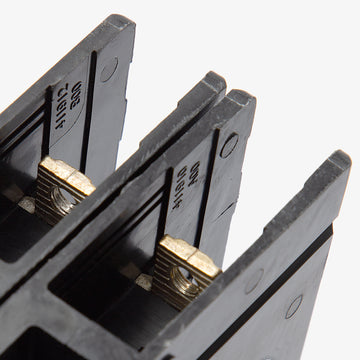

This is a bolt-on circuit breaker. The line side bolts directly to the panelboard bus bars, while the load side uses standard mechanical lugs for wire connections.
Are load side lugs included with this breaker?
Yes, factory-installed load side lugs are standard on this model. They accept 3 to 3/0 AWG copper or 1 to 2/0 AWG aluminum wire.
Does this breaker provide GFCI or AFCI protection?
No, this is a standard thermal-magnetic circuit breaker. It provides long-time and instantaneous trip functions for overload and short-circuit protection, but does not include ground fault or arc fault circuitry.
Can this breaker be mounted on a standard DIN rail?
No, the ED42B125 is a panel-mount, bolt-on circuit breaker. It is not designed for DIN rail installation.
Are the trip settings on the ED42B125 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip thresholds are factory set and cannot be adjusted in the field.
