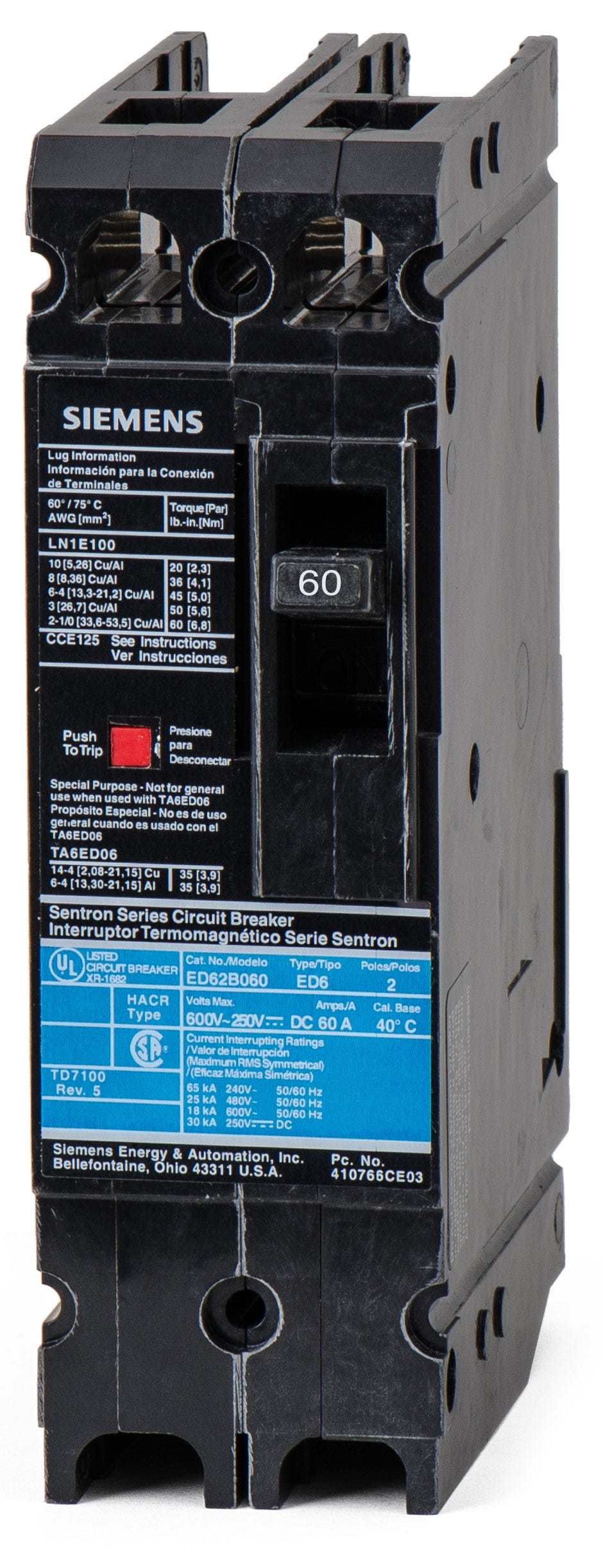

Siemens ED62B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
ED62B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens ED62B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B060 |
| Series | ED6 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Siemens ED62B060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B060-R |
| Series | ED6 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
50A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens ED62B060 provides reliable thermal-magnetic overcurrent protection. This 60-amp, two-pole molded case circuit breaker is a core component of the Sentron family. It installs into Siemens P2, P3, P4, and P5 panelboards and switchboards. The bolt-on mounting style ensures a secure connection for critical distribution systems. Rated for 65kAIC at 240VAC, this ED frame breaker is HACR rated and reverse feed capable.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B060 |
| Series | ED6 |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens ED62B060 circuit breaker?
The ED62B060 is designed for bolt-on installation in Siemens P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.
Can the Siemens ED62B060 replace older ITE circuit breakers?
Yes, Siemens acquired ITE, and the ED62B060 serves as a direct replacement for legacy ITE ED62B060 breakers.
What lug kit is standard for the ED62B060, and what is the accepted wire range?
This breaker typically uses the LN1E100 aluminum body lug kit, which accepts 10 AWG to 1/0 AWG copper or aluminum conductors.
Is the Siemens ED62B060 suitable for use in DC applications?
Yes, this thermal-magnetic breaker is rated for 250VDC applications with an interrupting capacity of 30kAIC.
Is the ED62B060 HACR rated for HVAC applications?
Yes, this Sentron series ED frame breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment branch circuits.
Does the ED62B060 feature an adjustable trip unit?
No, this breaker features a fixed thermal and fixed magnetic trip unit with Long-Time and Instantaneous (LI) trip functions.
Can the Siemens ED62B060 be reverse fed?
Yes, because this ED frame breaker has a non-interchangeable trip unit, it is suitable for reverse feed applications according to UL 489 standards.
