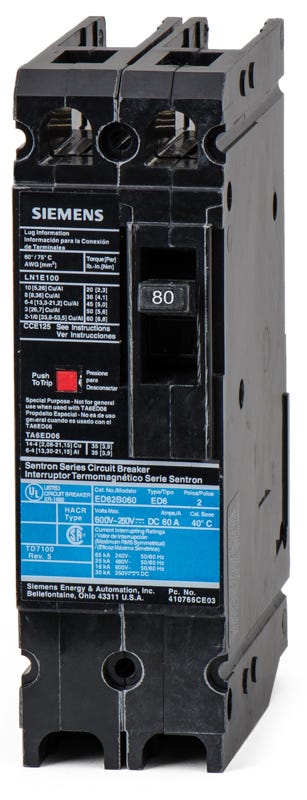

Siemens ED62B080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Siemens
ED62B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
ED62B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens ED62B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens ED62B080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B080 |
| Series | ED6 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Sold out
Quantity
Siemens ED62B080 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED62B080-R |
| Series | ED6 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
70A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
35A 2 Pole Molded Case Circuit Breaker
Description
Providing 80 amps of reliable thermal-magnetic protection, the Siemens ED62B080 belongs to the Sentron ED Frame series for commercial and industrial facilities. It accommodates 240V, 480V, and 600V electrical systems. Designed for bolt-on installation, this MCCB fits seamlessly into Siemens P2, P3, P4, and P5 panelboards and switchboards. The unit comes equipped with load-side lugs and supports reverse-feed wiring.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED62B080 |
| Series | ED6 |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lug (LN1E100) |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich Siemens panelboards accept the ED62B080 breaker?
This ED-frame breaker mounts via a bolt-on connection and is designed for Siemens SENTRON P2, P3, P4, and P5 commercial panelboards, as well as compatible switchboards. It will not fit in standard residential plug-on load centers.
Can this 2-pole breaker be installed in a 3-phase panelboard?
Yes, a 2-pole ED-frame breaker can be installed in a 3-phase P2, P3, P4, or P5 panelboard. It will connect to two of the three available bus bars, providing single-phase power to the connected load.
Are the lugs on the ED62B080 rated for both copper and aluminum wire?
Yes, the standard factory lugs accept both copper (Cu) and aluminum (Al) conductors. The acceptable wire range is 10 AWG to 1/0 AWG. Always apply an approved oxide inhibitor when terminating aluminum wiring.
Can I adjust the trip settings on the ED62B080?
No, this breaker uses a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip points are factory set and cannot be modified in the field.
Can the ED62B080 be used in direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications. It provides an interrupting capacity of 30kA at 250VDC, making it suitable for specific industrial control and battery system applications.
What is the difference between the ED62B080 and ED62B080L catalog numbers?
The "L" suffix in Siemens catalog numbers typically indicates that the breaker is supplied with factory-installed line and load lugs. The standard ED62B080 configuration already includes these lugs, making the two part numbers functionally identical for most installations.
