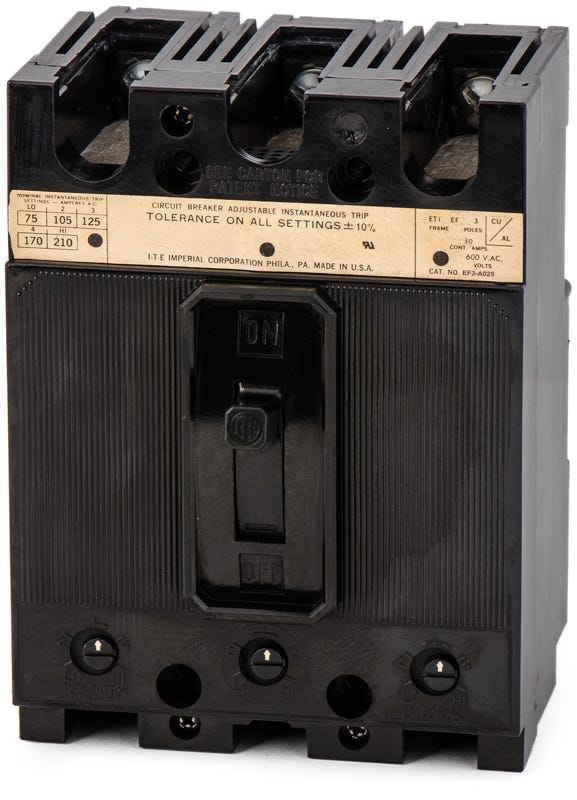

Siemens EF3A025 Motor Circuit Protector
- 25A
- 3 Pole
- Bolt-On
Siemens
EF3A025
Motor Circuit Protector
Brand
Siemens
SKU
EF3A025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens EF3A025 - 25A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
Similar Items
30A 3 Pole Motor Circuit Protector
10A 3 Pole Motor Circuit Protector
100A 3 Pole Motor Circuit Protector
Description
Designed specifically for motor branch circuits, the Siemens EF3A025 is a 3-pole magnetic-only protector. It provides essential instantaneous trip functions to prevent damage during short-circuit events. The 25A bolt-on device is compatible with legacy I-T-E and Siemens FC-1 panelboards as well as FC-20 switchboards. Users looking for a modern equivalent can use the ED63A025 replacement. With an adjustable magnetic range of 75-210A, it allows precise alignment with motor overload relays.Specifications
| Brand | Siemens |
|---|---|
| Part Number | EF3A025-R |
| Series | EF |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Amperage Range | 75-210A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens / I-T-E Panelboards, FC-1 Panelboards, FC-20 Switchboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Motor Circuit Protector |
