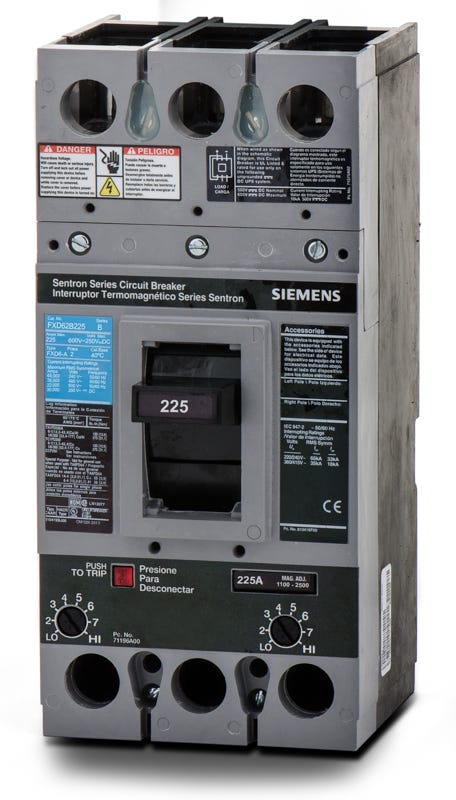

Siemens FXD62B225 - 225A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU FXD62B225
Siemens FXD62B225 2 Pole Circuit Breaker
Free Shipping Over $99

Siemens FXD62B225 - 225A 2 Pole Molded Case Circuit Breaker

Brand Siemens
SKU FXD62B225
Select Item Condition
Earn 1271 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more
Siemens FXD62B225 2 Pole Circuit Breaker

Siemens FXD62B225 - 225A 2 Pole Molded Case Circuit Breaker

New

$1271.20 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Belonging to the Siemens Sentron FD-Frame family, the FXD62B225 handles 225A commercial and industrial loads. It provides reliable long-time and instantaneous (LI) protection for demanding electrical systems. This unit-mount MCCB installs into Siemens P1, P2, and P3 panelboards or Sentron switchboards. It requires the TA1FD350A lug kit for termination, as lugs are not included. Rated for 35kAIC at 480VAC, it features an adjustable magnetic trip, HACR rating, and reverse feed capability.

Specifications

Brand Siemens
Series FXD6
Amperage 225A
Voltage 240VAC, 480VAC, 600VAC, 250VDC
Poles 2
Phase 1
AIC Rating 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC
Mounting Style Unit Mount
Terminal Type Lugs
For Use With Siemens P1, P2, P3 Panelboards, Sentron Switchboards, Motor Control Centers, Sentron Enclosures
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Adjustable Magnetic
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Mechanical Interlock
Accessories Lugs Not Included (Requires Lug Kit TA1FD350A)
Standards HACR Rated, IEC 60947-2, UL 489
Approval CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism
