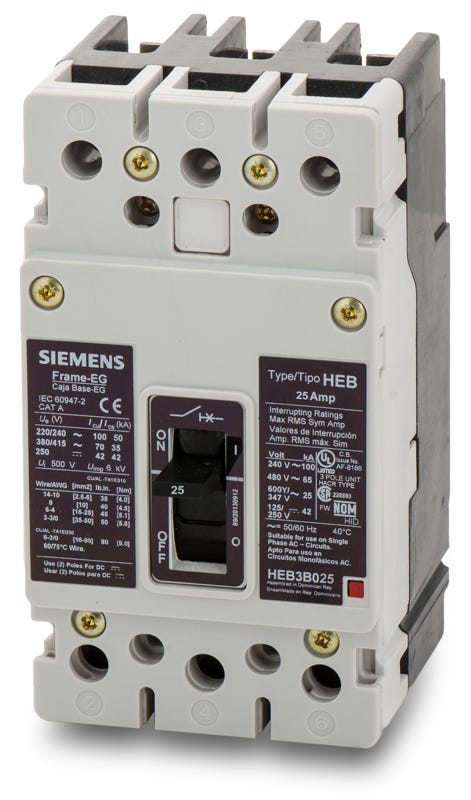

Siemens HEB3B025B Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
Siemens
HEB3B025B
Molded Case Circuit Breaker
Brand
Siemens
SKU
HEB3B025B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

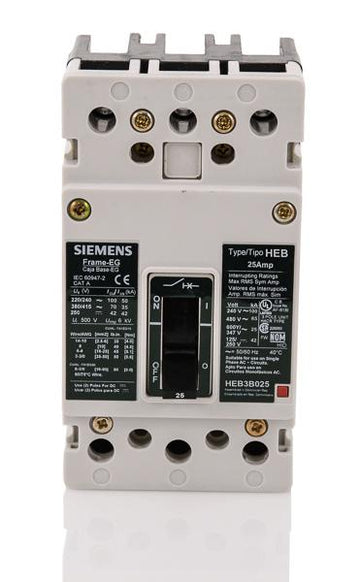

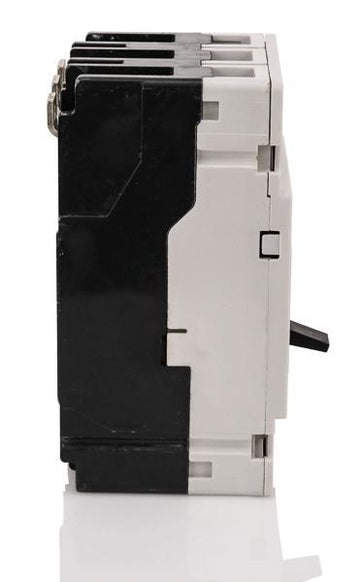

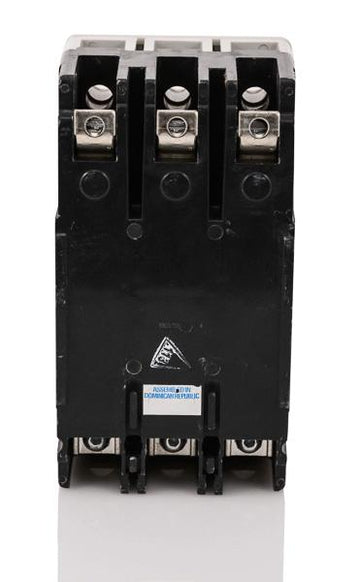

Siemens HEB3B025B - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens HEB3B025B - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HEB3B025B |
| Series | HEB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Sold out
Quantity
Siemens HEB3B025B - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | HEB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Similar Items
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Part of the Sentron series, the Siemens HEB3B025B is a 3-pole, 25A molded case circuit breaker for commercial applications. It features a compact EG-frame with a thermal-magnetic trip unit for reliable LI protection. This bolt-on breaker installs into Siemens P1, P2, and P3 panelboards, and is officially replaced by the 3VA4125-6ED34-0AA0 (requires 3VA41 strap kit). Delivering 65 kAIC at 480VAC, it handles demanding fault currents and is fully HACR and HID rated for specialized circuits.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HEB3B025B |
| Series | HEB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | HEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, HID, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the Siemens HEB3B025B?
The HEB3B025B is a bolt-on molded case circuit breaker designed for use in Siemens P1, P2, and P3 commercial and industrial panelboards. It is not compatible with standard residential plug-on load centers.
What is the difference between the Siemens HEB and NEB frame breakers?
The H in the HEB frame designates it as the high-interrupting tier within the EG frame family, providing up to 65kAIC at 480VAC. The NEB frame is the standard-interrupting version. Both share the same physical dimensions and panelboard compatibility.
What wire sizes and materials do the lugs on the HEB3B025B accept?
The factory-installed lugs accept 14 AWG through 1/0 AWG copper or aluminum conductors. Always ensure proper torque specifications are met during installation as labeled on the breaker.
Does the HEB3B025B provide ground fault or arc fault protection?
No, this breaker features standard thermal-magnetic trip functions (Long-Time and Instantaneous) for overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
Is the HEB3B025B suitable for direct current (DC) applications?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for use in DC systems up to 250VDC, where it provides an interrupting capacity of 42kAIC.
