Siemens HED41B110 Molded Case Circuit Breaker
- 110A
- 1 Pole
- Bolt-On
Siemens
HED41B110
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED41B110
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

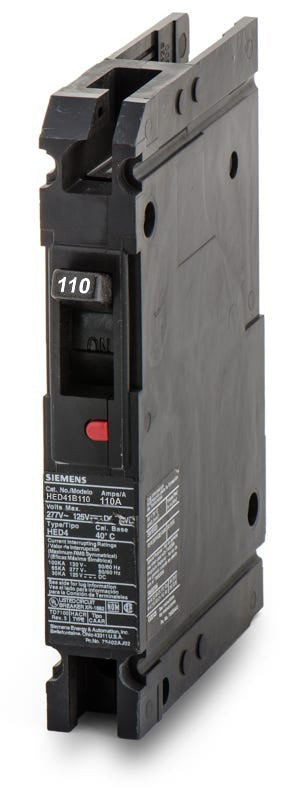

Siemens HED41B110 - 110A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
50A 1 Pole Molded Case Circuit Breaker
40A 1 Pole Molded Case Circuit Breaker
25A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Siemens HED41B110 provides reliable thermal-magnetic protection within the Sentron family. This 110-amp, single-pole breaker mounts into P1, P2, and P3 panelboards as well as SB switchboards. Featuring a high interrupting capacity of 100kA at 120VAC, it handles demanding fault conditions. While this specific ED-frame model is highly sought after, it is eventually replaced by the 3VA5111-6ED16-0AA0 with an adapter kit.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HED41B110 |
| Series | HED4 |
| Amperage | 110A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 25kA @ 277VAC, 30kA @ 125VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards, P1, P2, P3 Panelboards, SB Switchboards |
| Wire Gauge | 10 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included (LN1E100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
5 answersWhich Siemens panelboards accept the HED41B110 circuit breaker?
This bolt-on breaker is compatible with Siemens Sentron series distribution equipment, specifically P1, P2, and P3 panelboards, as well as SB switchboards.
What are the acceptable wire sizes for the HED41B110 lugs?
The lugs on this breaker accommodate 10 AWG to 1/0 AWG conductors. Both copper and aluminum wires are supported for field wiring.
What does the HED prefix indicate on this Siemens breaker?
The HED prefix designates it as a high-interrupting capacity model within the Siemens Sentron ED frame family.
How does the thermal magnetic trip unit on the HED41B110 function?
The fixed thermal magnetic trip unit provides dual protection. The thermal component responds to sustained overloads with a long-time delay, while the magnetic component provides instantaneous tripping during severe short circuits.
Can the HED41B110 be used in DC electrical systems?
Yes, in addition to AC applications, this breaker is rated for DC circuits up to 125VDC with an interrupting capacity of 30kA.
