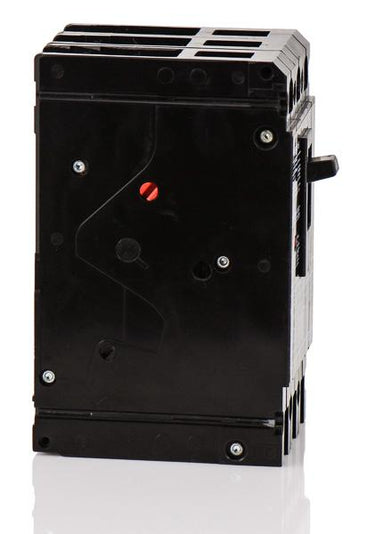

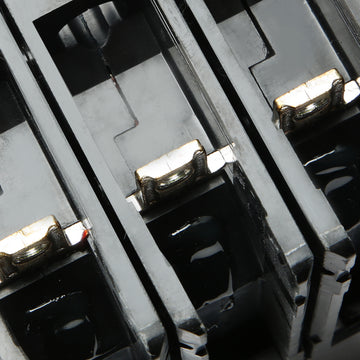

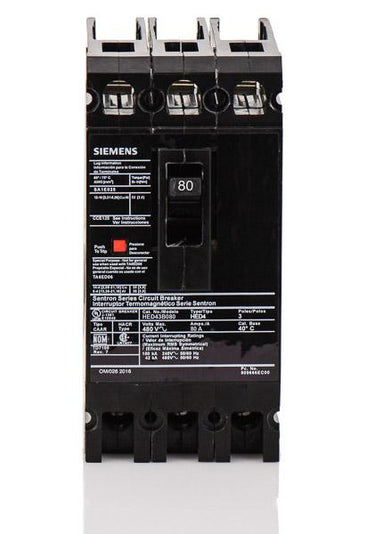

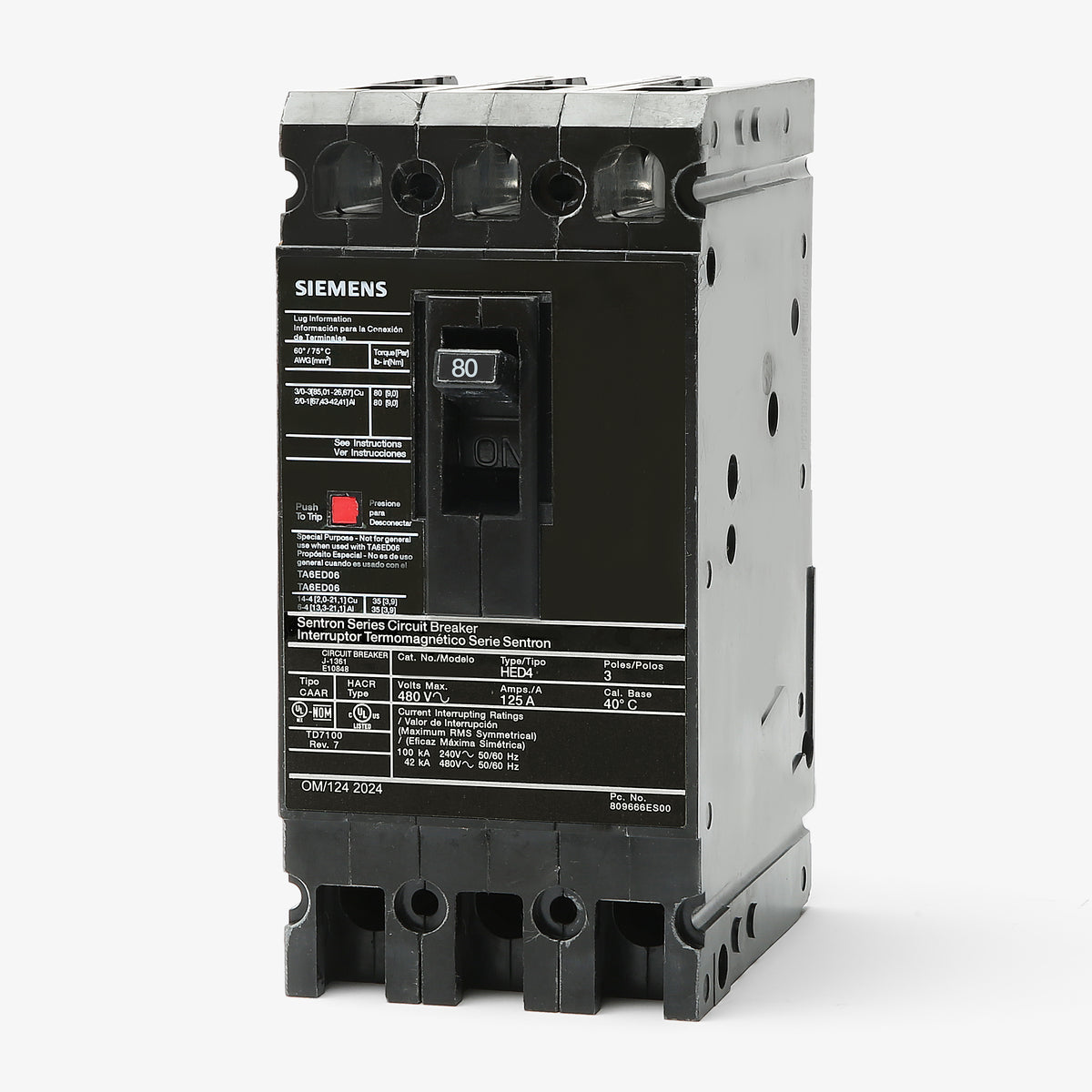

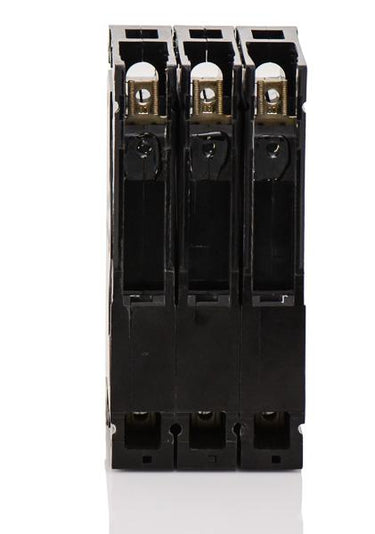

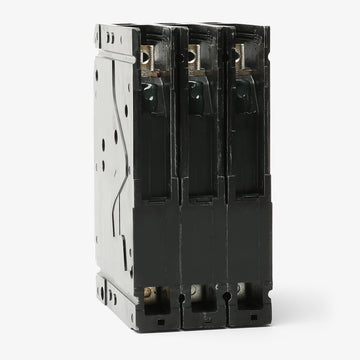

Siemens HED43B080 Molded Case Circuit Breaker
- 80A
- 3 Pole
- Bolt-On
Siemens
HED43B080
Molded Case Circuit Breaker
Brand
Siemens
SKU
HED43B080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens HED43B080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Siemens HED43B080 - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Series | HED4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Quantity
Siemens HED43B080 - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Series | HED4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding electrical distribution systems, this 80-amp bolt-on breaker delivers reliable thermal-magnetic protection. The 3-pole device is specifically engineered to mount into Siemens Sentron P2 and P3 panelboards, as well as compatible switchboards. It handles high fault currents with a 100kA rating at 240V and 42kA at 480V. Load side lugs are included for immediate termination. For modern upgrades, this ED frame unit crosses to the 3VA5180-6EC31-0AA0 with a mounting kit.Specifications
| Brand | Siemens |
|---|---|
| Series | HED4 |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 42kA @ 480VAC, 30kA @ 250VDC |
| Frame Type | HED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Sentron Panelboards (P2, P3), Switchboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
6 answersWhich panelboards accept the Siemens HED43B080 circuit breaker?
This ED-frame breaker mounts into Siemens Sentron P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards.

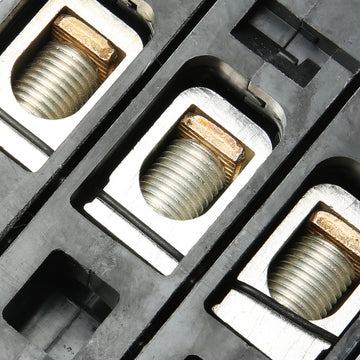

What wire sizes and materials are supported by the HED43B080 load lugs?
The factory-installed load lugs accept 10 to 1/0 AWG copper or aluminum conductors.
What is the difference between the Siemens ED43B080 and the HED43B080?
The primary difference is the short-circuit interrupting rating. The HED43B080 is a high-interrupting breaker rated for 42kAIC at 480VAC, while the standard ED43B080 is rated for 18kAIC at 480VAC.
Is the HED43B080 suitable for direct current (DC) systems?
Yes, this thermal-magnetic breaker is rated for DC applications, providing a 30kA interrupting capacity at 250VDC.
Are the trip settings on the HED43B080 adjustable?
No, this breaker utilizes a non-interchangeable thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
Can line-side lugs be added to the HED43B080 for standalone applications?
Yes. While it is designed as a bolt-on breaker for panel bus connections, line-side lugs (such as the LN1E100 kit) can be installed in the field for use in individual enclosures.
