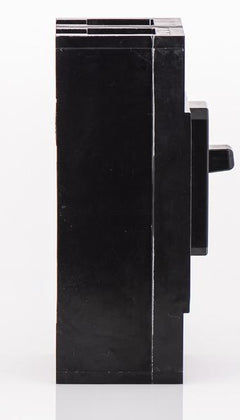

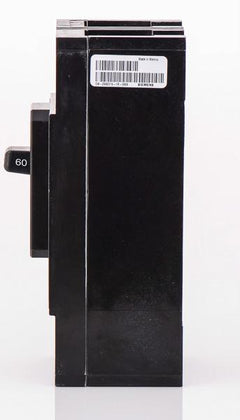

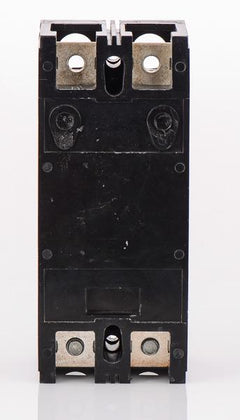

Siemens QJ22B060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Siemens
QJ22B060
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ22B060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ22B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Siemens QJ22B060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B060 |
| Series | QJ |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Sold out
Quantity
Siemens QJ22B060 - 60A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ22B060-R |
| Series | QJ |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
80A 2 Pole Molded Case Circuit Breaker
90A 2 Pole Molded Case Circuit Breaker
Description
Rated for 10kAIC at 240VAC, this two-pole Siemens QJ22B060 molded case circuit breaker delivers essential short-circuit and overload protection for commercial applications. The bolt-on mounting style ensures a secure connection within Siemens P1, P2, and P3 panelboards as well as compatible switchboards. Featuring a non-interchangeable thermal-magnetic trip unit, this 60A QJ-frame breaker is HACR rated and built to handle demanding electrical distribution requirements.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ22B060 |
| Series | QJ |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Panelboards (P1, P2, P3), Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu) / 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included (TA1Q300) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip |
Product FAQs
7 answersWhich panelboards are compatible with the Siemens QJ22B060?
This QJ-frame breaker is designed for bolt-on installation in Siemens P1, P2, and P3 panelboards, as well as compatible Siemens switchboards.
What wire sizes are accepted by the lugs on the QJ22B060?
The factory-installed lugs accommodate 6 AWG to 300 kcmil copper conductors, or 4 AWG to 300 kcmil aluminum conductors.
What type of trip unit is equipped on this breaker?
It features a non-interchangeable thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions to handle standard overload and short-circuit protection.
How does the QJ22B060 connect to the panelboard bus?
It utilizes a bolt-on connection. The breaker bolts directly to the busbars in the panelboard or switchboard, which provides a highly secure mechanical and electrical connection compared to plug-on designs.
Has the Siemens QJ frame been replaced by a newer series?
Yes, the legacy QJ frame has largely been superseded by the modern QR frame series. If you are upgrading or replacing a QJ22B060 with a QR-frame equivalent, you will typically need a specific retrofit mounting kit to adapt it to your existing panelboard.
Is the QJ22B060 suitable for high-fault commercial applications?
With an interrupting rating of 10kA at 240VAC, it is intended for standard fault-current applications. If your system requires a higher interrupting capacity, you will need a different breaker in the QJ or QR family, such as the QJH or HQR series.
Can the QJ22B060 be installed in a 480V electrical system?
No. This breaker is rated for a maximum of 240VAC. Installing it in a 480V or 277/480V system violates its voltage rating and creates a severe safety hazard.
