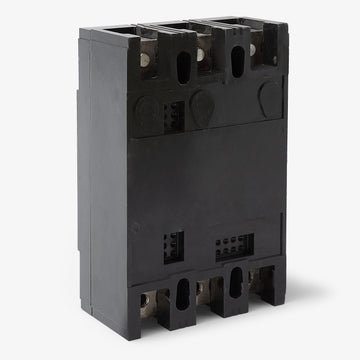

Siemens QJ23B080H Molded Case Circuit Breaker
- 80A
- 3 Pole
- Unit Mount
Siemens
QJ23B080H
Molded Case Circuit Breaker
Brand
Siemens
SKU
QJ23B080H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QJ23B080H - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Siemens QJ23B080H - 80A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B080H |
| Series | QJ |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
Siemens QJ23B080H - 80A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | QJ23B080H-R |
| Series | QJ |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Designed for industrial environments, the Siemens QJ23B080H is a 3-pole, 80A molded case circuit breaker delivering high-performance power distribution for the SENTRON line. This QJ-frame device utilizes a unit-mount configuration with load-side lugs. It is engineered for compatibility with Siemens meter centers, panelboards, and switchboards. Boasting a 42kAIC rating at 240VAC, it provides fixed thermal-magnetic LI protection. The breaker is HACR rated and suitable for reverse feed.Specifications
| Brand | Siemens |
|---|---|
| Part Number | QJ23B080H |
| Series | QJ |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | QJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Meter Centers, Panelboards, Switchboards |
| Wire Gauge | 6 AWG - 300 kcmil (Cu), 4 AWG - 300 kcmil (Al) |
| Max Wire | 300 kcmil |
| Min Wire | 6 AWG (Cu), 4 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
5 answersWhat enclosures and panels are compatible with the QJ23B080H?
This QJ-frame breaker is designed for bolt-on installation in compatible Siemens meter centers, panelboards, and switchboards. Always verify that your specific panel interior is listed to accept 3-pole QJ or QR frame breakers.
Is the Siemens QJ23B080H HACR rated and suitable for reverse feeding?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also suitable for reverse feed installations.
What are the acceptable wire gauges for the terminals on this breaker?
The factory-installed lugs accept 6 AWG to 300 kcmil copper (Cu) conductors, or 4 AWG to 300 kcmil aluminum (Al) conductors.
How does the QJ23B080H differ from the QJ23B080 and QJH23B080?
These part numbers share the same 80A, 3-pole QJ frame but have different interrupting ratings at 240VAC. The standard QJ23B080 is rated for 10kAIC, the QJH23B080 is rated for 22kAIC, and the QJ23B080H provides a higher 42kAIC rating.
Are the thermal and magnetic trip settings adjustable on the QJ23B080H?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time (thermal) and instantaneous (magnetic) trip functions are non-interchangeable and non-adjustable.
