Square D 2510FW1 Manual Starter

Brand Square D
SKU 2510FW1
(56 Reviews)
Square D 2510FW1 Manual Starter

Square D 2510FW1 Manual Starter

Brand Square D
SKU 2510FW1
(56 Reviews)
Select Item Condition

Quantity
Buy Now. Pay Later with Shop Pay.
Earn 196 SuperPoints
Add to Favorites Added to Favorites
Hassle-free returns
Fast and reliable shipping
Free shipping over $99
Square D 2510FW1 Manual Starter

Square D 2510FW1 Manual Starter

New

$196.36 In stock

Quantity

Description

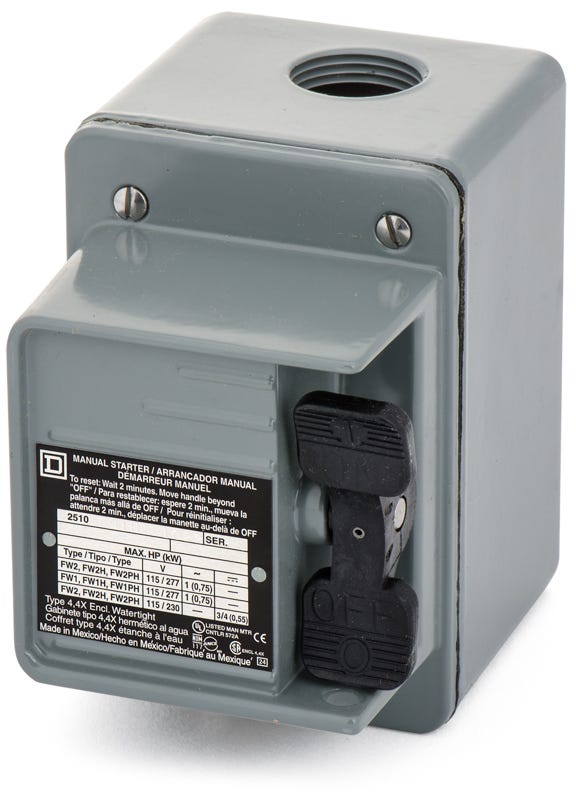

Square D 2510FW1 Manual Starter

The New Square D 2510FW1 277Vac Fractional Manual Motor Starter is a 16A, noneversing, single unit manual starter with melting alloy thermal overload relay. This fractional horsepower starter provides control/short-circuit current and overload protection as well as manual On-Off control for small motors in a variety of industrial and commercial installations. This noneversing motor starter has a NEMA 4 die cast zinc alloy enclosure and screw clamp terminals. This type-F manual motor starter has 1 phase and 1 pole with toggle switch. The Square D 2510FW1 includes 3/4-inch bottom pipe tap and an oil tight and dust tight single unit metal box.

Specifications

Brand Square D
Series 2510F
Amperage 16
Voltage 277 VAC
Poles 1
Phase 1
Mounting Type Surface
Terminal Connection Screw Clamp
Length (in) 4.25
Width (in) 3
Height (in) 4.38
Wire Gauge AWG 14...AWG 12 (Copper)
Standards UL Listed - CSA Certified - CE Marked
Actuator Type Toggle
Voltage Protection Rating 600V
Upc 785901554332
Gtin 785901554332
