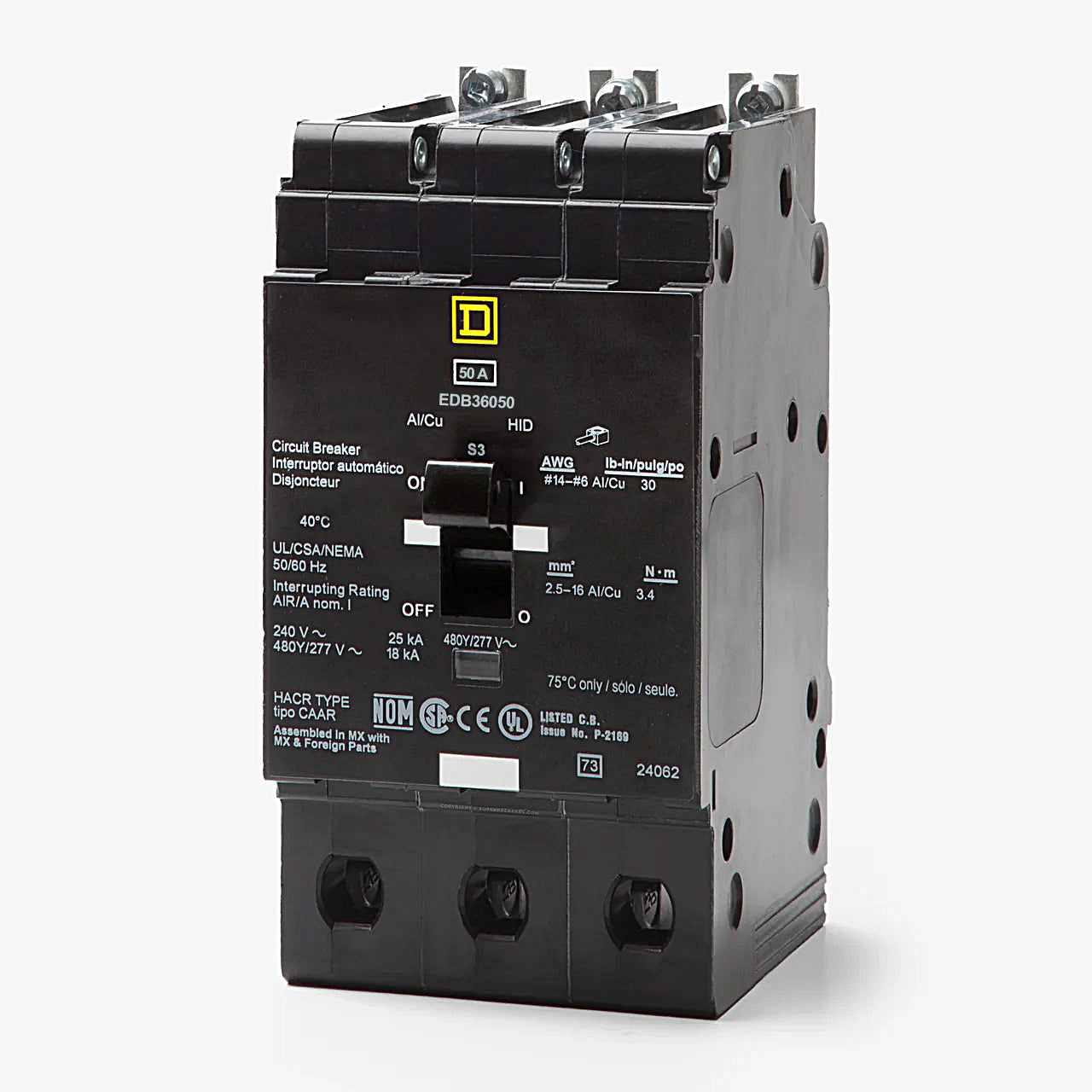

Square D EDB36050 Molded Case Circuit Breaker
- 50A
- 3 Pole
- Bolt-On
Square D
EDB36050
Molded Case Circuit Breaker
Brand
Square D
SKU
EDB36050
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EDB36050 - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Part of Square D's E-Frame lineup, the EDB36050 delivers dependable overcurrent and short-circuit protection for commercial and industrial distribution systems. This unit features a bolt-on mounting style designed specifically for installation in Square D NF panelboards. It accepts 14-2/0 AWG copper or 12-2/0 AWG aluminum wire via load side lugs, ensuring a secure connection. Rated to handle 18 kAIC at 480Y/277V, the breaker utilizes fixed thermal-magnetic trip technology and a Visi-Trip flag.Specifications
| Brand | Square D |
|---|---|
| Part Number | EDB36050 |
| Series | EDB |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 120VAC, 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC |
| Frame Type | EDB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the EDB36050 circuit breaker?
This E-Frame breaker is designed exclusively for bolt-on installation in Square D NF series panelboards. It requires three pole spaces for mounting.
What is the difference between Square D EDB, EGB, and EJB breakers?
All three are E-Frame breakers that fit NF panelboards, but they have different interrupting ratings at 480Y/277V. The EDB is standard-rated at 18 kAIC, the EGB is high-interrupting at 35 kAIC, and the EJB is extra-high interrupting at 65 kAIC.
What are the lug tightening torque specifications for the EDB36050?
For the factory-installed aluminum lugs, the required tightening torque is 34.5 lb-in (3.9 N-m) for 14-10 AWG wire, and 49.6 lb-in (5.6 N-m) for 8-2/0 AWG wire.
Can the EDB36050 be used in reverse-feed applications?
Yes, Square D EDB series breakers are suitable for reverse-feed applications. This allows them to be back-fed when utilized as a main breaker in a panelboard.
Is there a direct replacement for the EDB36050 if a higher interrupting rating is required?
Yes, if your system requires a higher fault current rating, you can use the EGB36050 (35 kAIC at 480Y/277V) or the EJB36050 (65 kAIC at 480Y/277V). Both share the same physical dimensions and bolt-on mounting as the EDB36050.
Is the EDB36050 rated for HVAC and lighting loads?
Yes, this breaker is both HACR-rated for heating, air conditioning, and refrigeration equipment, and HID-rated for high-intensity discharge lighting applications.
Does the EDB36050 feature a visual trip indicator?
Yes, it includes the Square D Visi-Trip indicator. When the breaker trips due to an overcurrent or short circuit, the handle snaps to a midpoint position and a highly visible red flag appears to help quickly locate the tripped circuit.
