Square D EGB14035 Miniature Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Square D
EGB14035
Miniature Circuit Breaker
Brand
Square D
SKU
EGB14035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB14035 - 35A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
Description

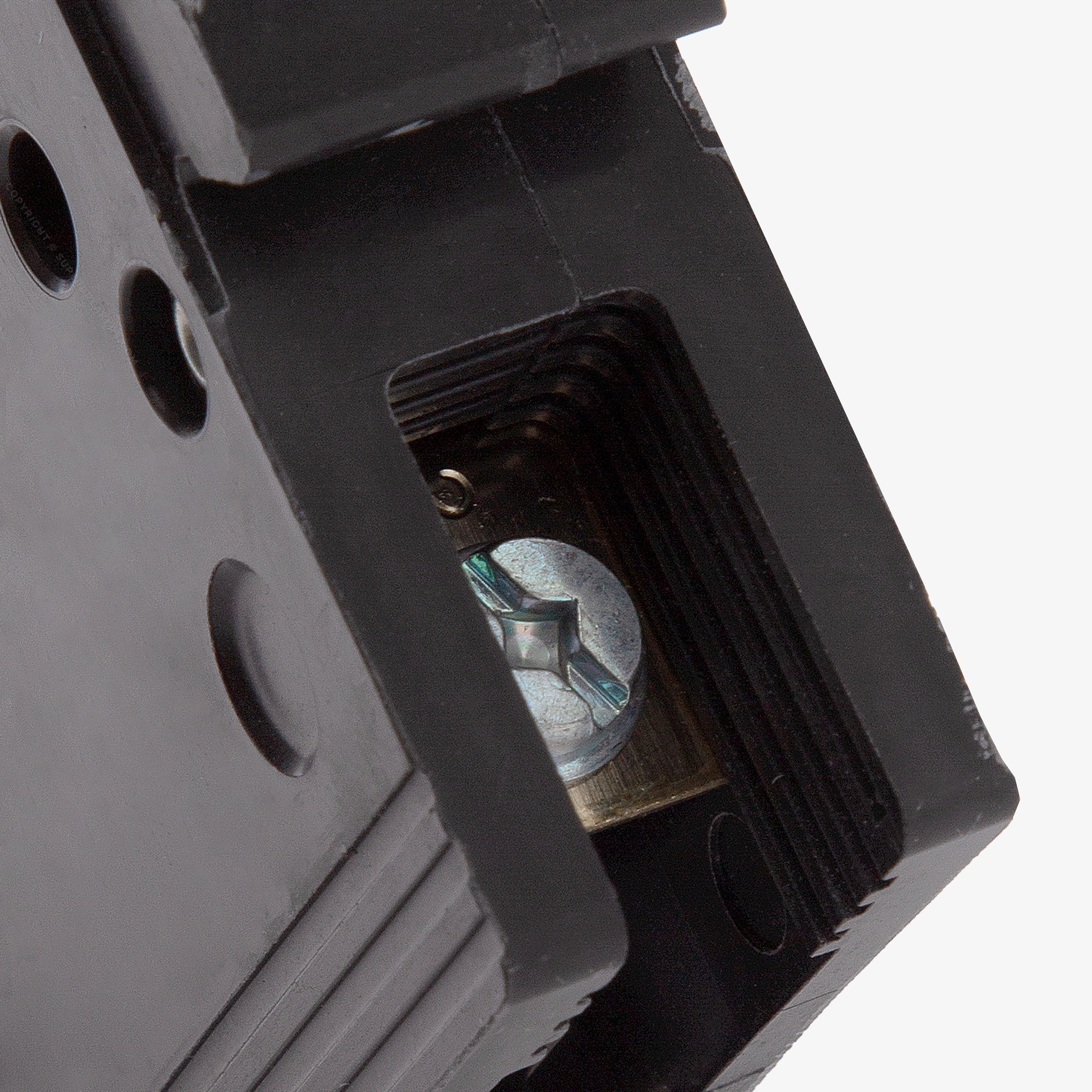

Rated at 35 amps, this single-pole E-Frame device supplies essential thermal-magnetic protection for commercial facilities. It safeguards branch circuits against overloads. Mounting into NF panelboards requires a standard bolt-on installation, ensuring a reliable connection. Load-side lugs accept 14-2/0 AWG copper or 12-2/0 AWG aluminum wiring. A 65kA interrupting capacity at 120VAC ensures excellent fault clearance. It includes a Visi-Trip red indicator flag to simplify troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Series | EGB |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 35kA @ 240VAC, 35kA @ 277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, RoHS, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat panelboards are compatible with the EGB14035 circuit breaker?
The EGB14035 is an E-frame breaker designed specifically for use in Square D NF series panelboards. It cannot be installed in NQ panelboards, which require QO or QOB breakers, or I-Line panelboards.
What is the difference between Square D EDB, EGB, and EJB circuit breakers?
These E-frame breakers share the same physical footprint and mount in NF panelboards, but they feature different interrupting ratings. At 277VAC, the EDB is rated at 18kA, the EGB is rated at 35kA, and the EJB is rated at 65kA.
What does the LI trip function code mean on the EGB14035?
The LI designation indicates that this thermal-magnetic breaker includes both Long-Time (L) and Instantaneous (I) trip functions. The long-time function protects against sustained overloads, while the instantaneous function trips immediately during a short circuit.
Does the EGB14035 feature a tripped status indicator?
Yes, this breaker includes the Square D Visi-Trip indicator. When the breaker trips, the handle moves to a center position and a highly visible red indicator appears, making it easy to identify the tripped breaker in a crowded NF panelboard.
Is the EGB14035 HACR rated?
Yes, Square D E-frame breakers in this amperage range, including the EGB14035, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Does the EGB14035 provide ground fault protection?
No, the standard EGB14035 provides thermal-magnetic overload and short-circuit protection only. For 30 mA equipment ground fault protection, you would need to source an E-frame EPD (Equipment Protection Device) variant, which occupies two pole spaces in the panelboard.
