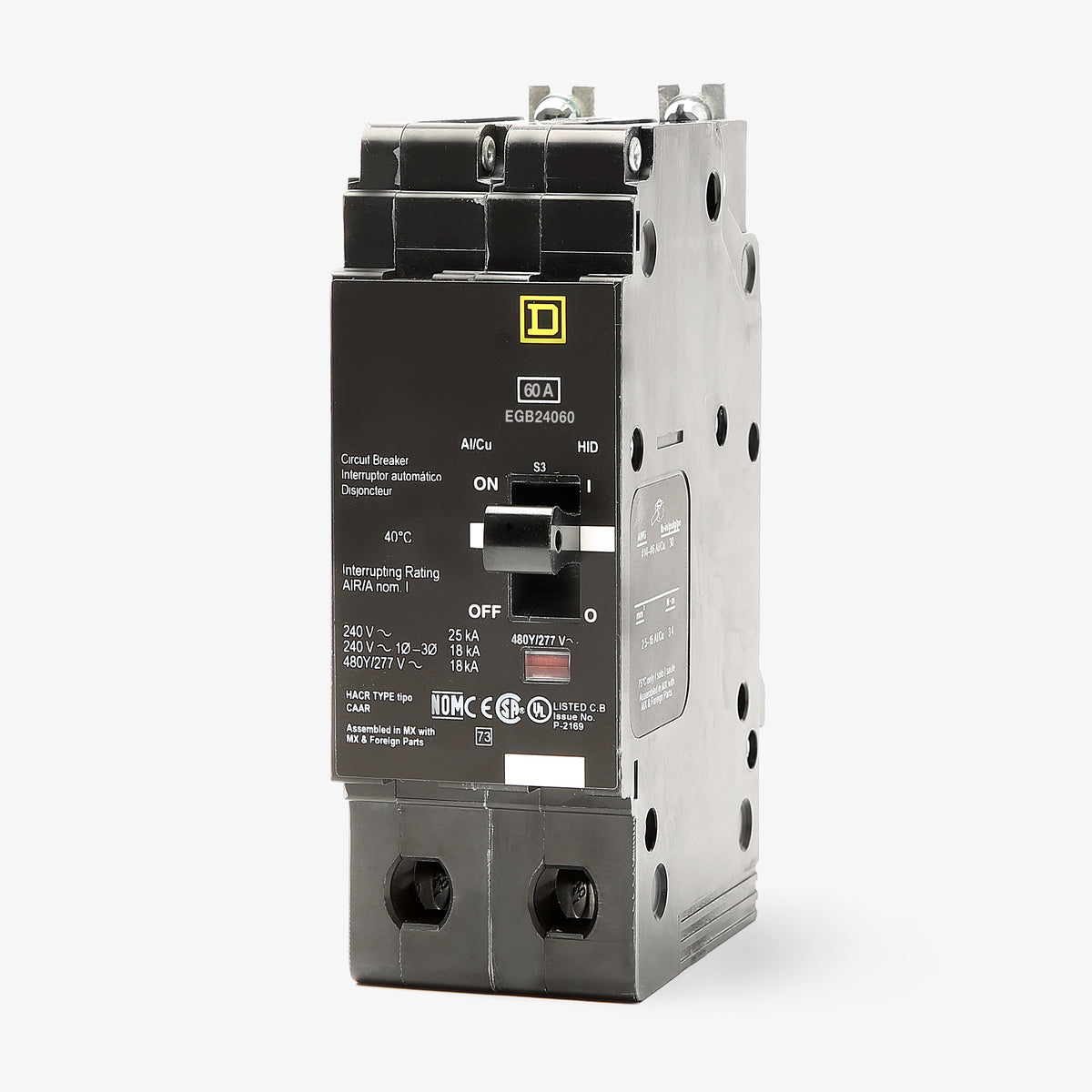

Square D EGB24060 Miniature Circuit Breaker
- 60A
- 2 Pole

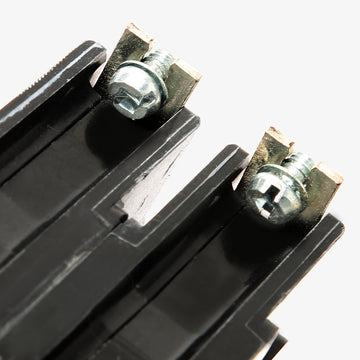

- Bolt-On
Square D
EGB24060
Miniature Circuit Breaker
Brand
Square D
SKU
EGB24060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB24060 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D EGB24060 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB24060 |
| Series | EGB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Sold out
Quantity
Square D EGB24060 - 60A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB24060-R |
| Series | EGB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Similar Items
45A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description

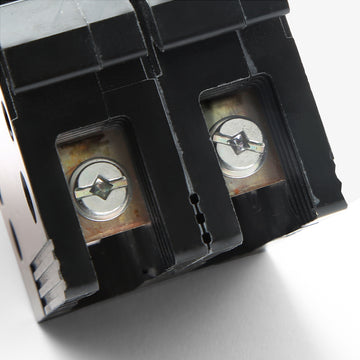

Serving commercial and industrial electrical systems, this 60A two-pole breaker delivers reliable overcurrent protection. The E-frame design incorporates fixed thermal and magnetic trip elements for standard branch circuit applications. Installation requires a bolt-on connection into Square D NF panelboards. It accepts 14 to 2/0 AWG copper or aluminum wiring via the included load-side lugs. Rated for 65kA interrupting capacity at 240V, it handles demanding fault conditions with ease.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB24060 |
| Series | EGB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat are the lug torque specifications for the EGB24060?
For 14 to 10 AWG wire, torque the lugs to 34.5 lb-in. For 8 to 2/0 AWG wire, torque to 49.6 lb-in.
Is the EGB24060 suitable for HVAC and lighting applications?
Yes, this breaker is HACR rated for heating, air conditioning, and refrigeration equipment, and HID rated for high-intensity discharge lighting circuits.
Which panelboards accept the EGB24060 circuit breaker?
This E-frame breaker is designed exclusively for bolt-on installation in Square D NF series panelboards.
Can I use the EGB24060 to replace an EDB24060?
Yes. Both are E-frame breakers that fit NF panelboards. The EGB24060 provides a higher interrupting rating of 35kA at 480Y/277VAC, compared to the 18kA rating of the EDB24060, making it a direct and safe upgrade.
Can this E-frame breaker be reverse fed?
Yes. Standard EGB breakers do not have line and load markings, meaning they are suitable for reverse feeding in backfed main applications per NEC guidelines.
How does the EGB24060 indicate a tripped condition?
It features a Visi-Trip indicator that displays a highly visible red flag in the window when the breaker trips due to an overcurrent or short circuit event.
