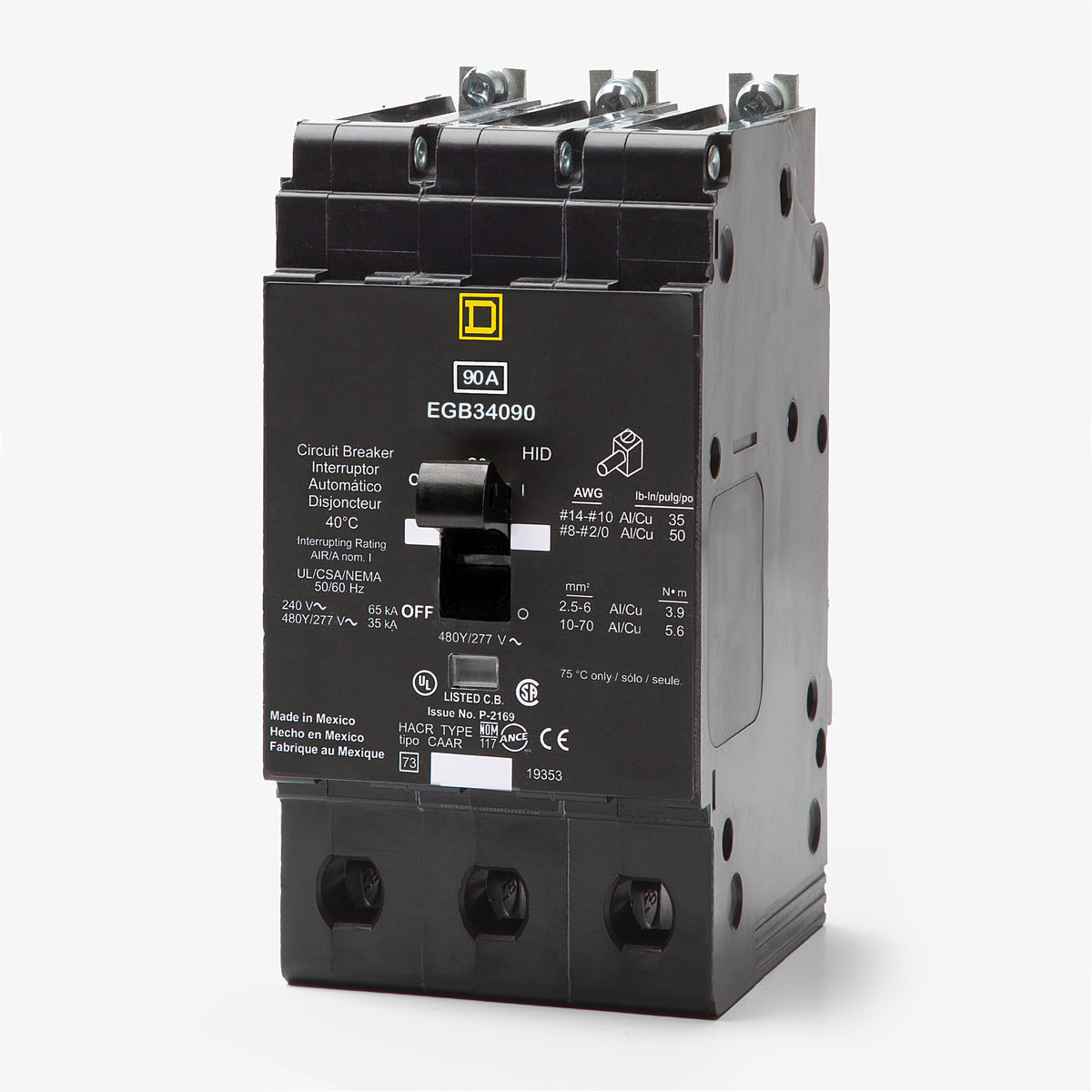

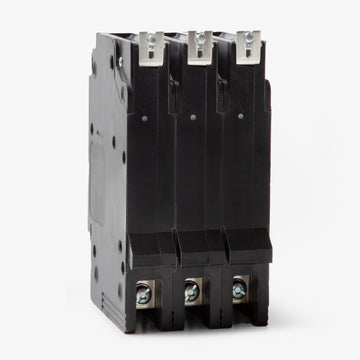

Square D EGB34090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Square D
EGB34090
Molded Case Circuit Breaker
Brand
Square D
SKU
EGB34090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EGB34090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EGB34090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34090 |
| Series | EGB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, NOM 117, RoHS, UL 489 |
| Approval | CSA, cULus, HACR, NOM, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EGB34090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EGB34090-R |
| Series | EGB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, NOM 117, RoHS, UL 489 |
| Approval | CSA, cULus, HACR, NOM, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Designed specifically for Square D NF panelboards, this 90-amp molded case breaker provides dependable thermal-magnetic trip performance. The three-pole unit handles commercial and industrial loads with an impressive 65kA interrupting rating at 240V. Its bolt-on mounting style guarantees a tight, vibration-resistant connection within the enclosure. Standard features include factory-installed aluminum lugs for versatile wire termination and a Visi-Trip flag to quickly spot tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EGB34090 |
| Series | EGB |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC |
| Frame Type | EGB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-2/0 AWG (Cu), 12-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, NOM 117, RoHS, UL 489 |
| Approval | CSA, cULus, HACR, NOM, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the Square D EGB34090?
This bolt-on circuit breaker is designed exclusively for use in Square D NF series panelboards. It will not fit in QO, I-Line, or NQ panelboards.
Can the EGB34090 be installed in 120V or 240V systems?
Yes. Although its maximum voltage rating is 480Y/277VAC, it is fully rated for lower voltage AC systems, where it provides an increased short-circuit interrupting capacity of 65kA.
What are the direct alternatives to the EGB34090 if a different interrupting rating is required?
For the exact same 90A, 3-pole footprint in an NF panelboard, use the EDB34090 (rated 18kA at 480Y/277VAC) for lower fault current requirements, or the EJB34090 (rated 65kA at 480Y/277VAC) for higher interrupting capacity.
What wire sizes do the factory lugs on the EGB34090 accept?
The standard mechanical lugs accept 14 AWG to 2/0 AWG copper wire, or 12 AWG to 2/0 AWG aluminum wire.
Is the thermal-magnetic trip unit on the EGB34090 adjustable?
No. Both the thermal overload (long-time) and magnetic short-circuit (instantaneous) trip thresholds are factory set and cannot be field adjusted.
Is the EGB34090 approved for use with HVAC equipment?
Yes, it is HACR rated, meaning it is certified by UL for the safe operation of heating, air conditioning, and refrigeration motor loads.
How is the EGB34090 secured inside the panel?
It features a bolt-on design that screws directly into the busbar assembly of an NF panelboard. This provides a highly reliable, vibration-resistant electrical contact.
