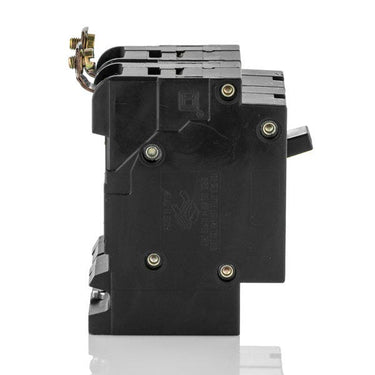

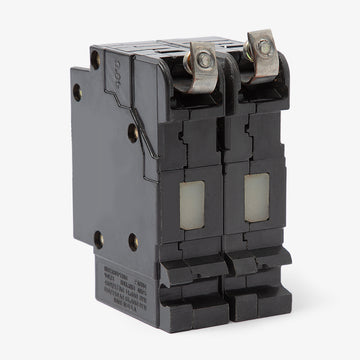

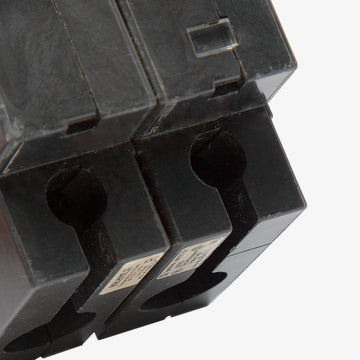

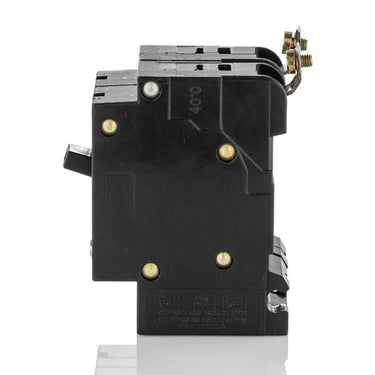

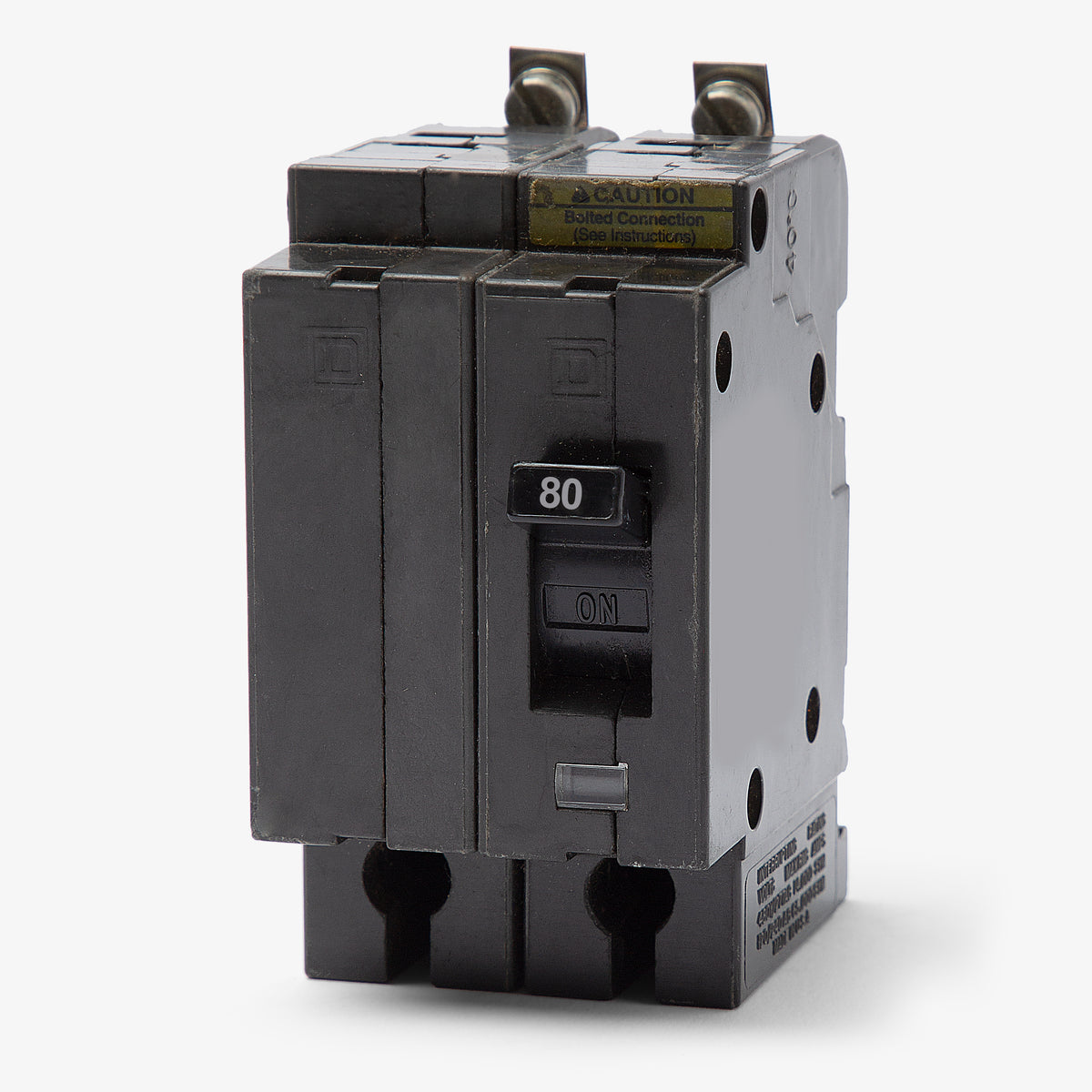

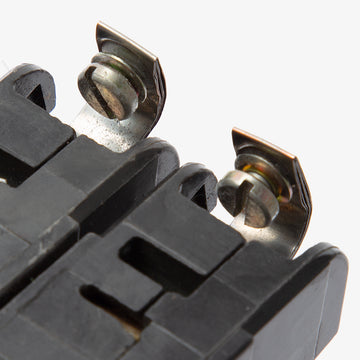

Square D EHB24080 Molded Case Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Square D
EHB24080
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB24080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB24080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D EHB24080 - 80A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24080-R |
| Series | EHB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB24080 - 80A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24080 |
| Series | EHB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
100A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Part of the legacy EHB series, this 2-pole, 80A molded case circuit breaker is designed for commercial power distribution. It utilizes fixed thermal and magnetic trip elements to deliver dependable overload and short-circuit protection. The breaker features a bolt-on mounting style exclusively for use with Square D NEHB panelboards. If upgrading to the newer EDB24080 substitute, an NF series panelboard is required. With an interrupting rating of 65kA at 240VAC, it handles demanding loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24080 |
| Series | EHB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4-2/0 AWG (Al/Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards accept the Square D EHB24080 circuit breaker?
This breaker is designed specifically for legacy Square D NEHB panelboards. It will not fit in newer NF series panels.
Is there a direct modern replacement for the EHB24080 in NEHB panels?
No. The EHB series is a legacy product, and newer EDB series breakers will not fit into NEHB panelboards. If you are maintaining an existing NEHB panel, you must use an EHB breaker. Upgrading to EDB breakers requires a complete panelboard replacement to the NF series.
Can the EHB24080 be used on a 240V system?
Yes. While it is rated for up to 480Y/277VAC with a 14kAIC rating, it is fully compatible with 120/240VAC systems, where it provides a much higher interrupting capacity of 65kAIC.
Do I need to purchase separate lugs for the EHB24080?
No. The breaker comes with factory-installed lugs that accept aluminum or copper conductors ranging from 4 AWG to 2/0 AWG.
Does the EHB24080 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker providing long-time overload and instantaneous short-circuit protection. It does not include GFCI or AFCI capabilities.
Are the trip settings on the EHB24080 adjustable?
No. This breaker features fixed thermal and fixed magnetic trip elements. The trip curve cannot be adjusted in the field.
