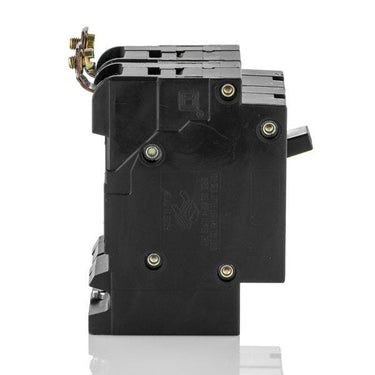

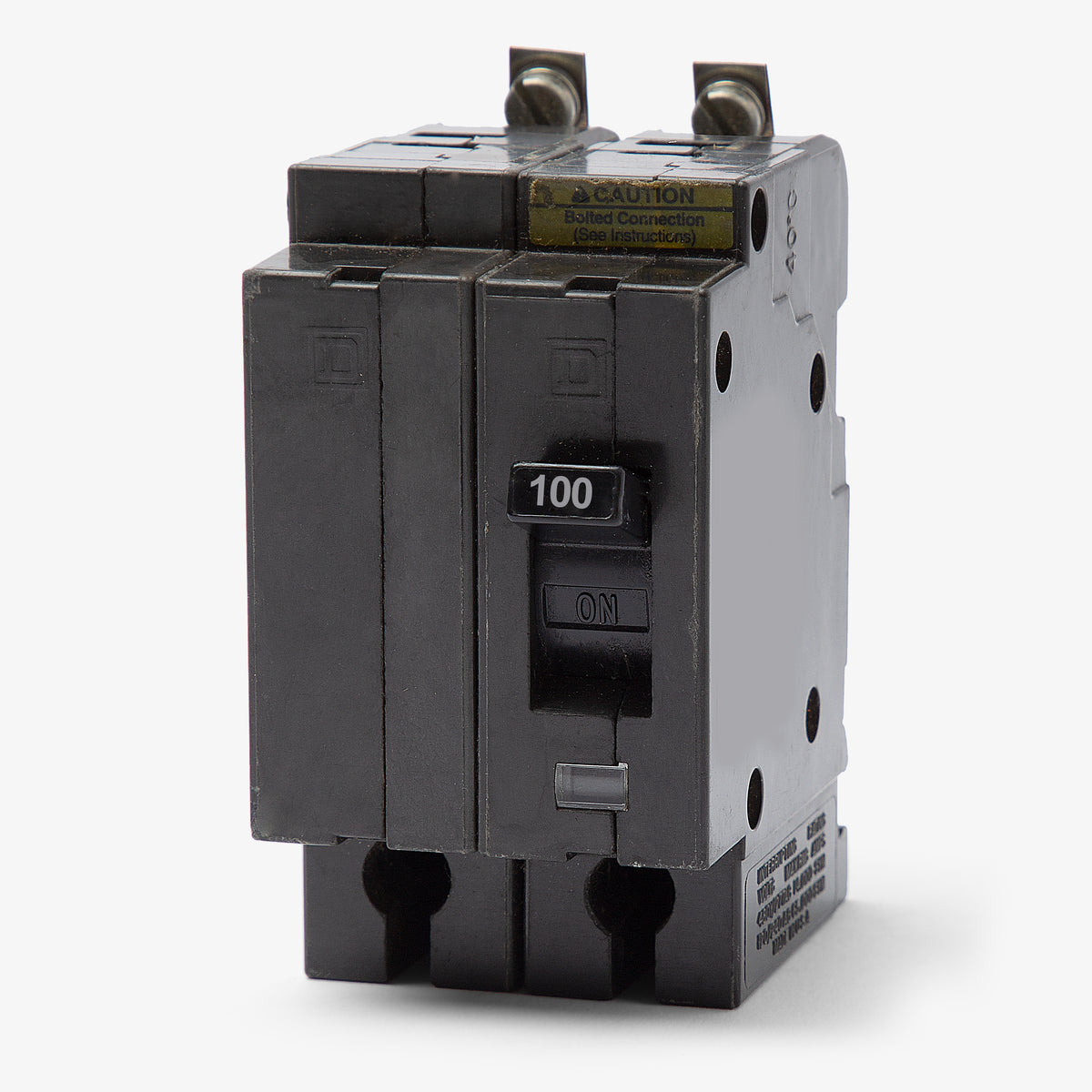

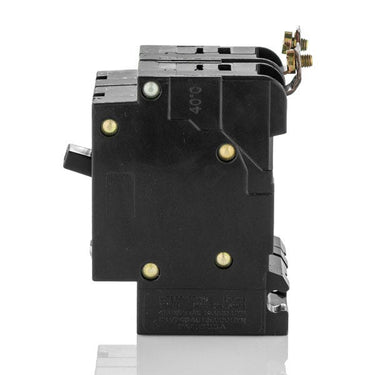

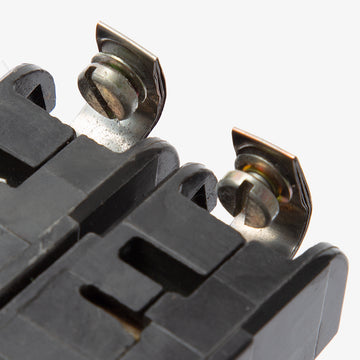

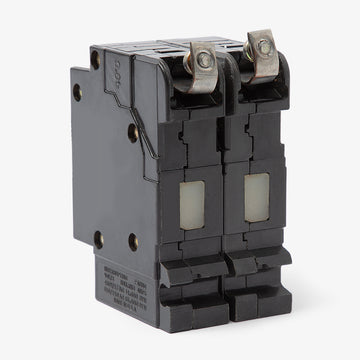

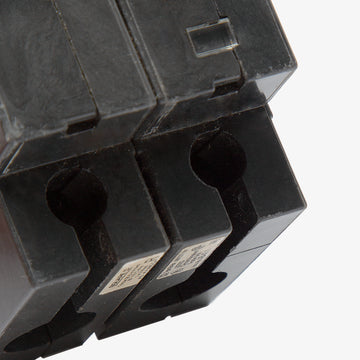

Square D EHB24100 Molded Case Circuit Breaker
- 100A
- 2 Pole
- Bolt-On
Square D
EHB24100
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB24100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB24100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D EHB24100 - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24100 |
| Series | EHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Sold out
Quantity
Square D EHB24100 - 100A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB24100-R |
| Series | EHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Similar Items
80A 2 Pole Molded Case Circuit Breaker
50A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Rated for 100 amps, this 2-pole molded case circuit breaker provides essential overcurrent protection for commercial and industrial setups. It is specifically designed to mount into obsolete Square D NEHB panelboards using a bolt-on connection. Facilities looking to upgrade to the newer EDB24100 will need to install a compatible NF panelboard. The breaker features a 14kAIC rating at 480Y/277V, HACR certification, and a Visi-Trip indicator to streamline maintenance and troubleshooting.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB24100 |
| Series | EHB |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 4 AWG - 2/0 AWG (Cu/Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EHB24100?
This breaker is designed exclusively for use in legacy Square D NEHB panelboards. It features a bolt-on mounting style specific to the bus architecture of this panelboard series.
Can I use an EDB series breaker to replace the EHB24100 in my current panel?
No. While the EDB series is the modern equivalent to the legacy EHB series, EDB breakers are designed for NF series panelboards and will not fit into an NEHB panelboard.
What does the 480/277VAC slash rating indicate for this breaker?
The slash rating indicates the breaker can safely interrupt fault currents on a 480Y/277V solidly grounded wye system where the line-to-ground voltage does not exceed 277V. It is not rated for 480V ungrounded or corner-grounded delta systems.
Can the EHB24100 be used on 120/240V or 240V systems?
Yes. While it is rated for up to 480Y/277VAC, it is fully compatible with 120/240V and 240V systems. When applied at these lower voltages, the interrupting capacity increases to 65kAIC.
Is the Square D EHB series still in active production?
The EHB series is a legacy product line that has been discontinued by the manufacturer. Exact replacements are used to maintain existing NEHB panelboards without requiring a full panel upgrade.
How many panel spaces does the EHB24100 occupy?
As a 2-pole E-frame breaker, it occupies two spaces in an NEHB panelboard. Each pole is 1 inch wide, making the total breaker width 2 inches.
