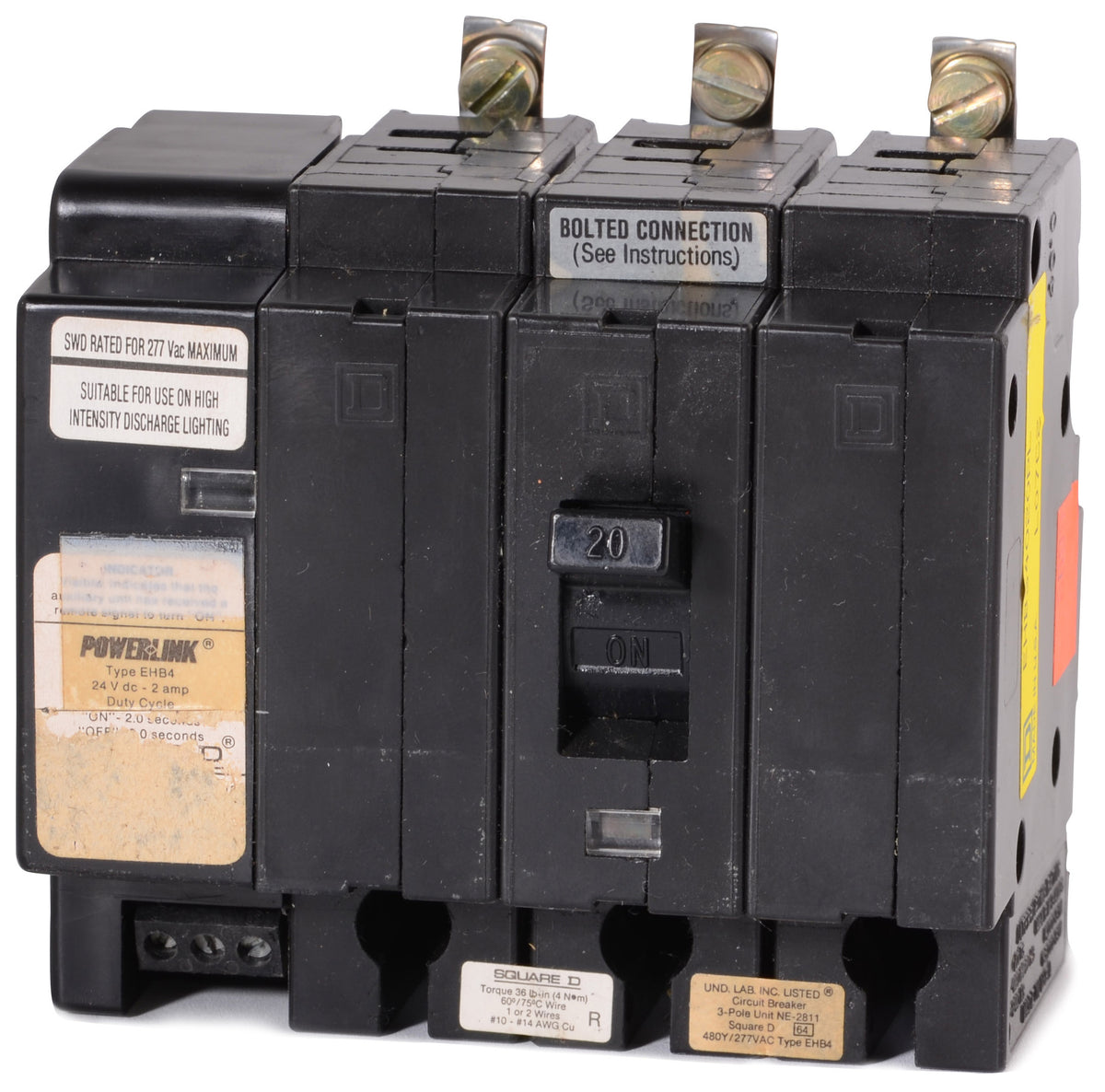

Square D EHB34020PL Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
Square D
EHB34020PL
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34020PL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34020PL - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB34020PL - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34020PL |
| Series | EHB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards, Powerlink Systems |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Powerlink, Remotely Operated |
Quantity
Square D EHB34020PL - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards, Powerlink Systems |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Powerlink, Remotely Operated |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Tailored for intelligent power distribution, the EHB34020PL provides reliable 20-amp protection alongside remote operational features. It serves commercial facilities depending on automated switching for lighting loads. This bolt-on device fits into Square D NEHB panelboards configured for Powerlink systems, maintaining compatibility with legacy automated setups. Delivering a 65kA interrupting capacity at 240VAC, it ensures robust defense against faults and features a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | EHB |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NEHB Panelboards, Powerlink Systems |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Powerlink, Remotely Operated |
Product FAQs
5 answersWhat panelboards are compatible with the EHB34020PL?
This breaker is designed exclusively for legacy Square D NEHB panelboards. It is specifically configured to integrate with Powerlink automated power distribution systems.
What does the PL suffix mean in the EHB34020PL part number?
The PL suffix indicates compatibility with Square D Powerlink systems. These breakers support remote operation and automated switching, which is commonly used for commercial lighting and intelligent power management.
Is the EHB series still actively manufactured by Square D?
The EHB series is part of the legacy NEHB family and has been discontinued by the manufacturer. These breakers are primarily sourced to maintain and service existing installations.
How does the interrupting capacity change based on system voltage?
The breaker provides a robust 65kA interrupting capacity on 240VAC systems. However, when installed in 480Y/277VAC applications, the maximum interrupting rating is 14kA. Always verify your available fault current before installation.
What safety precautions are required when installing this Powerlink breaker?
Installation must be performed by a qualified electrician. Ensure all power to the NEHB panelboard is completely de-energized, locked out, and tagged out before bolting the breaker to the busbar.
