Square D EHB34045 Molded Case Circuit Breaker
- 45A
- 3 Pole
- Bolt-On
Square D
EHB34045
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34045
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

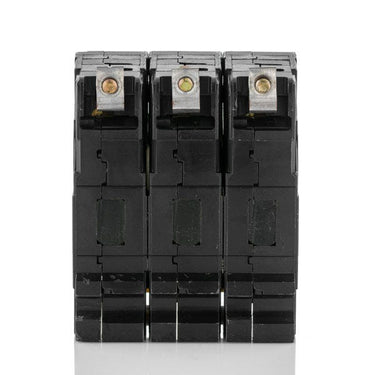

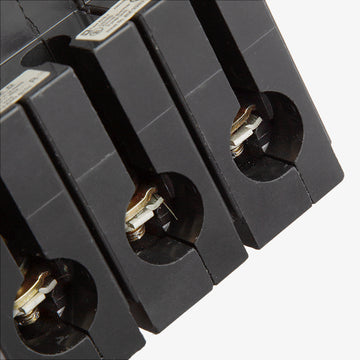

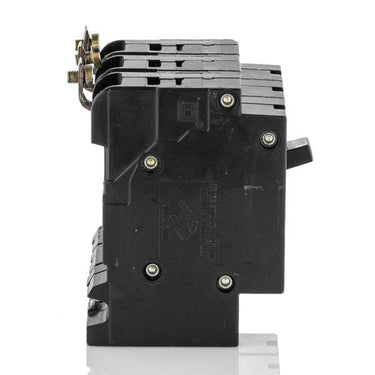

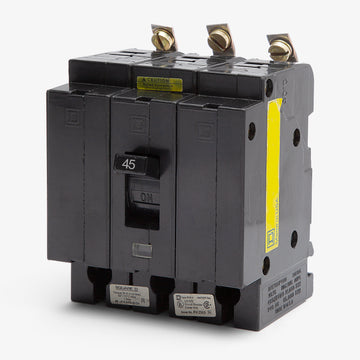

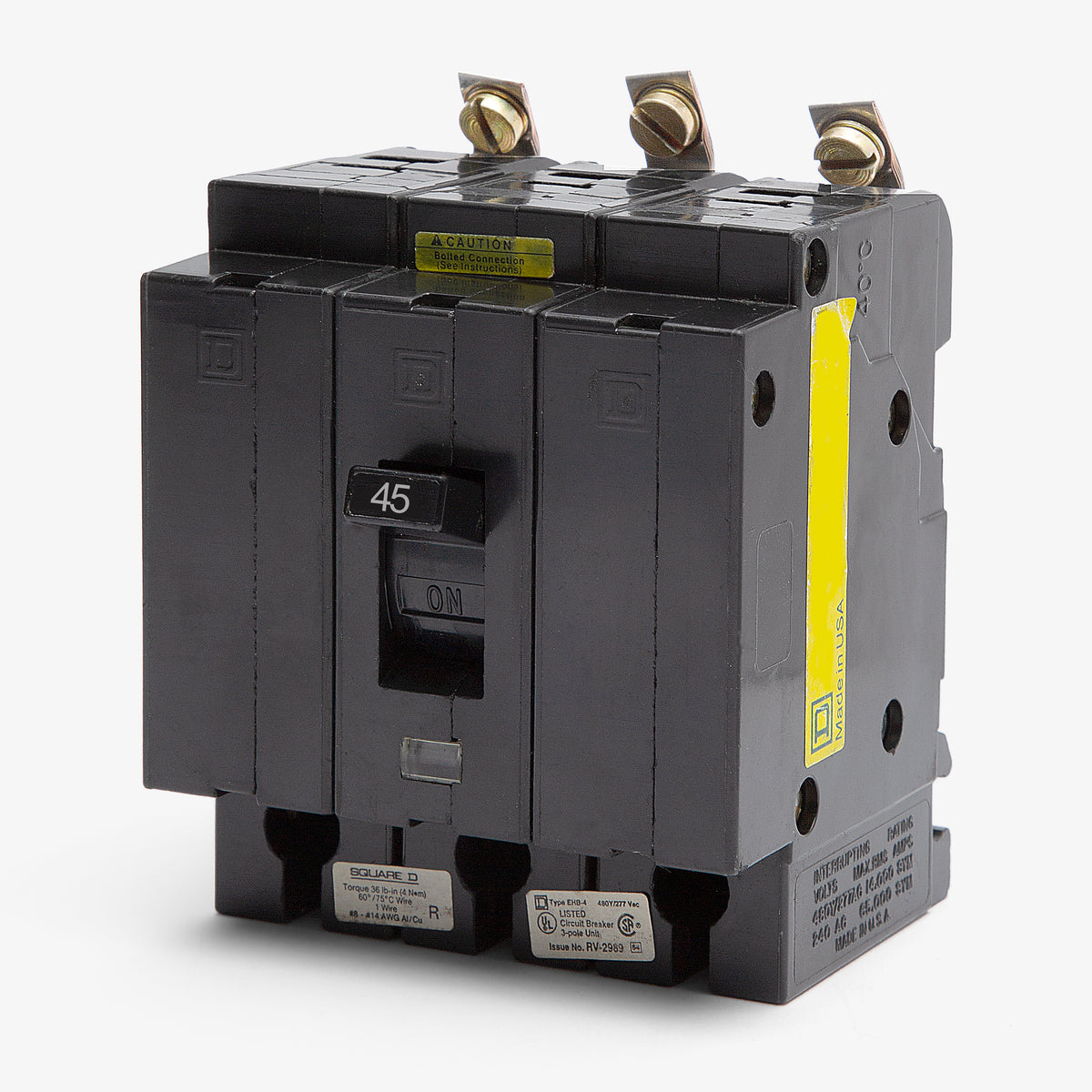

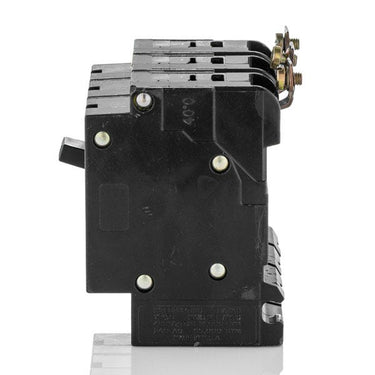

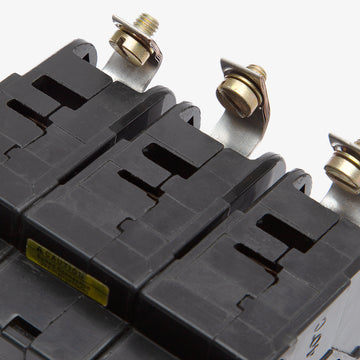

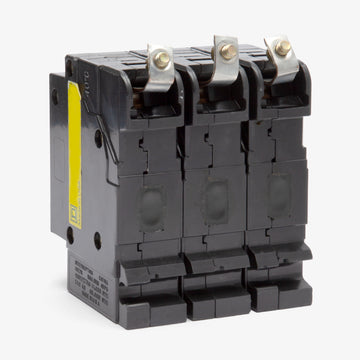

Square D EHB34045 - 45A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
35A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Built specifically for commercial power distribution, this 45-amp device handles demanding three-phase loads. It mounts into legacy Square D NEHB panelboards, serving as a critical maintenance component for facilities that have not yet transitioned to modern NF enclosures. The unit provides robust fault clearing with a 65kA interrupting capacity at 240VAC. Operators benefit from the built-in Visi-Trip visual indicator, which simplifies troubleshooting by clearly identifying tripped circuits.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34045-R |
| Series | EHB |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14 AWG-2/0 AWG (Cu), 12 AWG-2/0 AWG (Al) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the Square D EHB34045 circuit breaker?
The EHB34045 is designed exclusively for use in legacy Square D NEHB lighting and appliance panelboards. It features a bolt-on mounting style specific to this series and will not fit in modern NF or NQ panels.
Can I use a modern EDB series breaker to replace the EHB34045 in my NEHB panelboard?
No, EDB breakers are not interchangeable with EHB breakers and cannot be installed in NEHB panelboards. Because the EHB series is a legacy product, you must use an exact EHB replacement like the EHB34045 to maintain your existing NEHB panelboard.
What wire sizes and materials are supported by the terminals on the EHB34045?
The factory-installed lugs accept both copper and aluminum conductors. You can use 14 AWG to 2/0 AWG for copper wire, or 12 AWG to 2/0 AWG for aluminum wire. Ensure proper torque specifications are followed during installation.
Is the EHB34045 rated for use on 480V systems?
Yes, it is rated for use on 480Y/277V AC systems with an interrupting capacity of 14kA. It can also be used on 240V AC systems, where it carries a higher interrupting rating of 65kA.
Can I adjust the trip curve on the EHB34045 breaker?
No, the thermal-magnetic trip unit on the EHB34045 is fully fixed. Both the long-time (overload) and instantaneous (short-circuit) trip functions are factory-calibrated and cannot be adjusted in the field.
