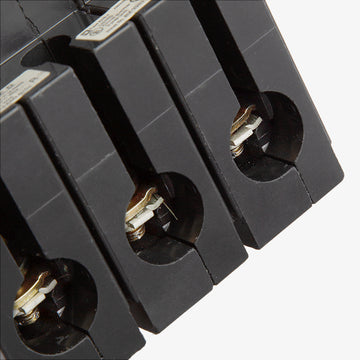

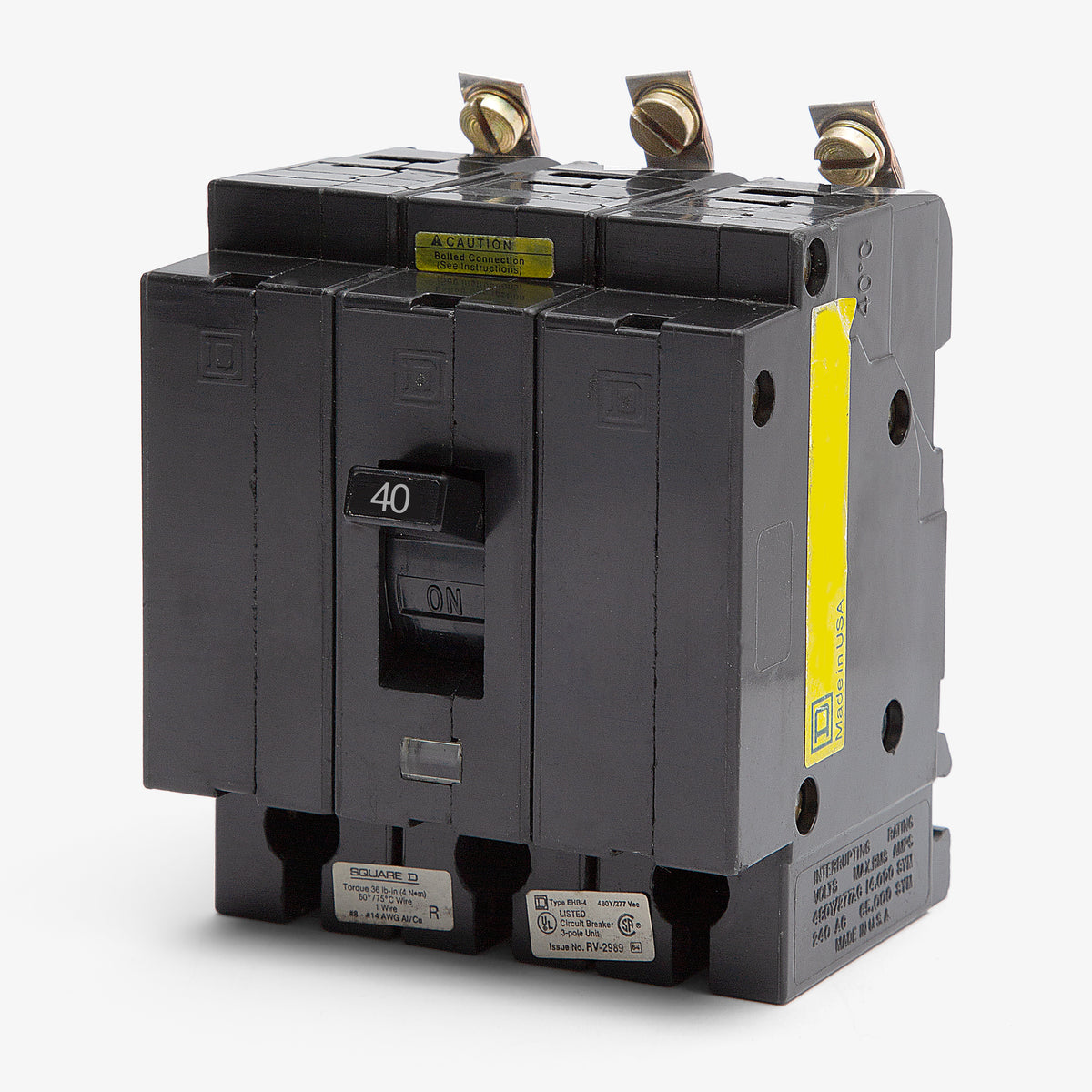

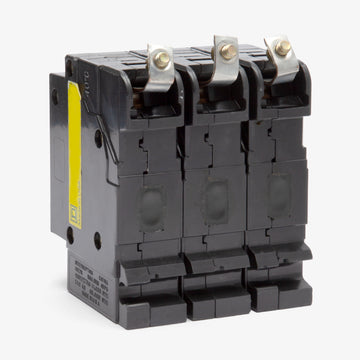

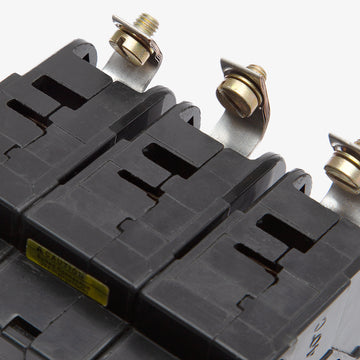

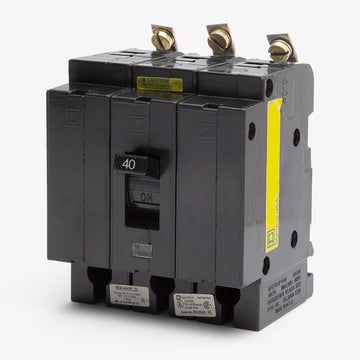

Square D EHB34040 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Square D
EHB34040
Molded Case Circuit Breaker
Brand
Square D
SKU
EHB34040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EHB34040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D EHB34040 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34040-R |
| Series | EHB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D EHB34040 - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | EHB34040-R |
| Series | EHB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
35A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Rated for 40 amps, this three-phase molded case breaker offers robust overcurrent defense in industrial environments. It utilizes fixed thermal and magnetic trip elements to safeguard commercial wiring. The bolt-on design installs securely into older NEHB lighting and distribution panels. When upgrading infrastructure, the EDB34040 serves as the modern substitute but necessitates transitioning to an NF panelboard. With an interrupting capacity of 14kA at 480Y/277VAC, it meets demanding specs.Specifications
| Brand | Square D |
|---|---|
| Part Number | EHB34040-R |
| Series | EHB |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D NEHB Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhich panelboards are compatible with the EHB34040 circuit breaker?
This breaker is specifically designed for bolt-on installation in legacy Square D NEHB lighting and distribution panelboards. It cannot be installed in modern NF or NQ series panels.
Can I use an EDB34040 as a direct replacement for this breaker?
No. While the EDB34040 serves as the modern replacement series, EDB breakers are only compatible with newer NF panelboards. You must use an EHB series breaker to maintain and service an existing NEHB panelboard without replacing the entire enclosure.
Are load-side lugs included with this breaker?
Yes, the EHB34040 comes with factory-installed load lugs. These lugs accept copper conductors from 14 to 2 AWG or aluminum conductors from 12 to 2 AWG.
Does the EHB34040 require separate mounting hardware to install?
No additional mounting kits are required. The breaker bolts directly to the panel bus bars inside an NEHB panelboard. Always ensure the panel bus is completely de-energized before beginning installation or removal.
Is this breaker suitable for heating and cooling equipment?
Yes, the EHB34040 is HACR rated, making it fully approved for heating, air conditioning, and refrigeration applications that require specialized motor branch-circuit protection.
