Square D EJB24025 Miniature Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Square D
EJB24025
Miniature Circuit Breaker
Brand
Square D
SKU
EJB24025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

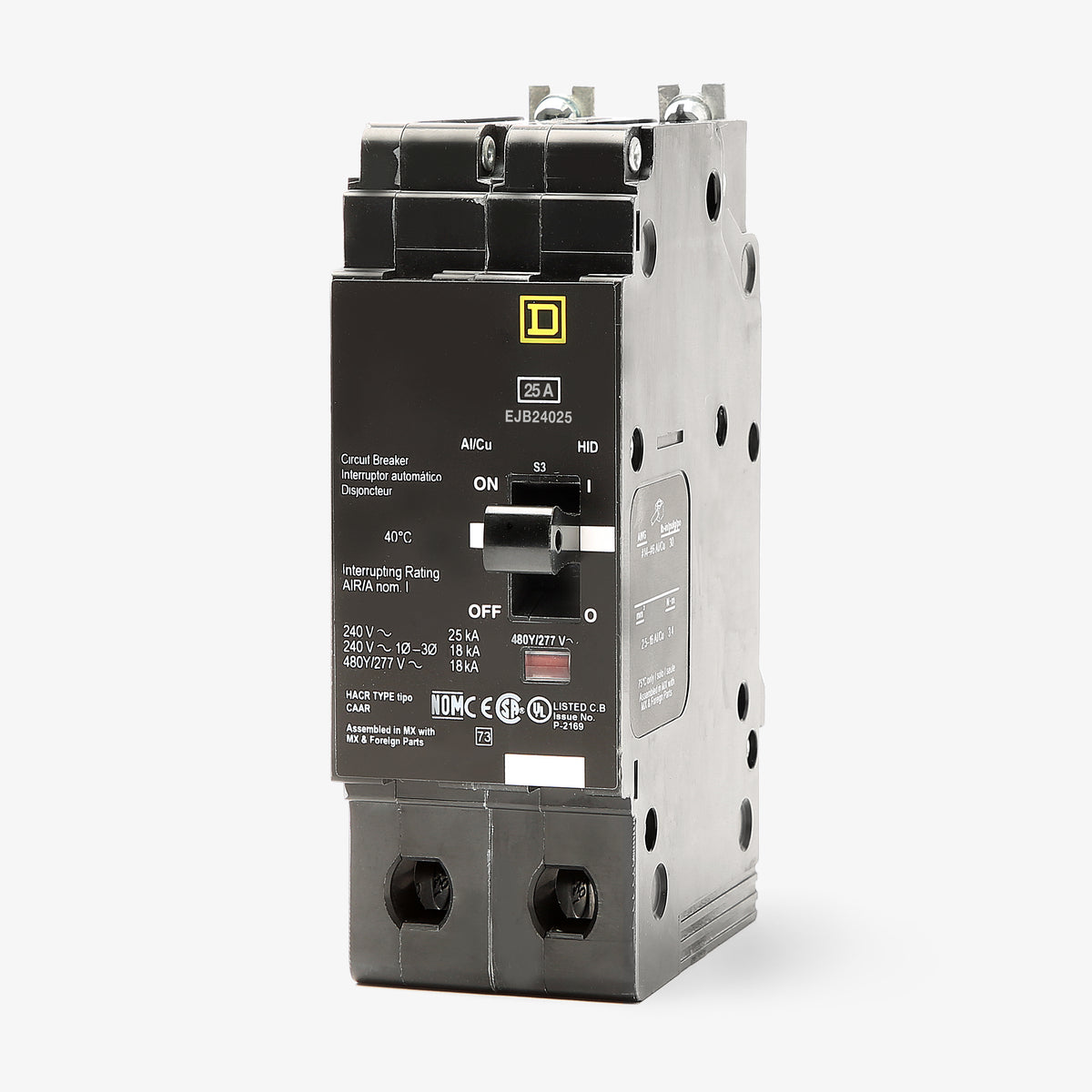

Square D EJB24025 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Miniature Circuit Breaker
35A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
Description
Serving industrial and commercial facilities, the 25-amp EJB series breaker delivers consistent long-time and instantaneous trip functions. The E-Frame construction ensures durability in heavy-duty power distribution networks. Designed exclusively for Square D NF panelboards, the bolt-on connection provides a stable mechanical and electrical fit. Aluminum lugs are included to accommodate standard wire gauges.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB24025 |
| Series | EJB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 480Y/277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 480Y/277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 14-6 AWG (Cu), 12-6 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG (Cu) / 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Aluminum Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, HID, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat panelboards are compatible with the Square D EJB24025?
The EJB24025 is designed specifically for use in Square D NF series panelboards. It mounts directly to the panel bus using a bolt-on connection.
Can I use the EJB24025 to replace an EDB24025 or EGB24025 breaker?
Yes. The EJB24025 shares the same physical dimensions and mounting as EDB and EGB breakers but offers a higher interrupting rating (65kA at 480Y/277VAC). Upgrading to a higher AIC rating is generally acceptable when replacing a breaker in an NF panelboard.
What do the hold and trip currents signify for the EJB24025?
This thermal magnetic breaker has a hold current of 270A, which is the maximum current it can sustain without tripping, and a trip current of 875A, which is the threshold where the instantaneous magnetic trip is guaranteed to activate.

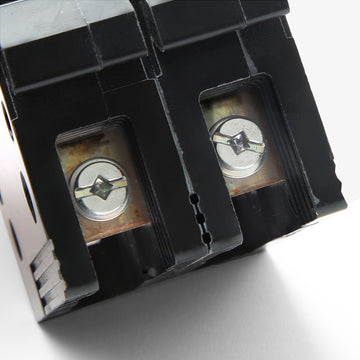

What wire sizes and torque specifications apply to the EJB24025 lugs?
The aluminum lugs accept 14 to 6 AWG copper or 12 to 6 AWG aluminum wire. The recommended tightening torque is 30 lbf-in (3.4 N.m).
What does the J in the EJB frame designation mean?
In Square D E-frame breakers, the middle letter indicates the interrupting capacity at 480Y/277VAC. The J denotes a 65kA rating, compared to D (18kA) and G (35kA).
