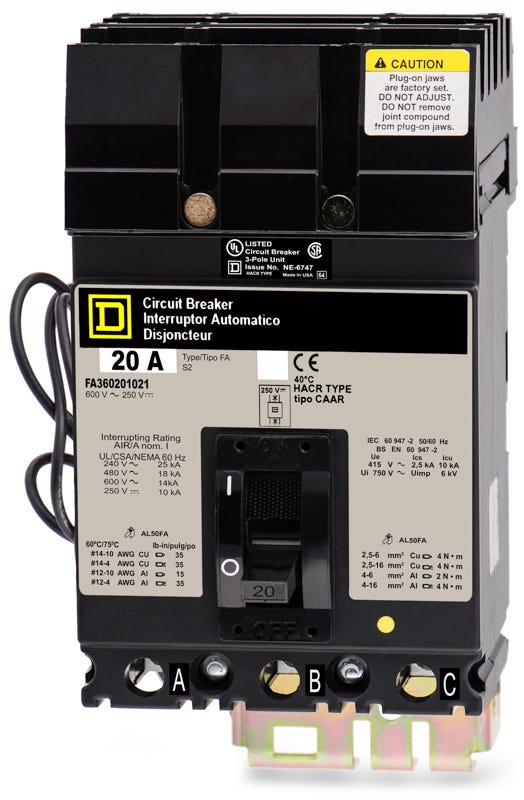

Square D FA36020-1021 Molded Case Circuit Breaker
- 20A
- 3 Pole
- I-Line
Square D
FA36020-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA36020-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA36020-1021 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FA36020-1021 - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA36020-1021-R |
| Series | FA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Quantity
Square D FA36020-1021 - 20A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FA36020-1021-R |
| Series | FA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Similar Items
50A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for advanced control, the Square D FA36020-1021 is a 3-pole, 20A molded case circuit breaker. It features a factory-installed 120-240VAC shunt trip mechanism, allowing users to remotely open the circuit for emergency shutdowns. Designed for Square D I-Line panelboards, this F-frame breaker utilizes a robust plug-on mounting system. It serves as a replacement for older systems and is superseded by the HDA36020SA. It delivers 25kAIC at 240V and includes a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA36020-1021-R |
| Series | FA |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu), 12-4 AWG (Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Shunt Trip (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip |
Product FAQs
6 answersWhat does the -1021 suffix mean on the FA36020-1021 circuit breaker?
The -1021 suffix indicates that this breaker includes a factory-installed 120-240VAC shunt trip mechanism. This allows the circuit to be opened remotely for emergency shutdowns or automated control systems.
What is the modern replacement for the legacy FA36020-1021 breaker?
The Square D FA36020-1021 is part of the legacy F-frame series and has been superseded by the PowerPact H-frame series. The direct modern equivalent with a factory-installed shunt trip is the HDA36020SA.
Which panelboards are compatible with the FA36020-1021?
This breaker features an I-Line plug-on mounting style and is designed exclusively for use in Square D I-Line panelboards and switchboards. It will not fit in standard residential load centers or standard plug-on commercial panels.
How does the shunt trip mechanism on this breaker operate?
The factory-installed shunt trip requires an external 120-240VAC control voltage signal. When voltage is applied to the shunt trip coil from a remote switch or relay, it mechanically trips the breaker to open the circuit.
Does this breaker include a visual trip indicator?
Yes, Square D FA series breakers feature a Visi-Trip indicator. When the breaker trips due to an overcurrent, short circuit, or a shunt trip signal, the handle moves to a center position and a highly visible red indicator appears to help quickly identify the tripped breaker.
Can I adjust the trip settings on the FA36020-1021?
No, this F-frame breaker has fixed thermal and fixed magnetic trip elements. Unlike some larger or electronic trip breakers, the long-time and instantaneous trip points on this model cannot be modified in the field.
