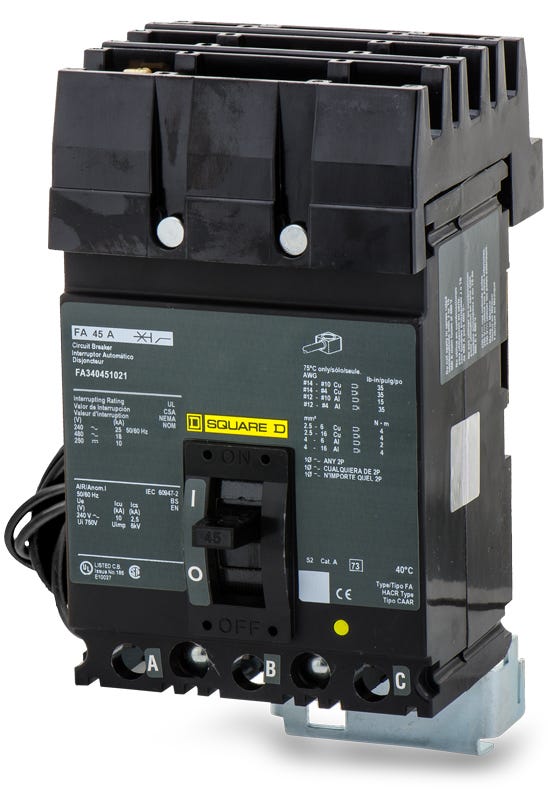

Square D FA34045-1021 Molded Case Circuit Breaker
- 45A
- 3 Pole
- I-Line
Square D
FA34045-1021
Molded Case Circuit Breaker
Brand
Square D
SKU
FA34045-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FA34045-1021 - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Integrating remote disconnect capabilities, this 45A, 3-pole molded case circuit breaker features a factory-installed 120VAC shunt trip. This thermal-magnetic unit provides essential long-time and instantaneous protection for commercial facilities. Designed to fit Square D I-Line panelboards and switchboards, the plug-on configuration minimizes installation time. When upgrading, the PowerPact HDA36045 with an S29386 shunt trip serves as the modern equivalent. Rated 18kAIC at 480V.Specifications
| Brand | Square D |
|---|---|
| Part Number | FA34045-1021 |
| Series | FA |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
4 answersWhat does the -1021 suffix indicate on the FA34045-1021 part number?
The -1021 suffix means this circuit breaker includes a factory-installed 120-240V AC shunt trip. This accessory allows the breaker to be tripped remotely for emergency shutdown or control applications.
What is the modern replacement for the legacy FA34045-1021 breaker?
The modern equivalent for this legacy F-Frame breaker is the Square D PowerPact H-Frame series. You can upgrade using the HDA36045 breaker paired with an S29386 shunt trip accessory.
Can the FA34045-1021 be installed in a standard residential load center?
No. This is a commercial molded case circuit breaker with an I-Line plug-on connection. It is only compatible with Square D I-Line panelboards and switchboards, and will not fit standard QO or Homeline residential panels.
Does the FA34045-1021 include ground fault or arc fault protection?
No, this unit provides standard thermal magnetic protection against overloads and short circuits. It does not feature ground fault (GFCI) or arc fault (AFCI) capabilities.
