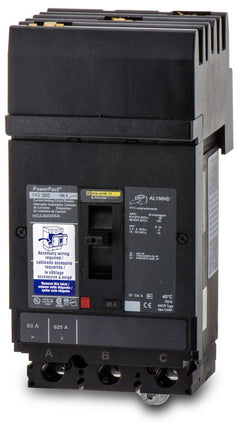

Square D HGA36070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- I-Line
Square D
HGA36070
Molded Case Circuit Breaker
Brand
Square D
SKU
HGA36070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HGA36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HGA36070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36070 |
| Series | HGA |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Sold out
Quantity
Square D HGA36070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HGA36070-R |
| Series | HGA |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
Description
Rated 65 kAIC at 240V, the Square D HGA36070 is a 3-pole, 70A molded case circuit breaker from the PowerPacT H-Frame family. It provides robust thermal-magnetic (LI) protection for demanding commercial and industrial electrical systems. This unit installs into Square D I-Line panelboards and switchboards, featuring an ABC phase connection. It serves as a drop-in replacement for legacy FA36070 and FH36070 breakers, ensuring seamless facility upgrades. It includes factory-installed load side lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | HGA36070 |
| Series | HGA |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 208Y/120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Frame Type | HGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
4 answersWhat panelboards are compatible with the HGA36070 circuit breaker?
The HGA36070 features an I-Line style plug-in connection, making it exclusively compatible with Square D I-Line panelboards and switchboards. It cannot be used in standard unit-mount enclosures or QO and NQ load centers.
What conductor sizes and materials are approved for the HGA36070 terminals?
The factory-installed line and load lugs accept wire sizes ranging from 14 AWG to 3/0 AWG. The terminals are rated for use with both aluminum and copper (Al/Cu) conductors.
Which legacy circuit breakers does the HGA36070 replace?
As a PowerPacT H-Frame breaker, the HGA36070 serves as a direct, drop-in replacement for obsolete F-Frame I-Line breakers, specifically the legacy FA36070 and FH36070 models.
Are the trip settings on the HGA36070 adjustable?
No. The HGA36070 utilizes a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. While it provides long-time and instantaneous (LI) protection, the trip thresholds cannot be modified in the field.
