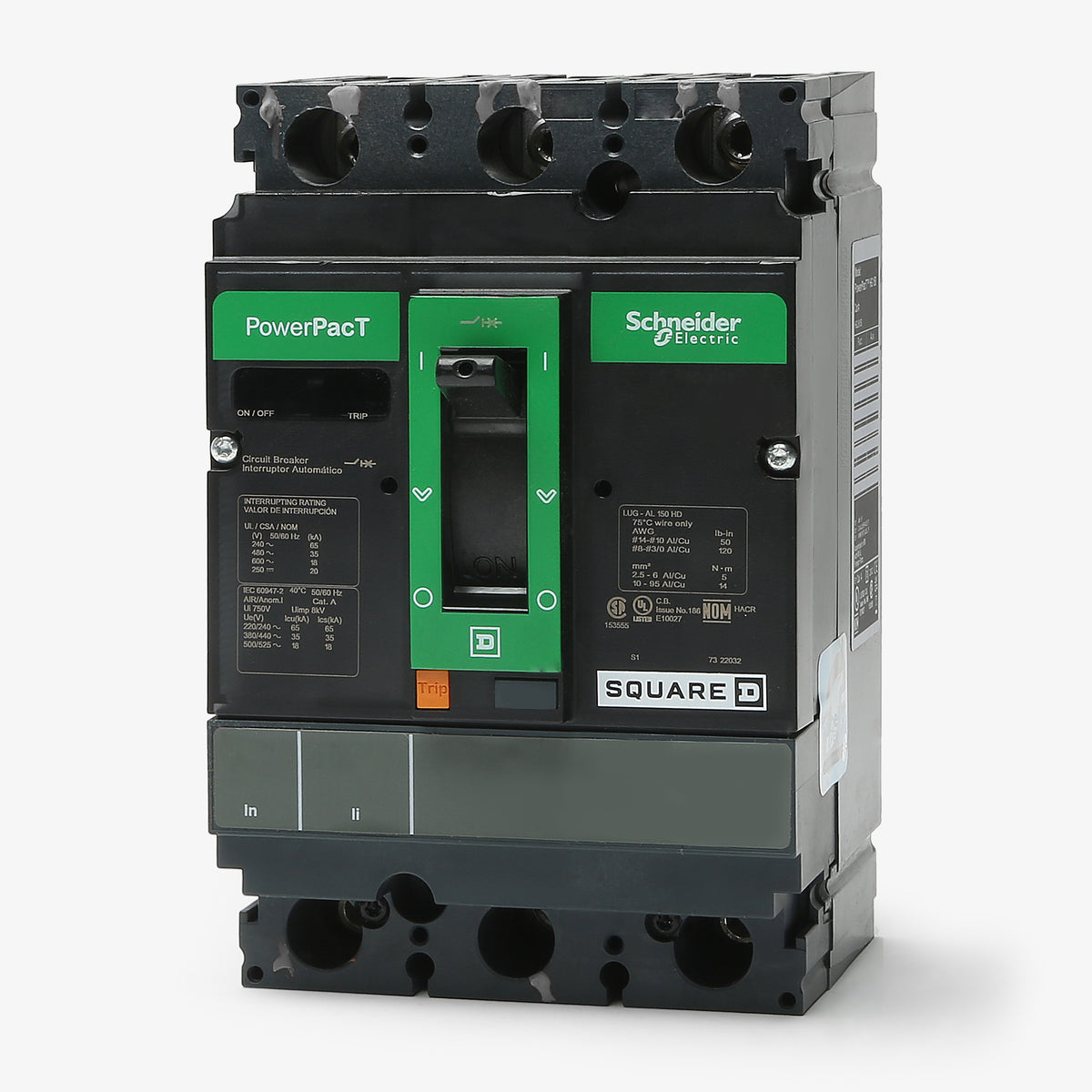

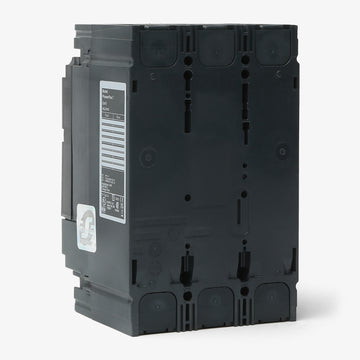

Square D HJL36125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Square D
HJL36125
Molded Case Circuit Breaker
Brand
Square D
SKU
HJL36125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HJL36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D HJL36125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36125 |
| Series | HJL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, RoHS Compliant, Mercury Free |
Quantity
Square D HJL36125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HJL36125-R |
| Series | HJL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, RoHS Compliant, Mercury Free |
Similar Items
150A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
A reliable choice for power distribution, the Square D HJL36125 is a 3-pole, 125A PowerPacT H-Frame MCCB. It delivers fixed thermal and magnetic protection for commercial facilities. Designed as a unit-mount breaker, it is equipped with line and load lugs to facilitate installation into switchboards and industrial control panels. It securely accepts 14 to 3/0 AWG wiring. The "J" interrupting rating provides 65kAIC at 480VAC and 100kAIC at 240VAC.Specifications
| Brand | Square D |
|---|---|
| Part Number | HJL36125 |
| Series | HJL |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC |
| Frame Type | HJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Industrial Control Panels, Switchboards, Motor Control Centers, PowerPacT H-Frame Enclosures |
| Wire Gauge | 14-3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Rotary Handle, Motor Operator, Padlock Attachment |
|---|---|
| Accessories | None included |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CCC, CE, CSA, IEC, NOM, UL, UKCA |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Current Limiting, Visual Trip Indicator, Reverse Feed, RoHS Compliant, Mercury Free |
Product FAQs
6 answersWhat size wire can be used with the standard lugs on this breaker?

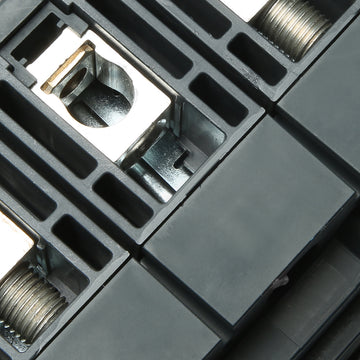

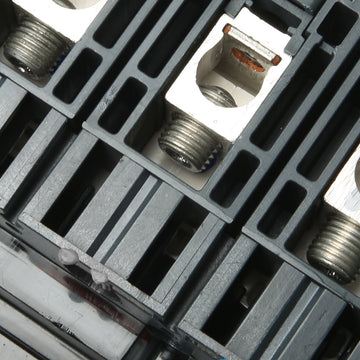

The HJL36125 comes standard with AL150HD lugs, which accept 14 AWG to 3/0 AWG aluminum or copper wire.
Is the HJL36125 suitable for reverse-fed applications?
Yes. Because this is a thermal-magnetic PowerPacT H-frame circuit breaker, it can be reverse fed, allowing power to be supplied to either the line or load terminals.
What is the difference between the HJL36125 and the HJA36125 circuit breakers?
The HJL36125 is a unit-mounted circuit breaker equipped with feed-thru lugs on both sides. The HJA36125 shares the same electrical specifications but features an I-Line style plug-in connection on the line side for use in I-Line panelboards.
What does the J in the HJL catalog number indicate?
In Square D PowerPacT nomenclature, the J specifies the interrupting capacity tier. For this frame size, it indicates maximum fault current interruption ratings of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC.
What is the purpose of the push-to-trip button on the front cover?
The push-to-trip button allows you to manually trip the circuit breaker. This is a safety feature used to verify that the internal mechanical tripping mechanism is operating correctly during routine maintenance.
Which panels or enclosures are compatible with the HJL36125?
This breaker is designed for unit-mount installation in industrial control panels, switchboards, motor control centers, and dedicated PowerPacT H-Frame enclosures. It will not fit in standard residential QO or Homeline load centers.
