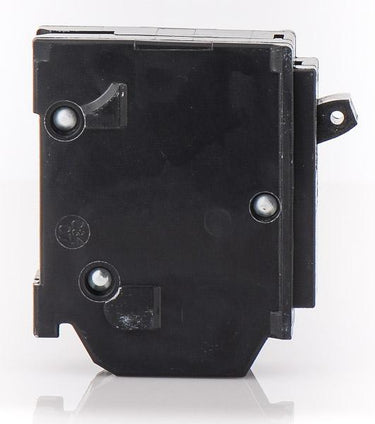

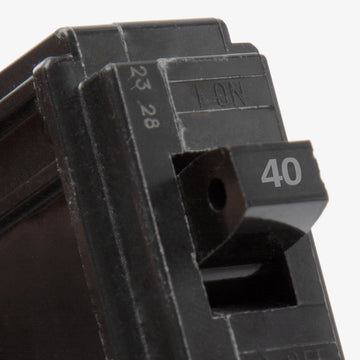

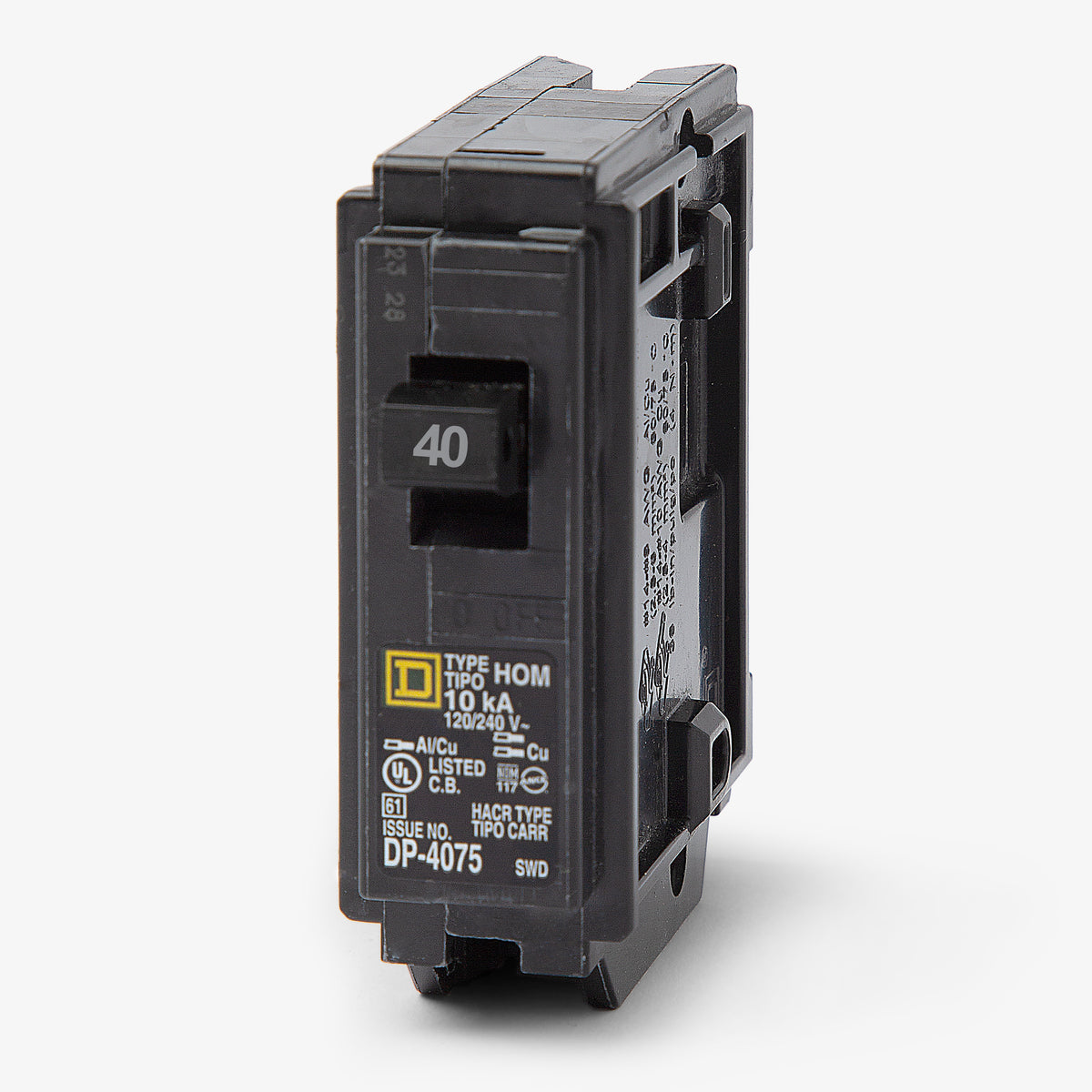

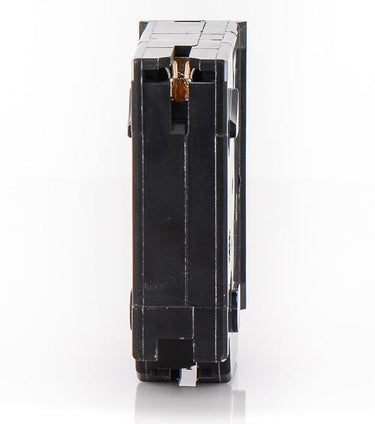

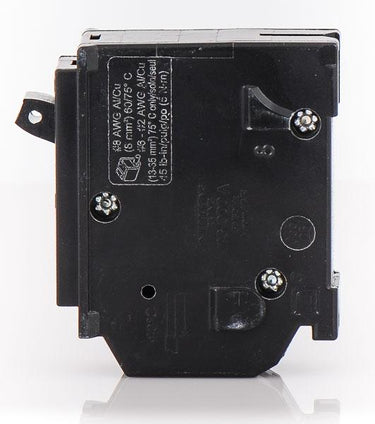

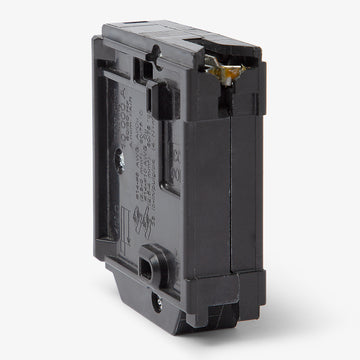

Square D HOM140 Miniature Circuit Breaker
- 40A
- 1 Pole

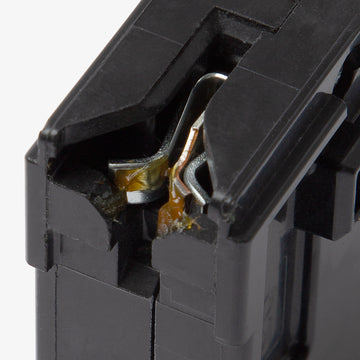

- Plug-On
Square D
HOM140
Miniature Circuit Breaker
Brand
Square D
SKU
HOM140
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM140 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM140 - 40A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM140 |
| Series | HOM |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM140 - 40A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM140-R |
| Series | HOM |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
30A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Part of the Homeline series, this 40A single-pole miniature circuit breaker provides essential overcurrent protection for residential electrical systems. It is commonly utilized for dedicated appliance circuits. This plug-on unit mounts seamlessly into Square D Homeline load centers, ensuring a secure connection. It accepts 8-2 AWG aluminum or copper wiring via standard box lugs. Featuring a 10kA interrupt rating, it carries an HACR designation for safe operation with heating and cooling loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM140 |
| Series | HOM |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
7 answersCan I install the HOM140 in a Square D QO load center?
No. Homeline (HOM) breakers feature a 1-inch format and are only compatible with Square D Homeline load centers and CSED devices. They will not fit onto the bus bars of a QO panel.
Is the HOM140 UL listed for use in competitor panels?
No. The HOM140 is UL listed exclusively for use in Square D Homeline load centers. Installing it in panels from other manufacturers violates the UL listing and compromises safety.
What is the terminal torque specification for the HOM140?
The box lug terminals on the HOM140 should be torqued to 40.7 lb-in (4.6 N.m) when using 8 to 2 AWG copper or aluminum wire.
How many panel spaces does the HOM140 require?
As a standard 1-pole Homeline breaker, the HOM140 requires one full 1-inch space in the load center.
What is the difference between the HOM140 and HOM140CP?
There is no functional or physical difference between the two. The HOM140CP is simply a packaging variant (often retail blister pack or bulk barcoded) of the standard HOM140 circuit breaker.
Is the HOM140 suitable for HVAC applications?
Yes, the HOM140 is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment that requires a 40A, 120V supply.
What are typical applications for a 40A 1-pole breaker?
A 40A 1-pole breaker provides 120V power and is typically used for dedicated high-draw 120V circuits, such as specialized lighting loads, specific RV receptacles, or heavy-duty 120V equipment.
