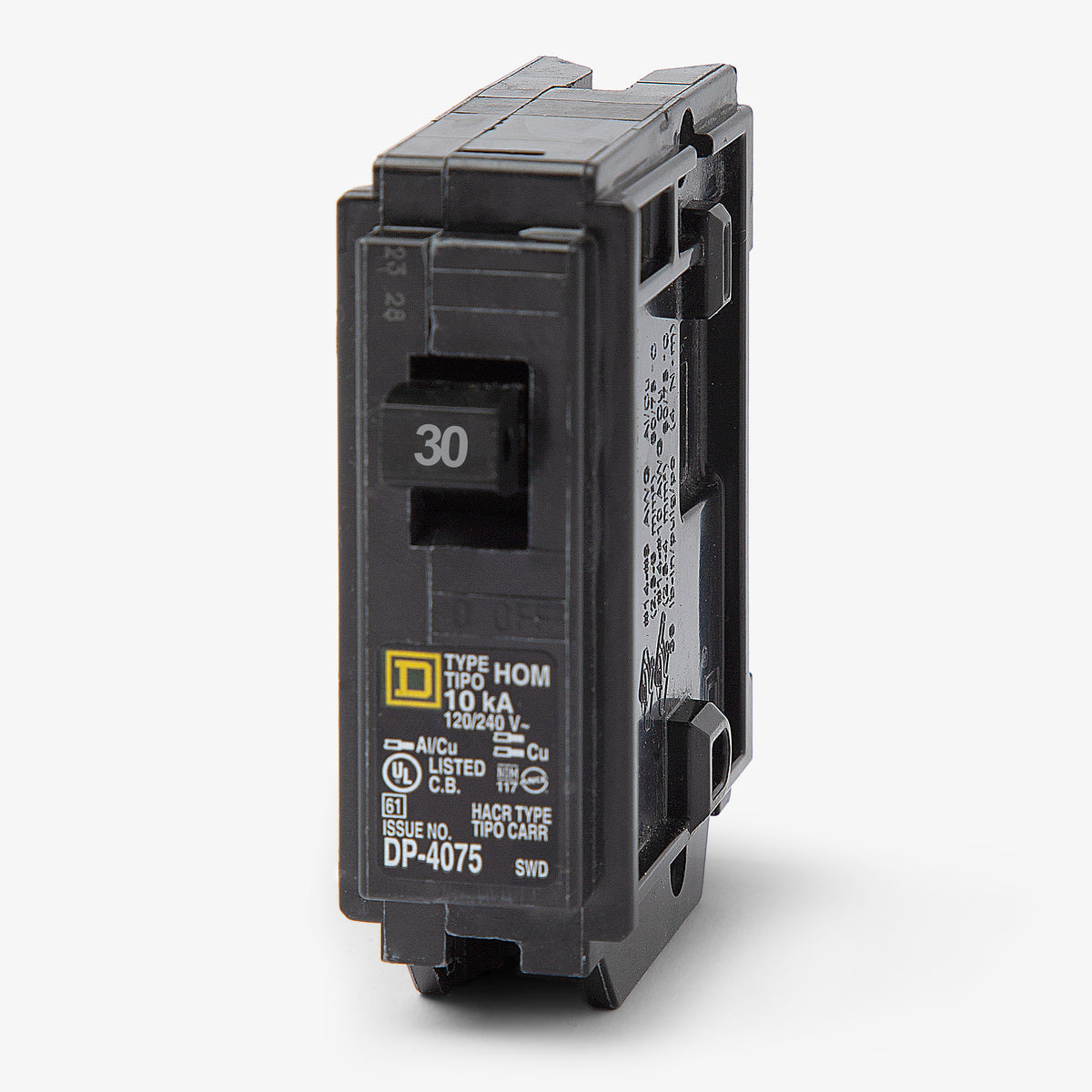

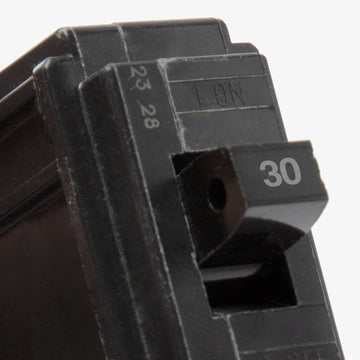

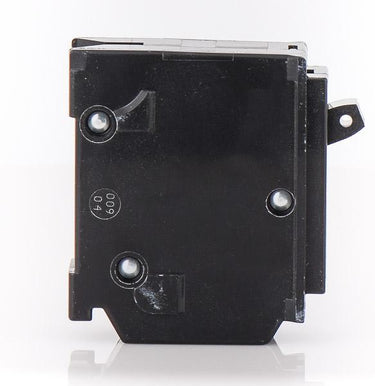

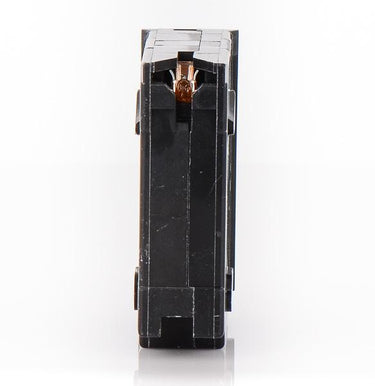

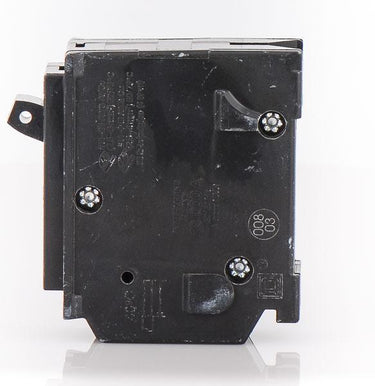

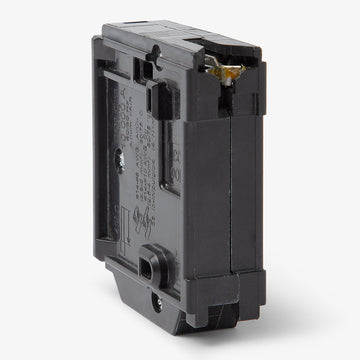

Square D HOM130 Miniature Circuit Breaker
- 30A
- 1 Pole

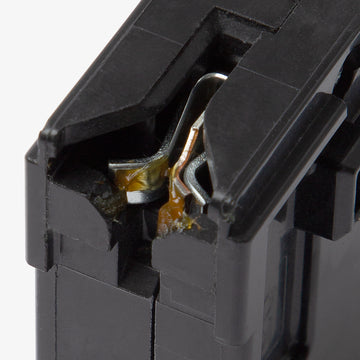

- Plug-On
Square D
HOM130
Miniature Circuit Breaker
Brand
Square D
SKU
HOM130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM130 - 30A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM130 |
| Series | HOM |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Square D HOM130 - 30A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM130-R |
| Series | HOM |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
40A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
15A 1 Pole Miniature Circuit Breaker
Description
Built to handle 30-amp loads, the Square D HOM130 delivers dependable overload and short-circuit protection. This single-pole miniature circuit breaker operates at 120/240VAC, making it an essential component for residential power management. Designed exclusively for Square D Homeline load centers, this plug-on unit ensures a secure installation. Rated at 10kAIC, this breaker is fully HACR rated for HVAC systems and serves as a direct equivalent to the CL130.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM130 |
| Series | HOM |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
8 answersCan I install the HOM130 in a Square D QO load center?
No, the HOM130 is exclusively designed for Square D Homeline load centers. It will not fit or function in QO series panels, which use a different bus bar design.
Is the HOM130 compatible with panels from other manufacturers like Siemens or Eaton?
No, this breaker is UL listed only for use in Square D Homeline load centers and CSEDs (Combined Service Entrance Devices). Using it in other brands violates its UL listing.
What is the recommended terminal torque for the HOM130 circuit breaker?
The screw clamp terminal on the HOM130 requires a tightening torque of 35.4 lb-in (4.0 N.m) for a secure connection.
Can I connect two wires to the HOM130 terminal?
Yes, the clamp terminal is rated to accept two copper wires ranging from 14 AWG to 10 AWG. If using aluminum wire, it only accepts a single conductor ranging from 14 AWG to 8 AWG.
Is the Square D HOM130 HACR rated for HVAC equipment?
Yes, the HOM130 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific breaker designation.
Is the HOM130 SWD (Switching Duty) rated for fluorescent lighting?
No, the HOM130 is not SWD rated. Switching Duty ratings are typically only applied to 15A and 20A circuit breakers, such as the HOM115 and HOM120.
What is the difference between the HOM130 and the HOM130CP?
There is no functional difference. The HOM130CP is simply the retail or bulk-packaged version of the standard HOM130 circuit breaker. Both share the exact same electrical specifications.
Does the HOM130 provide GFCI or AFCI protection?
No, the HOM130 is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include Ground Fault (GFCI) or Arc Fault (AFCI) capabilities.
