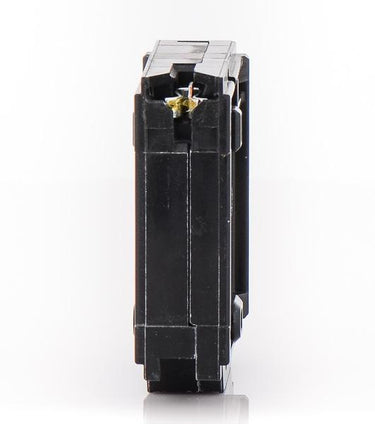

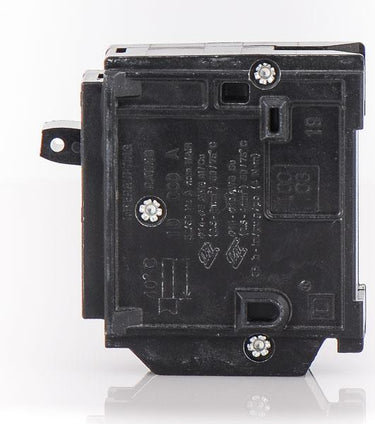

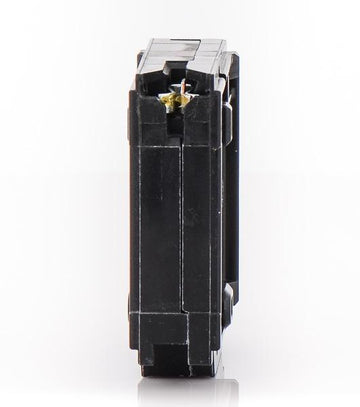

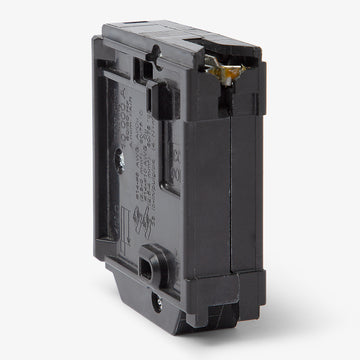

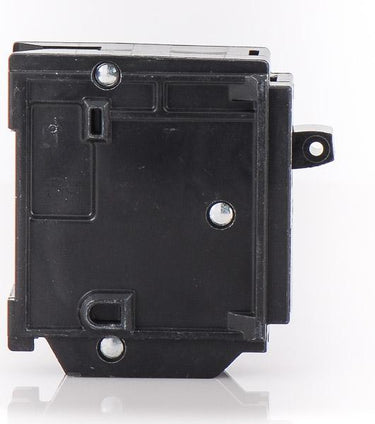

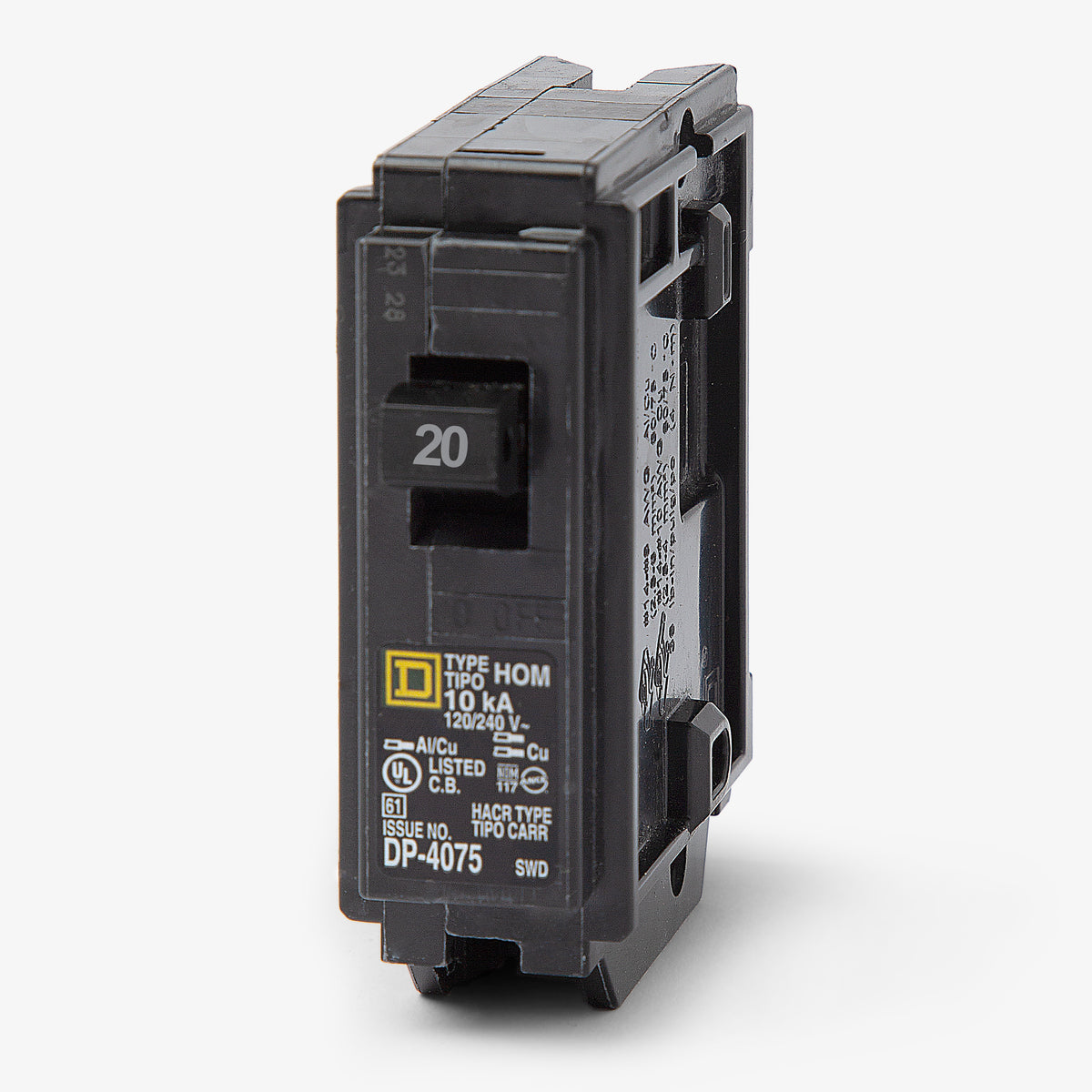

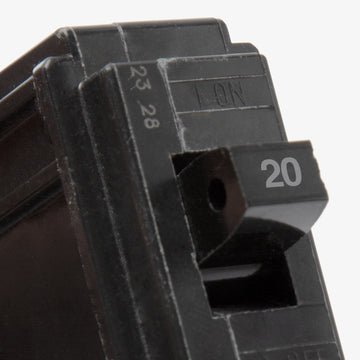

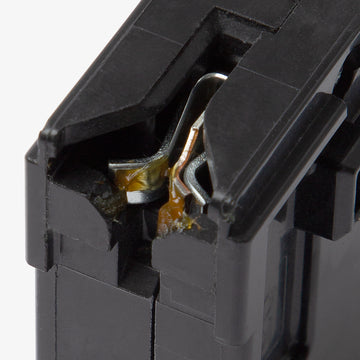

Square D HOM120 Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Square D
HOM120
Miniature Circuit Breaker
Brand
Square D
SKU
HOM120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM120 |
| Series | HOM |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, RoHS, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Sold out
Quantity
Square D HOM120 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM120-R |
| Series | HOM |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, RoHS, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Similar Items
15A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Providing robust overcurrent protection for 20-amp residential circuits, this single-pole unit serves as a staple for general receptacle wiring. It utilizes proven thermal-magnetic trip technology. The plug-on configuration mounts easily into Square D Homeline load centers, occupying a single one-inch space. It features screw terminals that accommodate 14-8 AWG wire sizes. Rated for 10kAIC at 120/240VAC, it carries both HACR and SWD classifications for HVAC and fluorescent lighting loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM120 |
| Series | HOM |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Screw/Clamp Terminal |
| For Use With | Homeline Load Centers |
| Wire Gauge | 14-8 AWG (Al/Cu), (2) 14-10 AWG (Cu) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, HACR, RoHS, SWD, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
6 answersCan I install a Homeline HOM120 breaker in a Square D QO load center?
No, Homeline (HOM) and QO series breakers are not interchangeable. The HOM120 is a 1-inch wide plug-on breaker designed exclusively for Homeline load centers, whereas QO breakers feature a 3/4-inch format and a different busbar connection.
Is the HOM120 circuit breaker HACR and SWD rated?
Yes. The HOM120 carries an SWD (Switching Duty) rating, making it suitable for switching 120VAC fluorescent lighting loads. It also carries an HACR rating for use with compatible heating, air conditioning, and refrigeration equipment.
Can I terminate two wires to the HOM120 breaker lug?
Yes, the terminal is listed to accept two 14 to 10 AWG copper conductors. If you are using aluminum wire, the lug only accepts a single 14 to 8 AWG conductor.
What is the difference between the HOM120 and HOM120CP catalog numbers?
The HOM120 and HOM120CP are the exact same circuit breaker. The "CP" suffix simply designates a commercial blister pack or contractor packaging intended for retail distribution.
How much panel space does the HOM120 require?
As a standard format Homeline breaker, the HOM120 occupies a single 1-inch space on the panel bus. It is not a tandem or half-size breaker.
Is the HOM120 an AFCI or GFCI breaker?
No, the HOM120 provides standard thermal-magnetic overcurrent and short-circuit protection only. It does not provide arc-fault (AFCI) or ground-fault (GFCI) protection.
