Square D HOM2150 Miniature Circuit Breaker
- 150A
- 2 Pole
- Plug-On
Square D
HOM2150
Miniature Circuit Breaker
Brand
Square D
SKU
HOM2150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

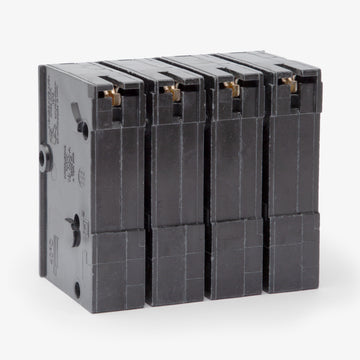

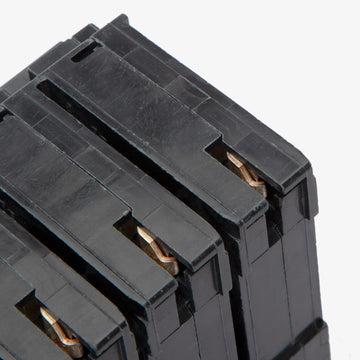

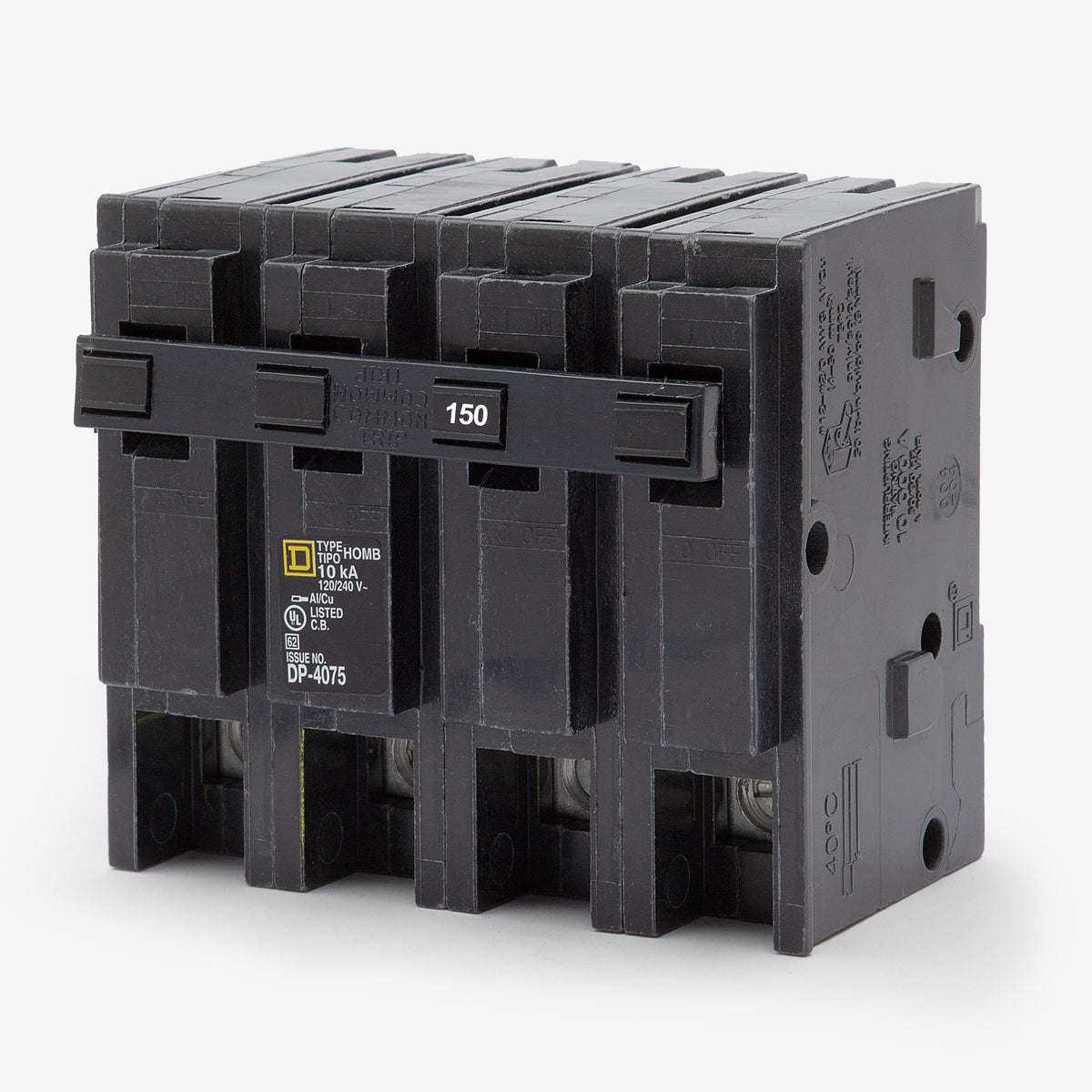

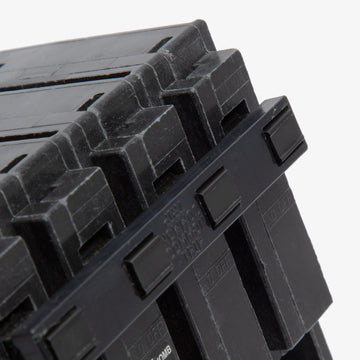

Square D HOM2150 - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Square D HOM2150 - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | HOM2150 |
| Series | HOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers (Main Breaker, Series 1 & 2) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Main Breaker, Requires 4 Spaces |
Quantity
Square D HOM2150 - 150A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | HOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers (Main Breaker, Series 1 & 2) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Main Breaker, Requires 4 Spaces |
Similar Items
175A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
200A 2 Pole Miniature Circuit Breaker
Description
Functioning as a robust 150A main breaker, this two-pole unit secures primary residential power distribution for whole-home electrical systems. It requires four spaces within compatible Square D Homeline Series 1 and 2 load centers, utilizing secure box lug terminals that accept 4 AWG to 300 kcmil wiring. Rated for 10kAIC at 120/240VAC, the thermal-magnetic design ensures dependable long-time and instantaneous trip protection. This HACR-rated component meets stringent UL 489 safety standards.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM2150 |
| Series | HOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers (Main Breaker, Series 1 & 2) |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Main Breaker, Requires 4 Spaces |
Product FAQs
6 answersWhat load centers accept the HOM2150 circuit breaker?
The HOM2150 is designed exclusively for Square D Homeline load centers, specifically Series 1 and 2. It will not fit in Square D QO panels or load centers from other manufacturers.
Can the HOM2150 be used as a branch breaker?
No, this specific breaker is designed to function solely as a main breaker in compatible Homeline load centers. It is not intended for use as a branch circuit breaker.
How many panel spaces does the HOM2150 require?
Although it is a 2-pole breaker, the HOM2150 physically occupies four standard 1-inch spaces in a Homeline load center due to its high-amperage design.
Is the HOM2150 suitable for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-type circuit protection.
Does the HOM2150 provide arc fault or ground fault protection?
No, this is a standard thermal-magnetic breaker that provides protection against overloads and short circuits. It does not include AFCI or GFCI circuitry.
Are Homeline (HOM) and QO breakers interchangeable?
No, Square D Homeline and QO breakers have different physical mounting designs. The HOM2150 plug-on breaker cannot be installed in a QO load center.
