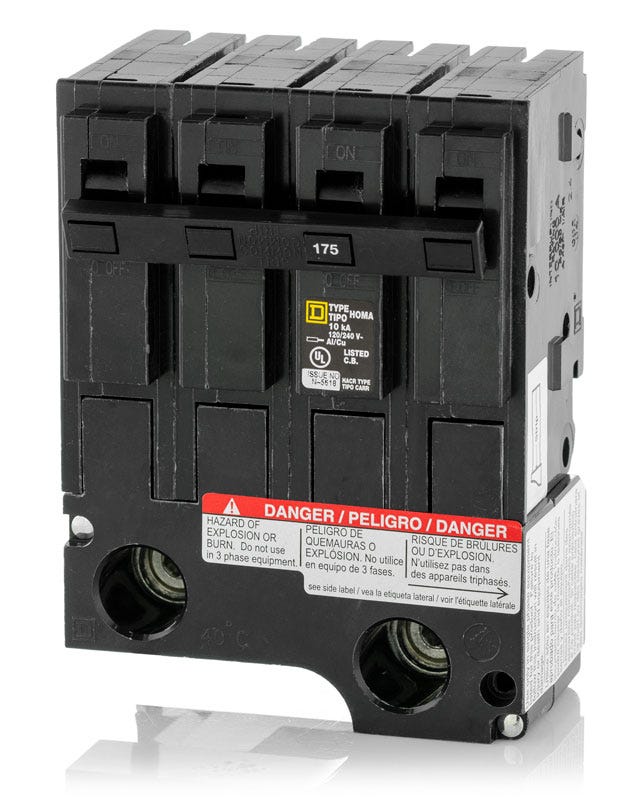

Square D HOM2175BB Miniature Circuit Breaker
- 175A
- 2 Pole
- Plug-On
Square D
HOM2175BB
Miniature Circuit Breaker
Brand
Square D
SKU
HOM2175BB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM2175BB - 175A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Miniature Circuit Breaker
150A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Part of the Homeline family, the HOM2175BB delivers 175 amps of reliable thermal-magnetic protection for residential and commercial branch circuits. This two-pole breaker mounts into standard Square D Homeline load centers, requiring four spaces for installation. It features an interrupting capacity of 10kAIC at 120/240VAC and comes equipped with load side box lugs that accept 4 AWG to 300 kcmil wire. The unit is HACR rated, ensuring safe operation for heating and air conditioning loads.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM2175BB |
| Series | HOM |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Takes 4 Load Center Spaces |
Product FAQs
6 answersHow many panel spaces does the Square D HOM2175BB require?
Although it is a 2-pole breaker, the HOM2175BB requires 4 standard 1-inch spaces in a Square D Homeline load center due to its physical width and high amperage rating.
Can I install the HOM2175BB in a Square D QO load center?
No. The HOM2175BB features a plug-on mounting design that is exclusively compatible with Square D Homeline load centers. It will not fit in Square D QO panels or load centers from other manufacturers.
Is the HOM2175BB suitable for heating and air conditioning loads?
Yes, this circuit breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
How does the thermal-magnetic trip unit protect the circuit?
The thermal-magnetic mechanism provides dual-level protection. The thermal element responds to sustained overloads by heating and tripping the breaker, while the magnetic element reacts instantaneously to severe short circuits.
What is the UPC for the Square D HOM2175BB?
The standard UPC for this Homeline 175A miniature circuit breaker is 785901264477.
What are the typical applications for a 175A Homeline breaker?
A 175A breaker like the HOM2175BB is frequently used as a main breaker, to feed a large subpanel, or to protect high-amperage branch circuits in residential and light commercial electrical systems.
