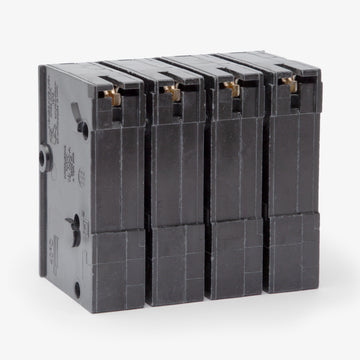

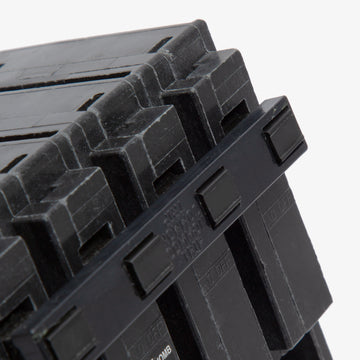

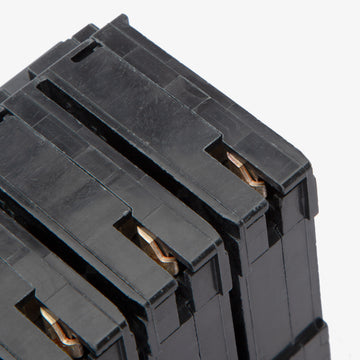

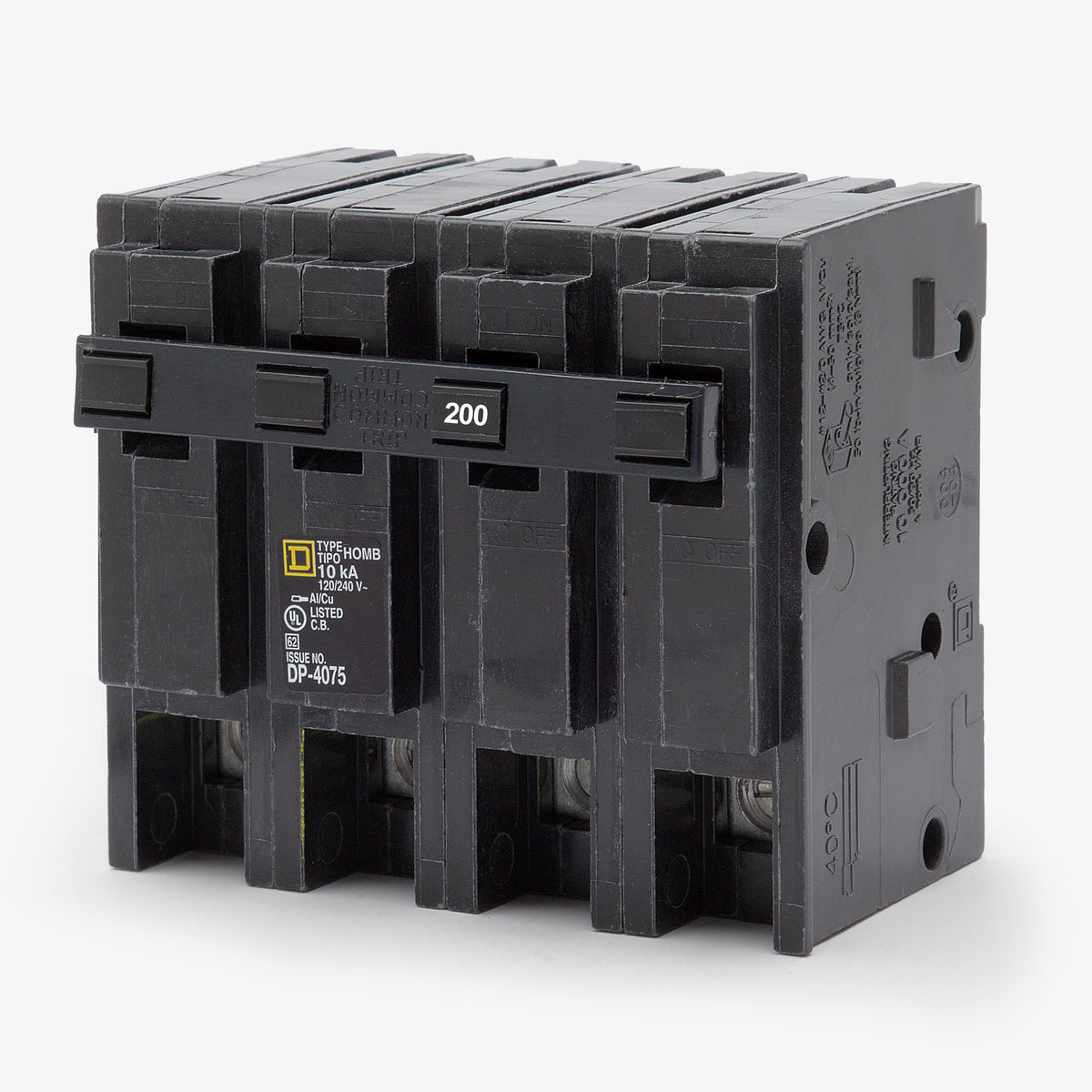

Square D HOM2200 Miniature Circuit Breaker
- 200A
- 2 Pole
- Plug-On
Square D
HOM2200
Miniature Circuit Breaker
Brand
Square D
SKU
HOM2200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D HOM2200 - 200A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
150A 2 Pole Miniature Circuit Breaker
150A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
Description
Serving as the primary disconnect for residential electrical systems, this 200-amp two-pole main breaker delivers robust thermal-magnetic protection. It handles the heavy incoming power demands of modern single-family homes. The device installs into Square D Homeline load centers and occupies four standard pole spaces. Its heavy-duty box lugs accommodate large-gauge service entrance conductors ranging from 4 AWG up to 300 kcmil. Rated for 10kAIC, it provides essential fault clearing.Specifications
| Brand | Square D |
|---|---|
| Part Number | HOM2200 |
| Series | HOM |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | HOM |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | HACR Rated, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Main Breaker, Requires 4 Spaces |
Product FAQs
4 answersWhat is the difference between the HOM2200 and the HOM2200BB?
The HOM2200 is designed exclusively as a main breaker for obsolete Series 1 and Series 2 Homeline load centers and CSEDs. The HOM2200BB is a branch breaker used in current Series S01 and S02 Homeline panels. They are not interchangeable.
Can I use the HOM2200 as a branch breaker to feed a subpanel?
No. The HOM2200 is specifically designed as a main breaker for older Series 1 and 2 Homeline panels. If you need a 200A branch breaker to feed a subpanel in a modern Homeline load center, you must use the HOM2200BB instead.
How many panel spaces does the HOM2200 require?
Although it is a 2-pole breaker, the HOM2200 requires four standard 1-inch spaces in a Homeline load center due to its larger frame size.
What is the recommended tightening torque for the HOM2200 box lugs?
The box lugs on the HOM2200 should be torqued to 42.5 lb-in (4.8 N.m) for conductors ranging from 4 AWG to 300 kcmil.
