Square D HOM2150BB Miniature Circuit Breaker
- 150A
- 2 Pole
- Plug-On
Square D
HOM2150BB
Miniature Circuit Breaker
Brand
Square D
SKU
HOM2150BB
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

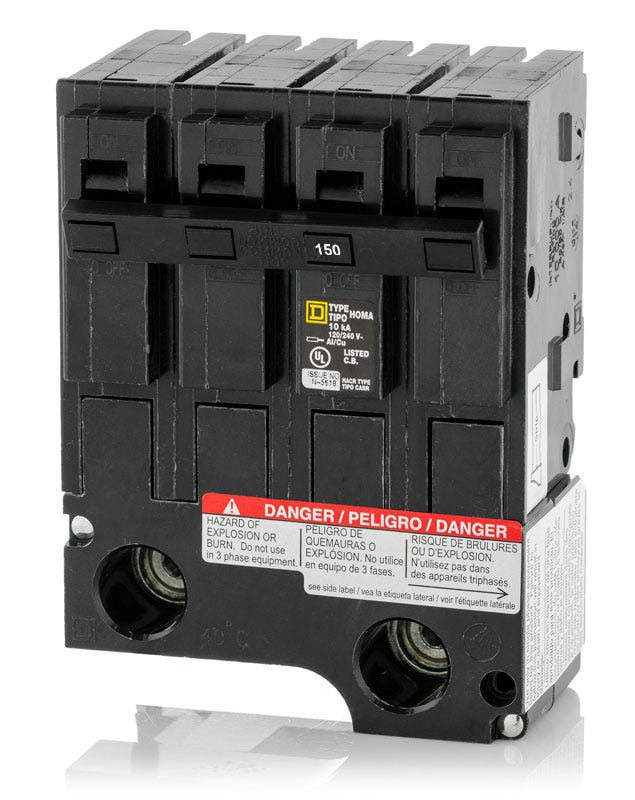

Square D HOM2150BB - 150A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
175A 2 Pole Miniature Circuit Breaker
125A 2 Pole Miniature Circuit Breaker
200A 2 Pole Miniature Circuit Breaker
Description
Installs into Square D Homeline load centers to provide high-capacity branch circuit protection. The HOM2150BB is a 150-amp, two-pole plug-on breaker that requires four panel spaces for mounting. It features a thermal-magnetic trip mechanism with a 10kAIC rating at 120/240VAC, making it ideal for feeding large subpanels or heavy residential loads. The breaker includes box lug terminals compatible with 4 AWG to 300 kcmil wire and is fully HACR rated for HVAC equipment applications.Specifications
| Brand | Square D |
|---|---|
| Series | HOM |
| Amperage | 150A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Square D Homeline Load Centers |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Requires 4 Spaces |
Product FAQs
5 answersHow many panel spaces does the HOM2150BB require?
Although it is a 2-pole breaker, it requires four 1-inch panel spaces for installation due to its larger 150-amp frame size.
What type of load center is compatible with this breaker?
It is designed exclusively for Square D Homeline load centers and CSED devices. The panel must be a single-phase unit rated for 150A or greater branch breakers.
Can the HOM2150BB be used to feed a subpanel?
Yes, this high-capacity branch breaker is commonly used to feed large subpanels or heavy residential loads, provided the main panel has four available spaces and is rated to accept a 150A branch breaker.
What is the tightening torque for the box lugs?
The terminal lugs require a tightening torque of 250.5 lb-in when using 4/0 AWG to 250 kcmil wire. Always verify the exact torque requirements printed on the breaker label for your specific wire gauge.
Is this breaker suitable for HVAC equipment?
Yes, the HOM2150BB is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration circuits.
