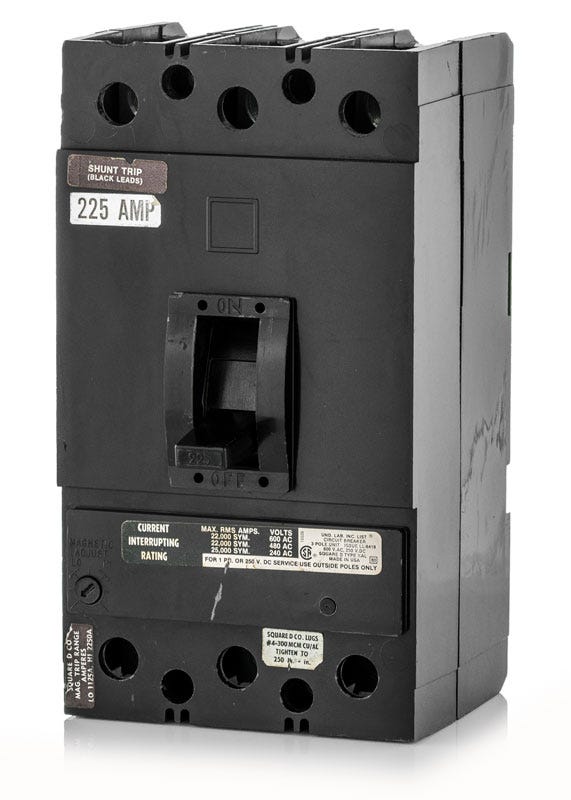

Square D KAL36225-1021 KAL362251021 - 225A 3 Pole Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
KAL36225-1021
KAL362251021 - 225A 3 Pole Molded Case Circuit Breaker
Brand
Square D
SKU
KAL36225-1021
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL362251021 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Square D KAL362251021 - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Series | KAL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Sold out
Quantity
Square D KAL362251021 - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | KAL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
KAL362001021 3 Pole Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, the Square D KAL36225-1021 is a 3-pole, 225A molded case circuit breaker from the legacy K-Frame family. This unit-mount breaker installs into Square D enclosures, switchboards, and motor control centers. It serves as an exact replacement for existing KAL installations, though it is officially replaced by the JGL36225. Rated for 42kAIC at 240VAC, this MCCB includes a factory-installed 120-240VAC shunt trip and a Visi-Trip indicator.Specifications
| Brand | Square D |
|---|---|
| Series | KAL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | KAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers, Industrial Control Panels |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Shunt Trip (120-240VAC) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs

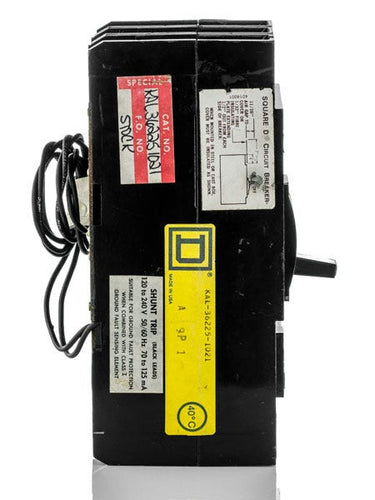

6 answersWhat does the -1021 suffix indicate on the KAL36225-1021?

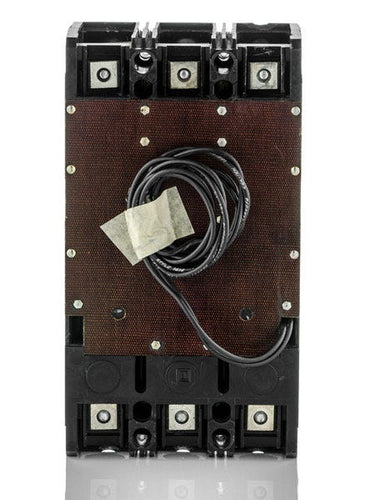

The -1021 suffix designates that this breaker comes with a factory-installed 120-240VAC shunt trip, allowing the breaker to be opened remotely via a control signal.
What is the direct modern replacement for the legacy KAL36225-1021?
The Square D PowerPact J-Frame JGL36225 is the modern equivalent. However, because the J-Frame has different dimensions, upgrading requires a retrofit kit, and the shunt trip must be ordered as a separate field-installable accessory.
Can I install the KAL36225-1021 in an I-Line panelboard?
No, the KAL36225-1021 is a unit-mount, feed-thru breaker designed for standard enclosures, switchboards, and motor control centers. For an I-Line plug-on connection, you would need the KA36225-1021 equivalent.
How does the trip adjustability work on this K-Frame breaker?
The KAL36225-1021 features a thermal-magnetic trip unit with a fixed thermal element for continuous overload protection at 225A, and an adjustable magnetic element that allows electricians to fine-tune the instantaneous short-circuit response.
Can the shunt trip on the KAL36225-1021 be removed or swapped in the field?
No, the 120-240VAC shunt trip indicated by the -1021 suffix is factory-installed inside the breaker housing and is not designed to be field-replaceable or modified.
How can I tell if the KAL36225-1021 has tripped?
When the breaker trips due to an overcurrent, short circuit, or a remote shunt trip signal, the handle moves to a center position to clearly indicate the tripped status.
