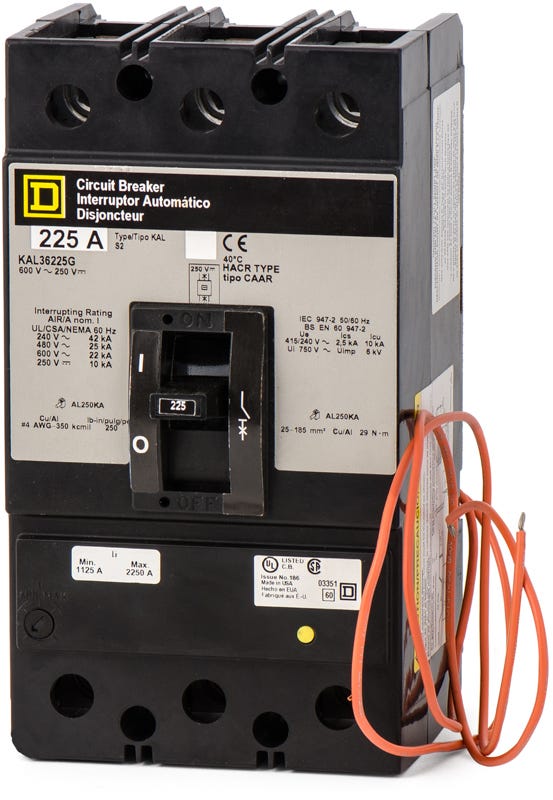

Square D KAL36225G Molded Case Circuit Breaker
- 225A
- 3 Pole
- Unit Mount
Square D
KAL36225G
Molded Case Circuit Breaker
Brand
Square D
SKU
KAL36225G
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D KAL36225G - 225A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
KAL362001021 3 Pole Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Providing specialized protection for industrial systems, the KAL36225G is a 3-pole, 225A molded case circuit breaker from the legacy K-Frame family. This unit installs into Square D QED switchboards, motor control centers, and standard enclosures. For facility upgrades, it is replaced by the modern PowerPact J-Frame series, specifically the JGL36225. Rated for 25kAIC at 480VAC, this specific model is equipped with a ground fault shunt trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | KAL36225G |
| Series | KAL |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 25kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D QED Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Ground Fault Shunt Trip |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat equipment is the KAL36225G circuit breaker designed to fit?
This unit-mount K-Frame breaker is compatible with Square D QED switchboards, motor control centers, and individual enclosures.
What wire size and material does the KAL36225G accept?
The included line and load side lugs accept 4 AWG to 350 kcmil aluminum or copper wire.
What is the adjustable magnetic trip range for this 225A breaker?
The instantaneous magnetic trip on the KAL36225G can be adjusted between 1125A and 2250A.
How is the trip unit configured on the KAL36225G?
The breaker utilizes a thermal magnetic trip system. The thermal overload protection is fixed at 225A, while the instantaneous magnetic short-circuit protection is adjustable to coordinate with downstream devices.
Is the KAL36225G still in active production, or is there a modern replacement?
The KAL series is a legacy K-Frame component. For new installations or direct upgrades, Square D functionally replaces it with the modern PowerPact J-Frame series, specifically catalog number JGL36225.
