Square D LX36400G - 400A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU LX36400G
5.0
Rated 5.0 out of 5 stars
1 Review
Free Shipping Over $99

Square D LX36400G - 400A 3 Pole Molded Case Circuit Breaker

Brand Square D
SKU LX36400G
5.0
Rated 5.0 out of 5 stars
1 Review
Select Item Condition
Earn 3499 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Square D LX36400G - 400A 3 Pole Molded Case Circuit Breaker

Re-Certified

$3499.98 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

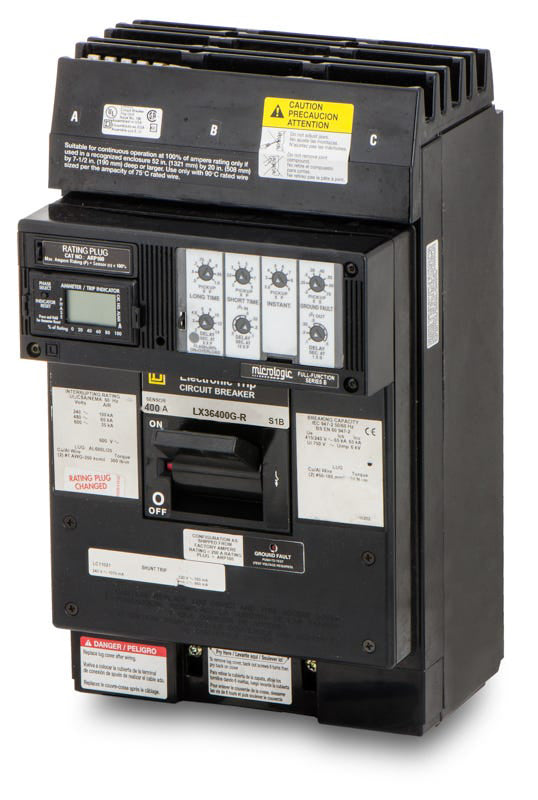

Built for advanced coordination, this 400A electronic trip breaker incorporates LSIG functions to safeguard against ground faults, overloads, and short circuits. The device secures into Square D I-Line panelboards, featuring a specialized plug-on jaw design for the line side. Equipped with a highly configurable Micrologic trip unit, it ensures reliable solid-state protection. For modern upgrades, this legacy frame is replaced by the LJA36400U44X along with an HNM1BL filler plate.

Specifications

Brand Square D
Series LX
Part Number LX36400G
Amperage 400A
Amperage Range 200-400A
Voltage 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 35kA @ 600Y/347VAC, 35kA @ 600VAC
Mounting Style I-Line
Terminal Type Lugs
For Use With Square D I-Line Panelboards and Switchboards
Trip Technology Electronic Trip
Trip Function Code LSIG
Trip Function Long-Time, Short-Time, Instantaneous, Ground Fault
Trip Adjustability Adjustable
Wire Gauge (1) 1 AWG-600 kcmil or (2) 1 AWG-250 kcmil (Al/Cu)
Max Wire 600 kcmil
Min Wire 1 AWG
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Load Side Lugs Included, Line Side Panel Connectors
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489
Approval CE, CSA, IEC, NOM, UL
Temp Rating 40C
