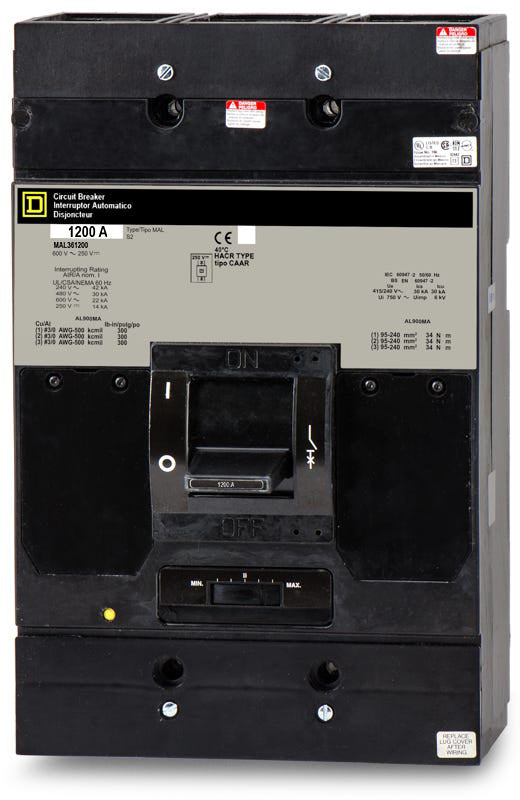

Square D MAL361200 Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Unit Mount
Square D
MAL361200
Molded Case Circuit Breaker
Brand
Square D
SKU
MAL361200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D MAL361200 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D MAL361200 - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | MAL361200 |
| Series | MAL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (4) 1/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL1000MA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D MAL361200 - 1200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Series | MAL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (4) 1/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL1000MA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
700A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
450A 3 Pole Molded Case Circuit Breaker
Description
Operating at up to 600VAC, the Square D MAL361200 is a 3-pole, 1200A molded case circuit breaker. It is equipped with a thermal-magnetic trip unit featuring fixed thermal and adjustable magnetic settings for precise LI protection. This unit mount breaker is engineered for installation within Square D switchboards and motor control centers. Delivering a 42kAIC interrupting rating at 240VAC, this legacy M-Frame MCCB provides robust safety. It is officially replaced by the PGL36120.Specifications
| Brand | Square D |
|---|---|
| Part Number | MAL361200 |
| Series | MAL |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 14kA @ 250VDC |
| Frame Type | MAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Switchboards, Motor Control Centers |
| Wire Gauge | (4) 1/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 1/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (AL1000MA) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
5 answersWhat is the modern replacement for the legacy MAL361200 circuit breaker?
The MAL361200 is a legacy M-Frame breaker. The official Square D replacement is the PowerPact P-Frame PGL36120, which matches the 1200A, 3-pole configuration.
What are the standard lug wire size requirements for the MAL361200?
This breaker uses AL1000MA lugs, which require four 1/0 AWG to 350 kcmil aluminum or copper conductors per phase.
What is the magnetic trip adjustment range for the MAL361200?
The adjustable magnetic trip unit on this breaker can be set between 6000A and 12000A. The thermal overload protection is fixed at 1200A.
Is the MAL361200 compatible with Square D I-Line panelboards?
No. The MAL361200 is a unit-mount, feed-thru circuit breaker designed for Square D switchboards and motor control centers. It does not have the plug-on jaws required for I-Line panelboards.
Does the MAL361200 provide ground fault protection?
No. The MAL361200 features a standard thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection only. It does not include integrated ground fault protection.
