Square D MGA36700 Molded Case Circuit Breaker
- 700A
- 3 Pole
- I-Line
Square D
MGA36700
Molded Case Circuit Breaker
Brand
Square D
SKU
MGA36700
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

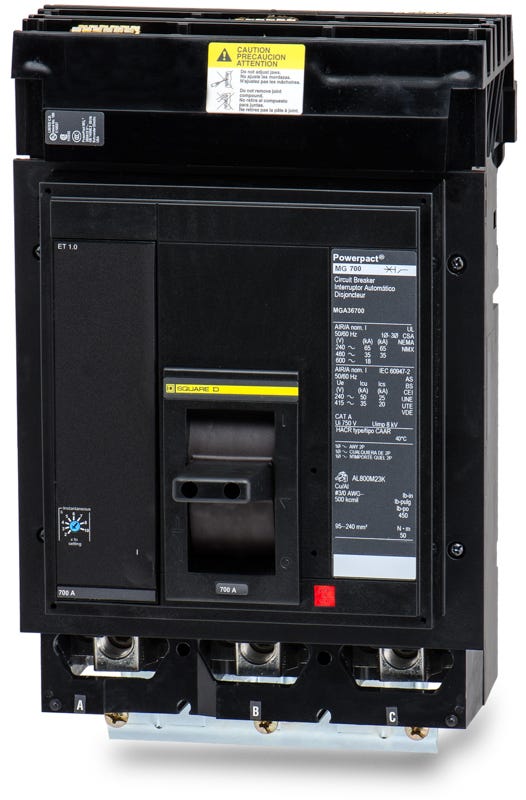

Square D MGA36700 - 700A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
600A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
450A 3 Pole Molded Case Circuit Breaker
Description
Delivering robust performance for commercial facilities, the Square D MGA36700 is a 700A, 3-pole electronic trip circuit breaker. It features an ET 1.0 microprocessor trip unit for precise long-time and instantaneous (LI) sensing. Designed with an I-Line plug-on connection, it installs into Square D I-Line panelboards and switchboards, functioning as a drop-in replacement for discontinued MA36700 breakers. It provides an interrupting capacity of 35 kAIC at 480VAC for reliable protection.Specifications
| Brand | Square D |
|---|---|
| Series | MGA |
| Amperage | 700A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC |
| Frame Type | MGA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards, Square D I-Line Switchboards |
| Wire Gauge | 3x 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Lugs (Load Side) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, Push-to-Trip, Visual Trip Indicator, 80% Rated |
Product FAQs
9 answersWhat panelboards are compatible with the MGA36700?
This breaker is designed exclusively for Square D I-Line panelboards and switchboards. It features an I-Line plug-on connection for the line side and mechanical lugs for the load side.
Can I use this to replace an older MA36700 breaker?
Yes, the PowerPacT M-frame MGA36700 is the direct manufacturer replacement for the legacy Square D MA36700 circuit breaker. It fits the same I-Line panelboard spaces and busbar configurations.
What does the G in the MGA36700 catalog number mean?
The G indicates the specific interrupting capacity tier for this PowerPacT M-frame breaker. It signifies a short-circuit rating of 65 kAIC at 240V, 35 kAIC at 480V, and 18 kAIC at 600V.
How is the line side connection made on this breaker?
The line side utilizes the Square D I-Line plug-on mounting system. The breaker jaws clamp directly onto the panelboard busbars, eliminating the need for line-side wire connections. The load side uses standard mechanical lugs.
What wire sizes are accepted by the load-side lugs?
The standard mechanical lugs on this breaker accept three 3/0 AWG to 500 kcmil aluminum or copper conductors per phase.
Is the MGA36700 rated for 100 percent continuous operation?
No, this breaker is standard rated for 80 percent continuous current. It is not designed for 100 percent continuous load applications.
What type of trip unit is installed in this breaker?
It features an ET 1.0 basic electronic trip unit. This provides fixed long-time and adjustable instantaneous protection, commonly referred to as an LI trip function.
Does this breaker require a specific phase connection?
Yes, this specific I-Line breaker is configured for a standard ABC phase connection to the panelboard busbars.
Does this breaker include a push-to-trip feature for testing?
Yes, PowerPacT M-frame breakers include an integral push-to-trip button on the front cover. This allows electricians to manually trip the breaker to verify the mechanical operation of the mechanism.
