Square D QBA32090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- I-Line
Square D
QBA32090
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA32090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

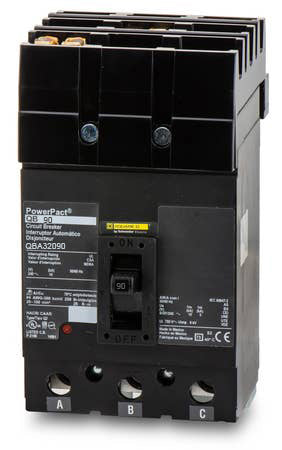

Square D QBA32090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
110A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial power distribution, the Square D QBA32090 is a 3-pole, 90A molded case circuit breaker from the PowerPacT Q-Frame family. It provides reliable thermal-magnetic protection with long-time and instantaneous (LI) trip functions. Designed for seamless integration, this breaker mounts into Square D I-Line panelboards and switchboards. It serves as a drop-in replacement for legacy Q23090 breakers, featuring a 10kAIC rating at 240VAC and Visi-Trip.Specifications
| Brand | Square D |
|---|---|
| Series | QBA |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG-300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhat legacy Square D circuit breaker does the QBA32090 replace?
The QBA32090 is the direct drop-in replacement for the obsolete Square D Q23090 circuit breaker. It maintains the same physical footprint and I-Line mounting configuration for seamless integration into existing systems.
Which panelboards are compatible with the QBA32090?
This breaker is equipped with an I-Line plug-on connection on the line side. It is exclusively designed for use in Square D I-Line panelboards and switchboards and cannot be used in standard QO or Homeline load centers.
How does the QBA32090 differ from QDA, QGA, and QJA models?
All of these PowerPacT Q-Frame breakers share the same physical dimensions and I-Line mounting style, but they offer different interrupting ratings. The QBA is rated for 10kAIC at 240VAC, while the QDA (25kAIC), QGA (65kAIC), and QJA (100kAIC) provide higher fault current protection.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the QBA32090 features a fixed thermal-magnetic trip unit. The long-time overload protection and instantaneous short-circuit protection settings are factory-calibrated and non-interchangeable.
How can I manually test the mechanical operation of the QBA32090?
The breaker features a push-to-trip button on the front face. Electricians can use this button to manually trip the breaker, verifying that the internal mechanical linkage is operating correctly during routine panel maintenance.
How are the load-side connections terminated on the QBA32090?
The line side uses the I-Line plug-on connection, while the load side is equipped with mechanical lugs. These lugs accept either aluminum or copper conductors ranging from 4 AWG to 300 kcmil.
