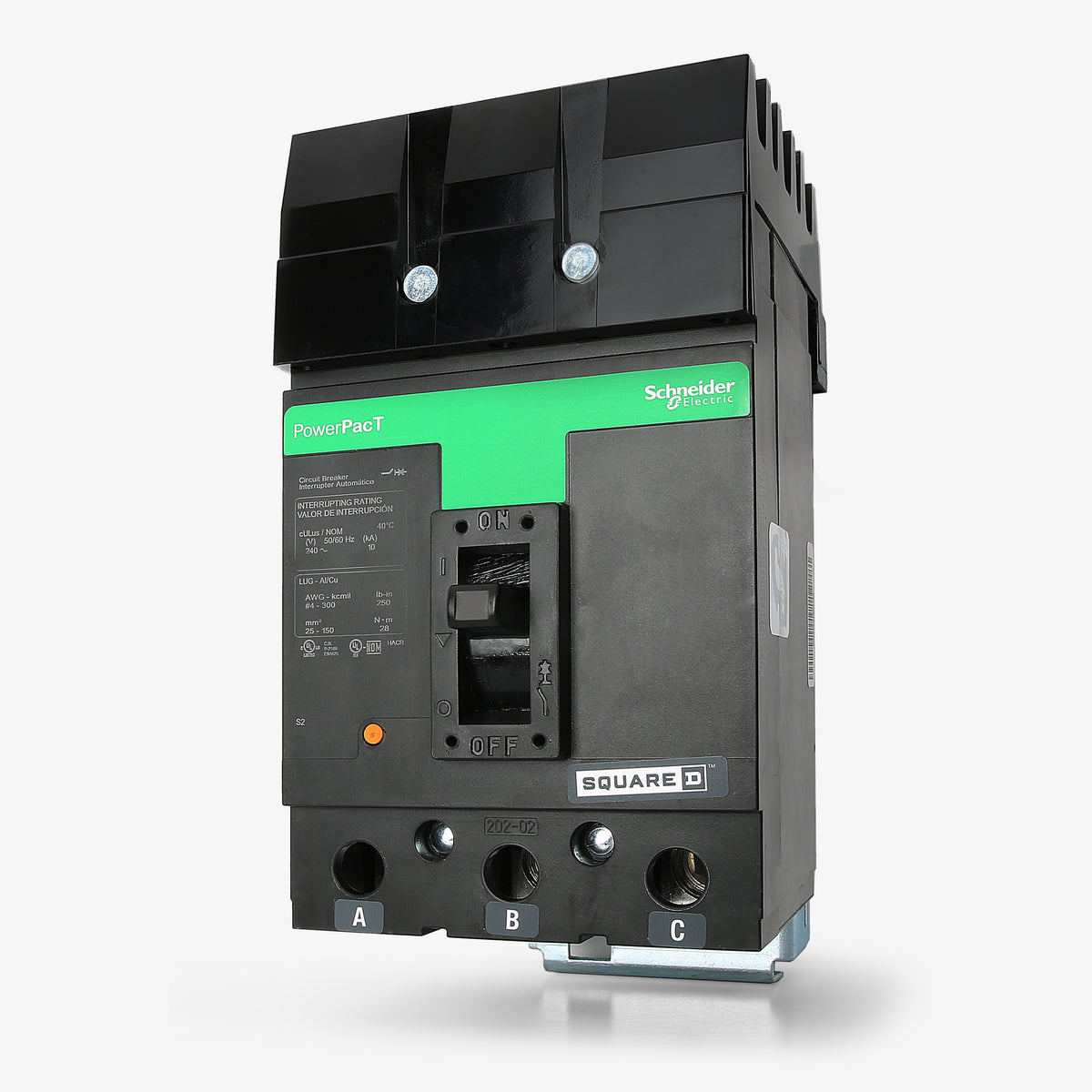

Square D QBA32100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- I-Line
Square D
QBA32100
Molded Case Circuit Breaker
Brand
Square D
SKU
QBA32100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D QBA32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D QBA32100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA32100 |
| Series | QBA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QBA32100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QBA32100-R |
| Series | QBA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Similar Items
90A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Built for robust electrical distribution, the Square D QBA32100 is a 100A, 3-pole molded case circuit breaker belonging to the PowerPacT Q-Frame series. It utilizes fixed thermal and magnetic trip units to deliver dependable long-time and instantaneous (LI) protection. This unit features an I-Line mounting style, allowing for efficient plug-on installation into Square D I-Line panelboards. Rated at 10kAIC at 240VAC, it also seamlessly replaces older Q23100 models in existing infrastructure.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBA32100 |
| Series | QBA |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBA |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D I-Line Panelboards and Switchboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhich panelboards are compatible with the QBA32100?

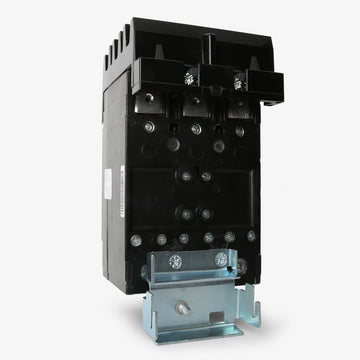

This breaker is designed specifically for Square D I-Line panelboards and switchboards. It features a plug-on I-Line line connection and load-side lugs, making it incompatible with standard unit-mount or load center enclosures.
Can the QBA32100 be installed in older legacy I-Line panelboards?
Yes. Schneider Electric designed the PowerPacT Q-frame breakers to be backward compatible. The QBA32100 can be safely installed in existing or older I-Line panelboards and switchboard distribution sections.
Which older Square D breaker does the QBA32100 replace?
The PowerPacT QBA32100 serves as a direct drop-in replacement for the obsolete Square D Q2 series circuit breakers, specifically replacing the legacy Q23100 I-Line model.
What are the specific magnetic trip thresholds for the QBA32100?
While the thermal and magnetic trip elements are fixed, they have specific factory calibration points. The magnetic hold current is 1200A, and the magnetic instantaneous trip current is 2400A.
What is the default phase configuration for the QBA32100 I-Line connection?
This breaker features a standard ABC phase jaw configuration for connection to the panelboard bus.
Is the QBA32100 rated for use on 480V systems?
No. The PowerPacT Q-frame series is rated for a maximum of 240VAC. It is strictly for low-voltage applications and is not suitable for 480V or 600V electrical systems.
How is the wiring terminated on this breaker?

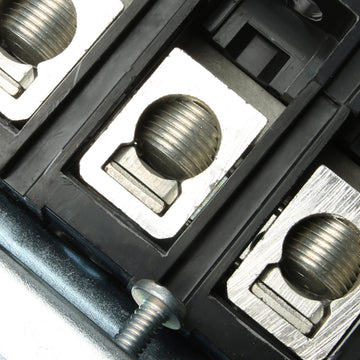

The load side features standard mechanical box lugs that accept 4 AWG to 300 kcmil copper or aluminum conductors. The line side utilizes the plug-on I-Line jaws, meaning no line-side cabling is required for installation.
