Square D QBP22070TM Molded Case Circuit Breaker
- 70A
- 2 Pole
- Unit Mount
Square D
QBP22070TM
Molded Case Circuit Breaker
Brand
Square D
SKU
QBP22070TM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

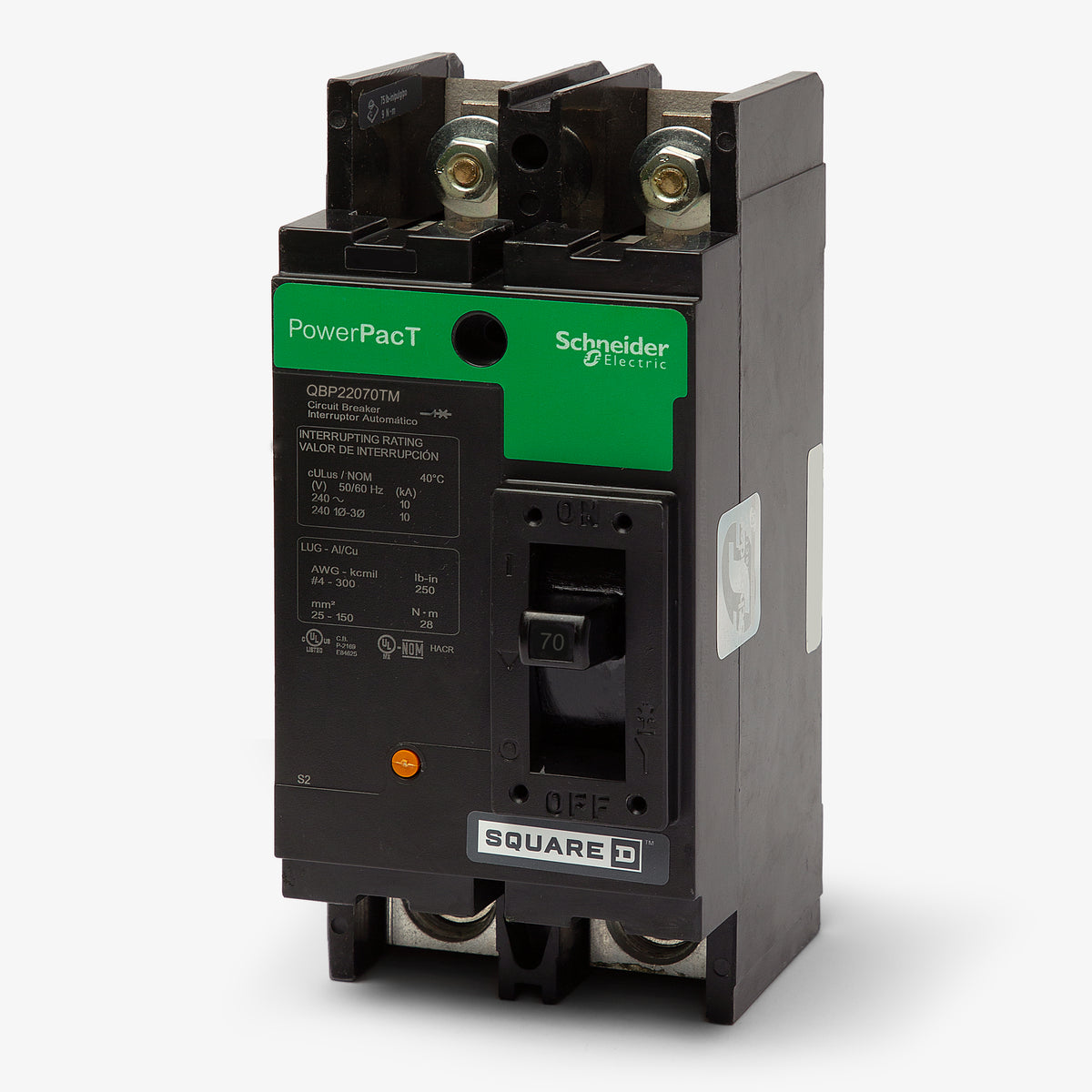

Square D QBP22070TM - 70A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
90A 2 Pole Molded Case Circuit Breaker
2 Pole Circuit Breaker
110A 2 Pole Molded Case Circuit Breaker
Description
Serving residential and commercial applications, the Square D QBP22070TM is a 2-pole, 70A molded case circuit breaker from the PowerPacT Q-Frame series. It delivers fixed thermal-magnetic protection with long-time and instantaneous trip functions. This unit mount breaker is specifically designed to fit Square D Meter-Pak and EZ Meter-Pak metering centers. Operating at 240VAC with a 10kAIC rating, it serves as an exact substitute for the legacy Q22070 and features Visi-Trip indication.Specifications
| Brand | Square D |
|---|---|
| Part Number | QBP22070TM |
| Series | QBP |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 208Y/120VAC, 240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 208Y/120VAC, 10kA @ 240VAC |
| Frame Type | QBP |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Square D Meter-Pak Metering Centers, EZ Meter-Pak Metering Equipment |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included, Mounting Hardware |
| Standards | CSA C22.2 No 5, HACR, IEC 60947-2, NEMA AB 1, NOM-003-SCFI-2000, UL 489 |
| Approval | CSA, IEC, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Quick-Make/Quick-Break, Trip-Free Mechanism, Common Trip, Non-Interchangeable Trip, 80% Rated |
Product FAQs
6 answersWhat equipment is the QBP22070TM compatible with?
This unit-mount circuit breaker is specifically designed for use in Square D Meter-Pak Metering Centers and EZ Meter-Pak Metering Equipment.
Can I install the QBP22070TM in an I-Line panelboard?
No. The QBP22070TM features a unit-mount, bolt-on connection. It is not compatible with I-Line panelboards, which require breakers with specialized plug-on I-Line connections.
What legacy circuit breaker does the QBP22070TM replace?
The QBP22070TM serves as an exact drop-in replacement for the discontinued Square D Q22070 circuit breaker.
What is the continuous current rating of the QBP22070TM?
This PowerPacT Q-frame circuit breaker has a standard continuous current rating of 80%.
How can I tell if the QBP22070TM has tripped?
This breaker features a Visi-Trip visual indicator, which provides clear, immediate identification of a tripped circuit breaker within the metering center.
Does the QBP22070TM include a manual testing mechanism?
Yes, it includes an integral push-to-trip button on the front cover, allowing licensed electricians to manually trip the breaker for maintenance and testing purposes.
